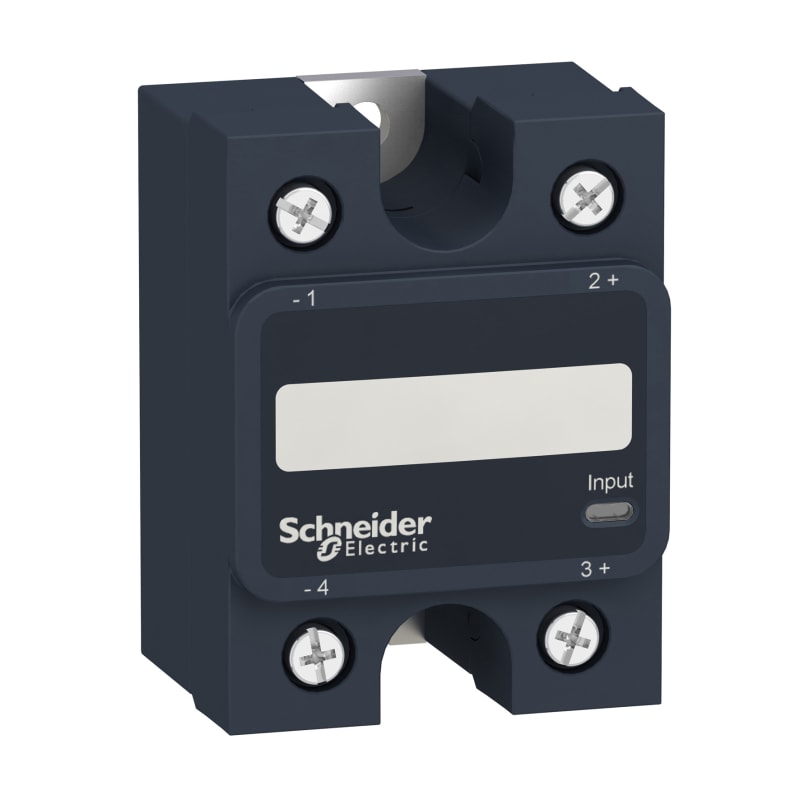

Schneider Electric solid state relay - panel mounting - input 90-280VAC, output 24-300VAC,25A SSP1A125M7

Schneider Electric SSP1A125M7 1p SSR - in 90-280AC, out 24-300AC, 25A.

Manufacturer part number (MPN)

SSP1A125M7 EAN / GTIN: 3606485441931 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Range of product: Harmony Solid State Relays Product or component type: Panel mount relay Device short name: SSP1 Mounting support: Panel Number of phases: 1 phase [In] rated current: 25 A Solid state output type: SCR output; Zero voltage switching Output switching mode: Zero voltage switching test button: Without test button [Uc] control circuit voltage: 90...280 V AC minimum switching voltage: 90 V AC turn-on Maximum switching voltage: 10 V AC turn-off Response time: 30 ms (turn-off); 25 ms (turn-on) Input current: 5…10 mA Output voltage: 24...300 V AC Load current: 0.15…25 A Transient overvoltage: 600 V Surge current: 250 A for 16.6 ms Maximum I²t for fusing: 259 A².s for 8.33 ms at 60 Hz; 285 A².s for 10 ms at 50 Hz Co-ordination type: Type 1 - 25 A miniature circuit breaker (MCB) - curve B; Type 2 - 20 A miniature circuit breaker (MCB) - curve B Maximum leakage current: 1 mA off-state Maximum voltage drop: <1.15 V on-state DV/dt: 500 V/µs off-state at maximum voltage Power factor: 0.5 (with maximum load) Motor controller rating: 0.5 hp 120 V AC; 1 hp 240 V AC Insulation resistance: 1000 MOhm at 500 V DC Maximum capacitance: 8 pF for input/output Dielectric strength: 4 kV AC for input/output; 4 kV AC for input or output to case [Uimp] rated impulse withstand voltage: 6 kV output to case; 6 kV input to output Tightening torque: 1.5...1.7 N.m for input; 2...2.2 N.m for output Connections - terminals: Screw terminals: 0.2...3.3 mm², (24 AWG...12 AWG) with cable end for input; Screw terminals: 0.5...5.26 mm², (20 AWG...10 AWG) with cable end for output; Screw terminals: 0.2...3.3 mm², (24 AWG...12 AWG) without cable end for input; Screw terminals: 0.5...8.26 mm², (20 AWG...8 AWG) without cable end for output; Forked type tag connectors: 9.2 x 4 mm for input; Ring lugs: 9.2 x 4 mm for input; Forked type tag connectors: 11.7 x 4.5 mm for output; Ring lugs: 11.7 x 4.5 mm for output Thermal resistance: 0.8 °C/W junction to case LED indicator: LED, green for input IP degree of protection: IP20 Safety reliability data: B10d = 1731395; MTTFd = 1875.9 years Product weight: 89.2 g Device presentation: Complete product Ambient air temperature for operation: -40…80 °C Ambient air temperature for storage: -40…125 °C Pollution degree: 2 Overvoltage category: III Product certifications: CE; CSA; UL; EAC Marking: CE; EAC; CSA; UL Standards: IEC 62314; UL 508; IEC 60950-1; CSA C22.2 No 14-13 Number of Units in Package 1: 1 Number of Units in Package 2: 30 Country of origin: MX Warranty (in months): 18

HS Code

8536.90

• EAN 3606485441931
• SAP 1200036648
• Code 81671770
