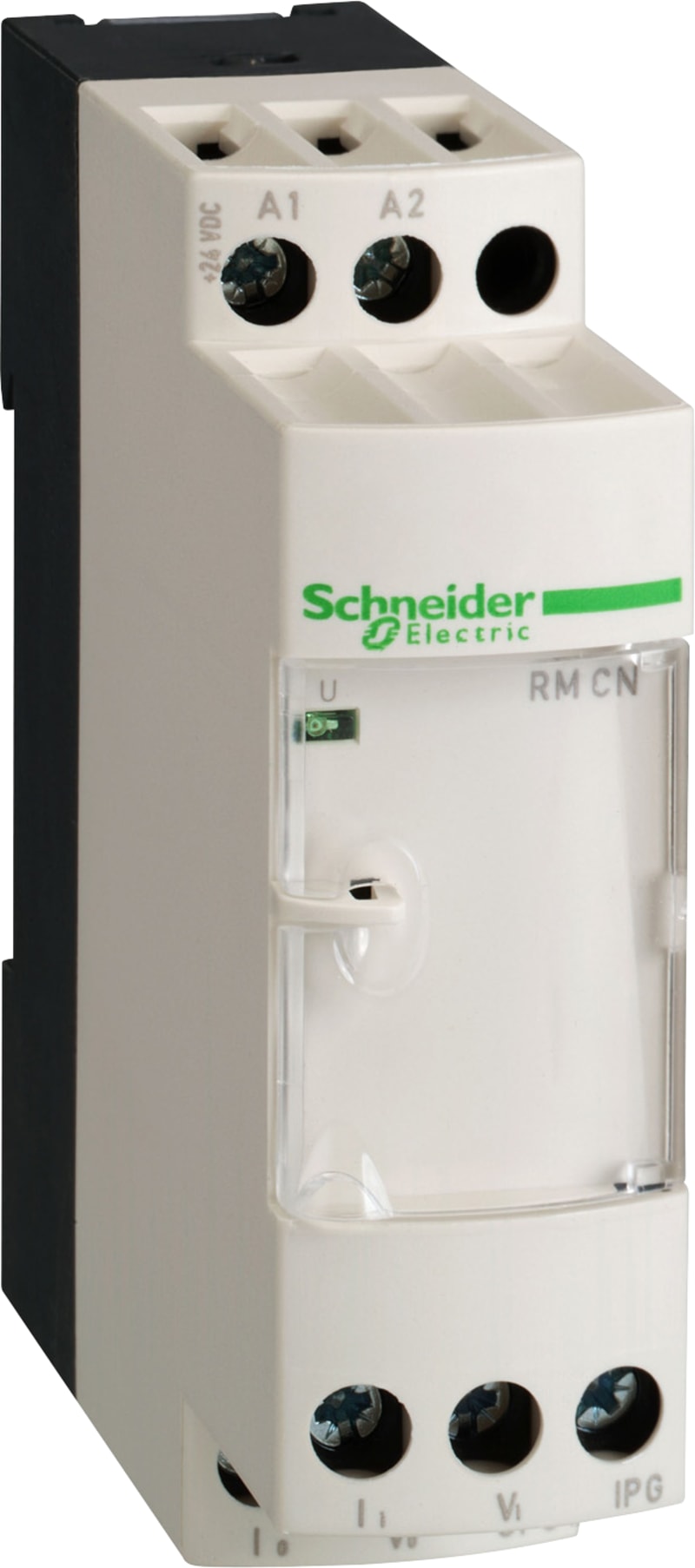

Schneider Electric RMCN22BD Converter In/V+mA- U/ mA+V.

Manufacturer part number (MPN)

RMCN22BD

EAN / GTIN

3389110108903

Sales unit

pcs

Package quantity

47 pcs

Range of product

Harmony Analog

Product or component type

Voltage/current converter

Analogue input type

Current 4...20 mA; Voltage 0...10 V DC

Analogue output type

Current 4...20 mA = 100 kOhm by cabling

Protection type

Short-circuit protection on output; Overvoltage protection on output (+/- 30 V); Reverse polarity protection on output

abnormal analogue output voltage

-15...0 V no input or input wire broken

abnormal analogue output current

4…30 mA no input or input wire broken

[Us] rated supply voltage

24 V DC +/- 20 %, non isolated

Current consumption

<= 40 mA for voltage output; <= 60 mA for current output

Local signalling

LED (green) for power ON

Tightening torque

0.6…1.1 N.m

Marking

CE

Surge withstand

0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5

[Ui] rated insulation voltage

2 kV

Fixing mode

By screws (mounting plate); Clip-on (35 mm symmetrical DIN rail)

Safety reliability data

MTTFd = 73.2 years; B10d = 67582

Product weight

0.12 kg

Standards

IEC 60584-1; IEC 60947-1

Product certifications

GL; CSA; UL

Fire resistance

850 °C conforming to IEC 60695-2-1; 850 °C conforming to UL

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 10…100 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

6 kV (in contact) conforming to IEC 61000-4-2 level 3; 8 kV (in air) conforming to IEC 61000-4-2 level 3

Resistance to fast transients

1 kV (on input-output) conforming to IEC 61000-4-4; 2 kV (on power supply) conforming to IEC 61000-4-4

Disturbance radiated/conducted

CISPR 22 group 1 - class B; CISPR 11

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…50 °C mounting side by side; 0…60 °C 2 cm spacing

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Country of origin

ID

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

0.02 A

Rated secondary current

0.02 A

Accuracy class

1

Overcurrent limiting factor

FS 10

Calibrated

Yes

With contact protection

Yes

Height opening

78 mm

Width opening

31 mm

Snap mounting

Yes

With copper rail

Yes

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8543.70
