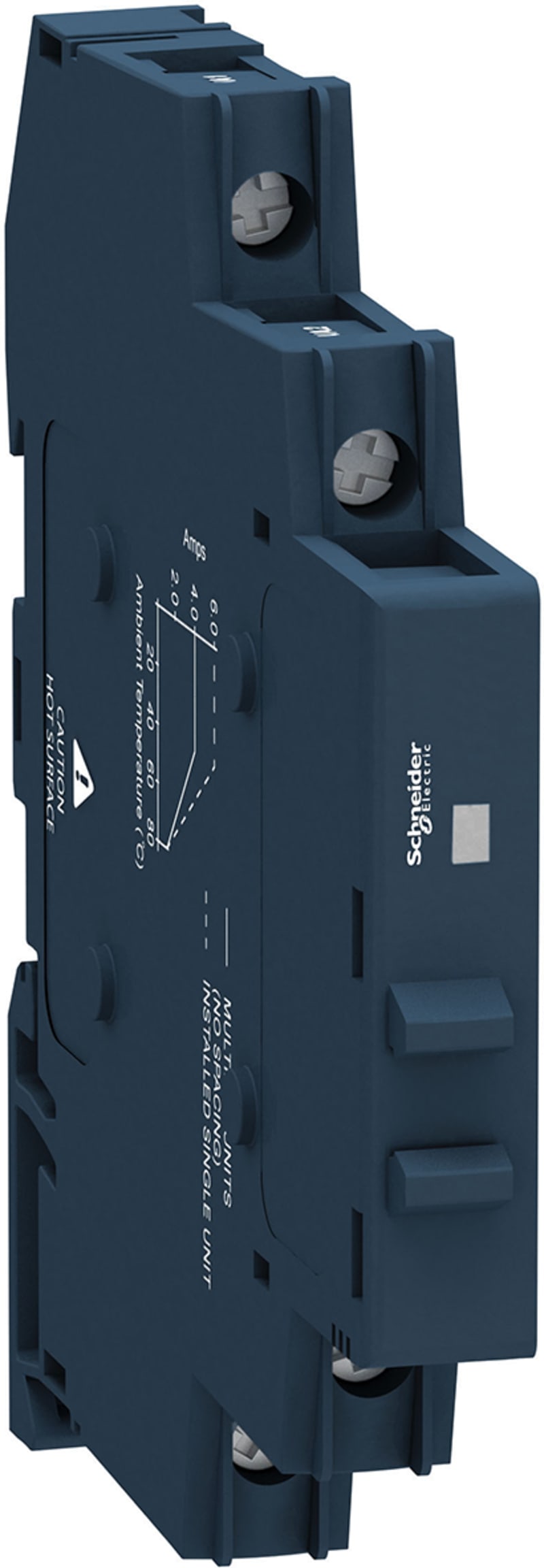

Schneider Electric Socket, 6 A, relay type SSL, screw connector, 5/24 V DC SSLZVA1

Schneider Electric SSLZVA1 Screw plinth 6 A 24VDC.

Manufacturer part number (MPN)

SSLZVA1

EAN / GTIN

3606480580123

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Solid State Relays

Device short name

SSLZ

Product or component type

Socket for SSL1

Product compatibility

Solid state relay SSL with NO contact at 24 V DC; Solid state relay SSL with NO contact at 5 V DC

[Ith] conventional free air thermal current

6 A

Switching voltage

5 V DC; 24 V DC

[Ue] rated operational voltage

< 250 V DC

Shape of pin

Flat

Contact terminal arrangement

Separate

Connections - terminals

Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) solid without cable end; Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end

Tightening torque

< 0.4 N.m for M2.5 screw(s)

Fixing mode

Clip-on (35 mm DIN rail)

Sale per indivisible quantity

10

Local signalling

LED (green) for input status

Width

6.2 mm

Height

96 mm

Depth

78.6 mm

Product weight

0.0285 kg

Standards

IEC 61984

Product certifications

CSA C22-2 No 14; UL 508

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20

Flame retardance

V0 conforming to UL 94

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

300

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Screw connection

Number of pins

8

HS Code

8536.69
