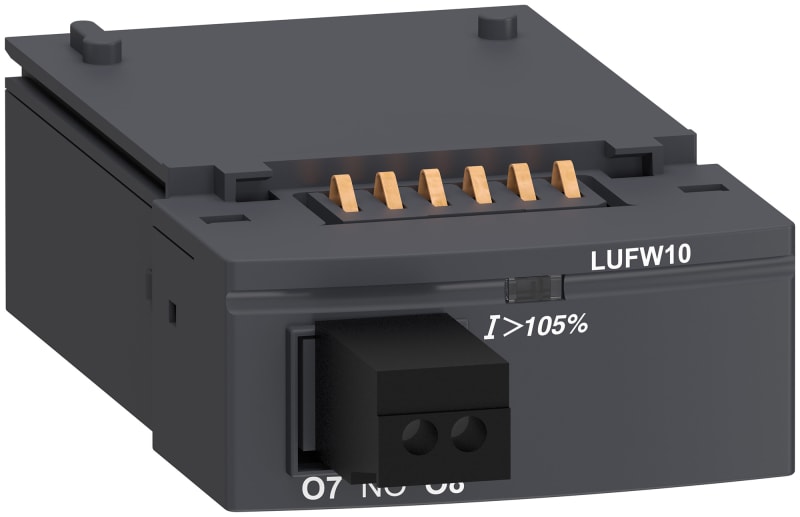

Schneider Electric TeSys U - LUF function block thermal overload alarm 1 NO LUFW10

Schneider Electric LUFW10 Alarm module MOD. U 1NO.

Manufacturer part number (MPN)

LUFW10

EAN / GTIN

3389110365511

Sales unit

pcs

Package quantity

36 pcs

Contact configuration

1 NO

Range

TeSys

Device short name

LUF

Product or component type

Function module

Product compatibility

LUCC; LUCB; LUCD

mounting mode

Plug-in

Mounting location

Front side

main function available

Thermal overload alarm

Auxiliary contact composition

1 NO

Communication of faults

LED front panel

Discrete output function

1 NO (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles; 1 NO (DC-13) at 24 V - power: 50 W - electrical service life: 100000 cycles

[Ith] conventional free air thermal current

2 A 70 °C

Short-circuit protection

2 A fuse gG conforming to IEC 60947-5-1

Connection pitch

5.08 mm

Connections - terminals

Screw clamp terminals 2 cable(s) 0.2…1 mm² rigid without cable end; Screw clamp terminals 2 cable(s) 0.25…1 mm² flexible with cable end; Screw clamp terminals 2 cable(s) 0.5…1 mm² flexible with cable end; Screw clamp terminals 1 cable(s) 0.2…1.5 mm² flexible without cable end; Screw clamp terminals 1 cable(s) 0.2…1.5 mm² rigid without cable end; Screw clamp terminals 1 cable(s) 0.25…1.5 mm² flexible with cable end; Screw clamp terminals 2 cable(s) 0.2…1 mm² flexible without cable end

Associated cable type

AWG24...AWG16

Tightening torque

0.5…0.6 N.m - with screwdriver 3.5 mm flat

Product weight

0.055 kg

Number of Units in Package 1

1

Number of Units in Package 2

20

Country of origin

FR

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8536.20
