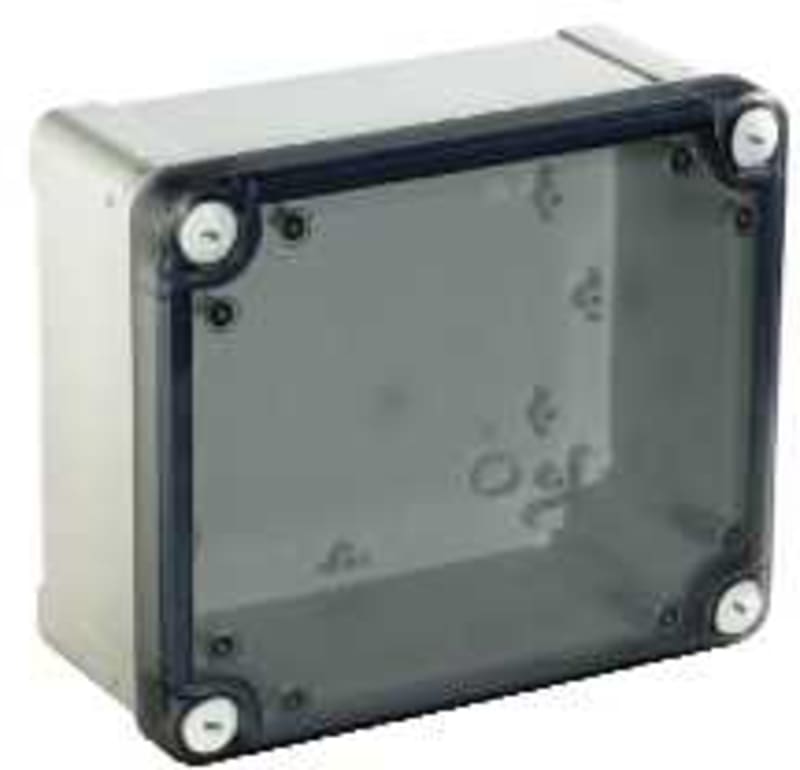

Schneider Electric PC box IP66 IK08 RAL7035 INT.H225W175D80 EXT.H241W194D87 Transparent cover H20 NSYTBP24198T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBP24198T 85132 Pc Box 241X194X87 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBP24198T
- EAN / GTIN
- 3606480165849
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Dimensions
- 241×194×87
- Range
- PanelSeT
- Product name
- PanelSeT TBP
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 241 mm
- Width
- 194 mm
- Depth
- 87 mm
- Internal height
- 225 mm
- Internal width
- 175 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- Low transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Polycarbonate
- Colour
- Grey (RAL 7035); Transparent
- Standards
- UL 508 A; IEC 62208
- Product certifications
- TÜV; UL
- Electrical insulation class
- Class II
- Mounting location
- Outdoor (with canopy or shelter and anticondensation valve)
- Product weight
- 0.64 kg
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK08 conforming to IEC 62262
- Fire resistance
- 960 °C
- Ambient air temperature for storage
- -15…60 °C
- Operating temperature
- -25…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 144
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480165849
- SAP 1000090210
- Code 8893439
Product Documentation
More from Schneider Electric
Schneider Electric
APC by Schneider Electric SUA24XLBP — Smart-UPS external battery pack, 24 VDC, sealed lead-acid
Schneider Electric
Tesys T Devnet 1,35-27A 24VDC
LTMR27DBD
Schneider Electric
Reversing Switch V. 32A 24V AC (LU6MB0B)
Schneider Electric

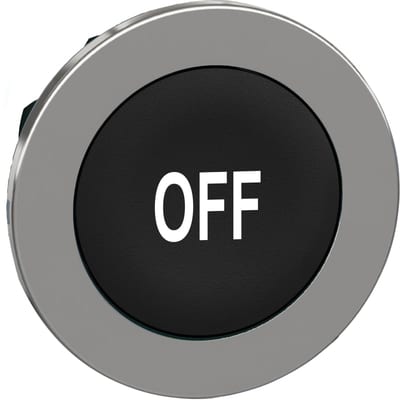

Push-button flush black with text (ZB4FA235)
Schneider Electric

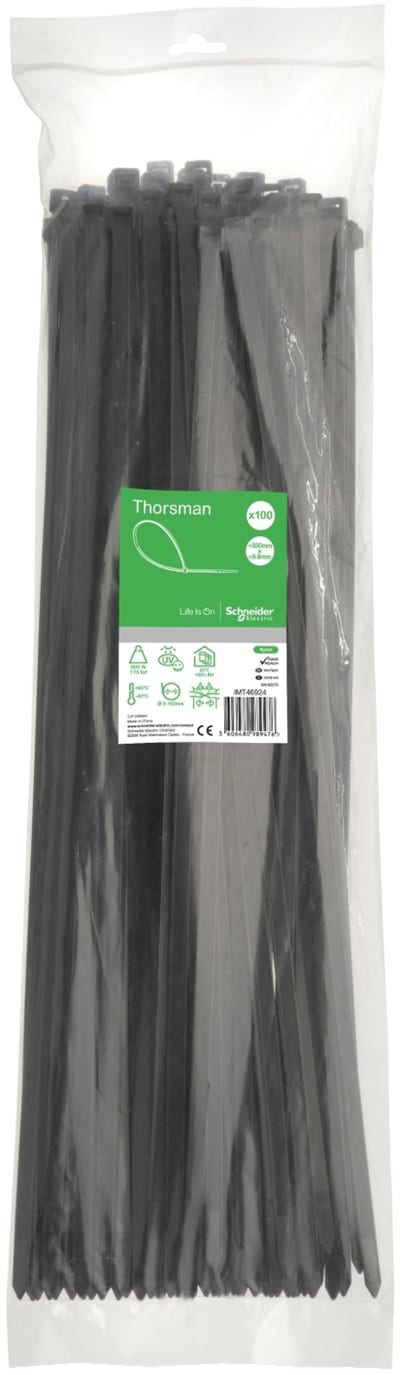

Schneider Electric Thorsman - cable tie - black - 8.8 x 550 mm IMT46924
Schneider Electric

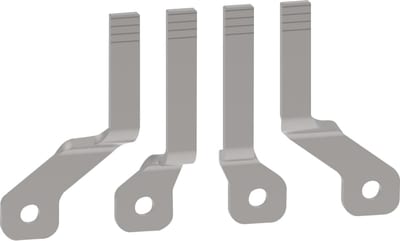

Faneforlengere ATS-4 pcs for 100A frame
TPSCON35
Schneider Electric

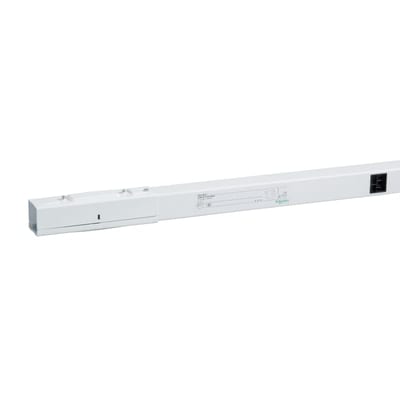

Schneider Electric Straight length, Canalis KBB, 40 A, 1 circuit 3L+N+PE, remote control circuit, 2 tap-off units, 2 m, white KBB40ED4202TW
Schneider Electric

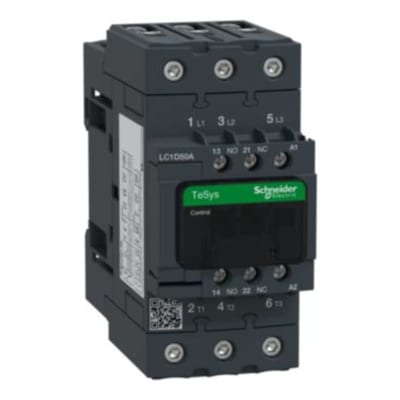

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 50A, 400V AC 50/60Hz coil, screw clamp terminals LC1D50OF7
