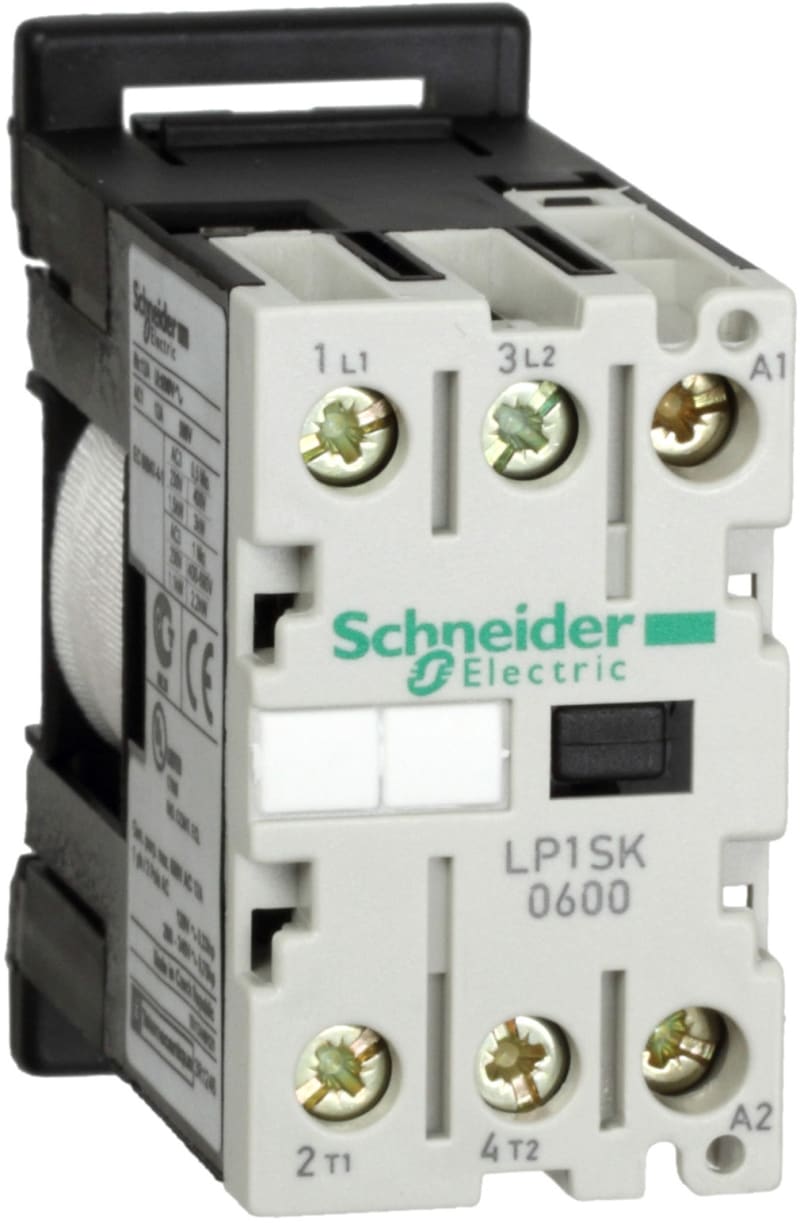

Schneider Electric TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 24 V DC coil LP1SK0600BD

Schneider Electric LP1SK0600BD Mini contactor 2NO 12A 24VDC.

Manufacturer part number (MPN)

LP1SK0600BD

EAN / GTIN

3389110563931

HS code

8536.90

Sales unit

pcs

Package quantity

40 pcs

Voltage

24 V DC

Contact configuration

2 NO

Product or component type

Mini contactor

Device short name

LP1SK

Contactor application

Resistive load

Utilisation category

AC-1

power pole contact composition

2P

Pole contact composition

2 NO

[Ue] rated operational voltage

Power circuit: 690 V AC 50/60 Hz

[Ie] rated operational current

12 A (at <55 °C) AC AC-1

Control circuit type

DC standard

[Uc] control circuit voltage

24 V DC

[Ith] conventional free air thermal current

12 A (at 55 °C) for power circuit

Irms rated making capacity

66 A at 690 V AC conforming to IEC 60947; 66 A at 690 V AC conforming to NF C 63-110

Rated breaking capacity

52 A at <= 400 V for power circuit conforming to NF C 63-110; 52 A at <= 400 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current

50 A 55 °C for power circuit

Associated fuse rating

16 A gI at <= 440 V for power circuit conforming to IEC 60947

Average impedance

4 mOhm - Ith 12 A 50 Hz

[Ui] rated insulation voltage

690 V conforming to IEC 60947; 690 V conforming to VDE 0110 group C; 690 V conforming to BS 5424; 690 V conforming to UL 508; 690 V conforming to CSA C22.2 No 14

Mounting support

Rail

Standards

EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

CB Scheme; CE; UKCA; EAC; cULus

Connections - terminals

Power circuit: connector 1 cable(s) 0.35…6 mm²flexible with cable end; Power circuit: connector 1 cable(s) 0.5…6 mm²flexible without cable end; Power circuit: connector 1 cable(s) 1.5…6 mm²solid; Power circuit: connector 2 cable(s) 0.35…1.5 mm²flexible with cable end; Power circuit: connector 2 cable(s) 0.35…2.5 mm²flexible without cable end; Power circuit: connector 2 cable(s) 1.5…4 mm²solid

Tightening torque

0.8 N.m - on connector - with screwdriver pozidriv No 1

Operating time

4...6 ms coil de-energisation and NO opening; 8...12 ms coil energisation and NO closing

Mechanical durability

10 Mcycles

Maximum operating rate

1200 cyc/h

Control circuit voltage limits

Operational: 0.85...1.1 Uc (at <50 °C); Drop-out: 0.1...0.75 Uc (at <50 °C)

Inrush power in W

2.2 W (at 20 °C)

Hold-in power consumption in W

2.2 W at 20 °C

Heat dissipation

2.2 W

IP degree of protection

IP2X conforming to VDE 0106

Protective treatment

TC conforming to IEC 60068; TC conforming to DIN 50015

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-50…70 °C

Operating altitude

2000 m without derating

Height

56 mm

Width

27 mm

Depth

55.5 mm

Product weight

0.132 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90
