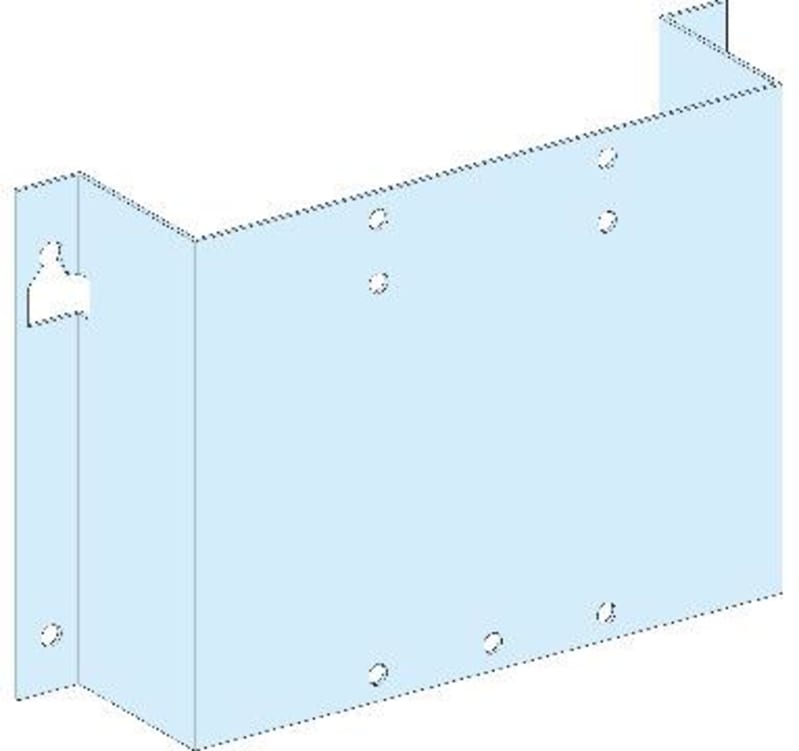

MONTPL.NSX250 PrismaG cable compartment-tilting

Schneider Electric LVS03050 — MOUNTING PLATE NSX/CVS/VIGI/INS 250 V. FIX.TOGGLE.

Manufacturer part number (MPN)

LVS03050

EAN / GTIN

3606481874672

Sales unit

pcs

Package quantity

30 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT Pack 250 duct; PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P cubicle

installation description

Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle - width 400 mm depth 400 mm; Pack enclosure - width 300 mm

Installed device

EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed INS250 - control: direct front rotary handle - vertical installation; ComPact: fixed INV100 - control: direct front rotary handle - vertical installation; ComPact: fixed INV160 - control: direct front rotary handle - vertical installation; ComPact: fixed INV200 - control: direct front rotary handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS250 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation

Poles description

1 x 3P: fixed INS250 vertical installation; 1 x 4P: fixed INS250 vertical installation; 1 x 3P: fixed INV250 vertical installation; 1 x 4P: fixed INV250 vertical installation; 1 x 3P: fixed INV100 vertical installation; 1 x 4P: fixed INV100 vertical installation; 1 x 3P: fixed INV160 vertical installation; 1 x 4P: fixed INV160 vertical installation; 1 x 3P: fixed INV200 vertical installation; 1 x 4P: fixed INV200 vertical installation; 1 x 3P: fixed CVS100...160 vertical installation; 1 x 4P: fixed CVS100...160 vertical installation; 1 x 3P: fixed CVS250 vertical installation; 1 x 4P: fixed CVS250 vertical installation; 1 x 3P: fixed NSX100...160 vertical installation; 1 x 4P: fixed NSX100...160 vertical installation; 1 x 3P: plug-in NSX100...160 vertical installation; 1 x 4P: plug-in NSX100...160 vertical installation; 1 x 3P: fixed NSX250 vertical installation; 1 x 4P: fixed NSX250 vertical installation; 1 x 3P: plug-in NSX250 vertical installation; 1 x 4P: plug-in NSX250 vertical installation

Condition of using cable tie

Need additional plate (1M high) when installation of device is in vertical

Number of vertical modules [50 mm]

9 module(s): CVS100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): CVS100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): CVS100...160 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure); 9 module(s): CVS250 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): CVS250 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): CVS250 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure); 9 module(s): INS250, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): INS250, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): INV100, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): INV100, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): INV160, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): INV160, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): INV200, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): INV200, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): INV250, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): INV250, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): NSX100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): NSX100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): NSX100...160 without earth leakage protection , front connection in 400 mm Widecubicle; 9 module(s): NSX100...160 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure); 9 module(s): NSX250 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 9 module(s): NSX250 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 9 module(s): NSX250 without earth leakage protection , front connection in 400 mm Widecubicle; 9 module(s): NSX250 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure); 13 module(s): CVS100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 13 module(s): CVS100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 13 module(s): CVS250 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 13 module(s): CVS250 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 13 module(s): NSX100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 13 module(s): NSX100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 11 module(s): NSX100...160 with earth leakage protection , front connection in 400 mm Widecubicle; 13 module(s): NSX100...160 with earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure); 13 module(s): NSX250 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure); 13 module(s): NSX250 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure); 11 module(s): NSX250 with earth leakage protection , front connection in 400 mm Widecubicle; 13 module(s): NSX250 with earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure)

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

300 mm

Height

250 mm

Product weight

0.54 kg

Functional unit

300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 3P 1 front connection 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 1 front connection 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 3P 1 front connection 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 4P 1 front connection 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 3P 1 front connection 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 4P 1 front connection 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 3P 1 front connection 9 178 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 4P 1 front connection 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 3P 1 front connection 11 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 4P 1 front connection 11 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 3P 1 front connection 11 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 4P 1 front connection 11 278 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 3P 1 front connection 11 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 1 front connection 11 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 1 front connection 11 278 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 1 front connection 11 278 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm; 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.400 cm

Package 1 Width

14.100 cm

Package 1 Length

22.000 cm

Package 1 Weight

546.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

30

Package 2 Height

16.500 cm

Package 2 Width

51.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

18.010 kg

Unit Type of Package 3

P12

Number of Units in Package 3

120

Package 3 Height

83.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

84.040 kg

Country of origin

CZ

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

HS Code

7326.90
