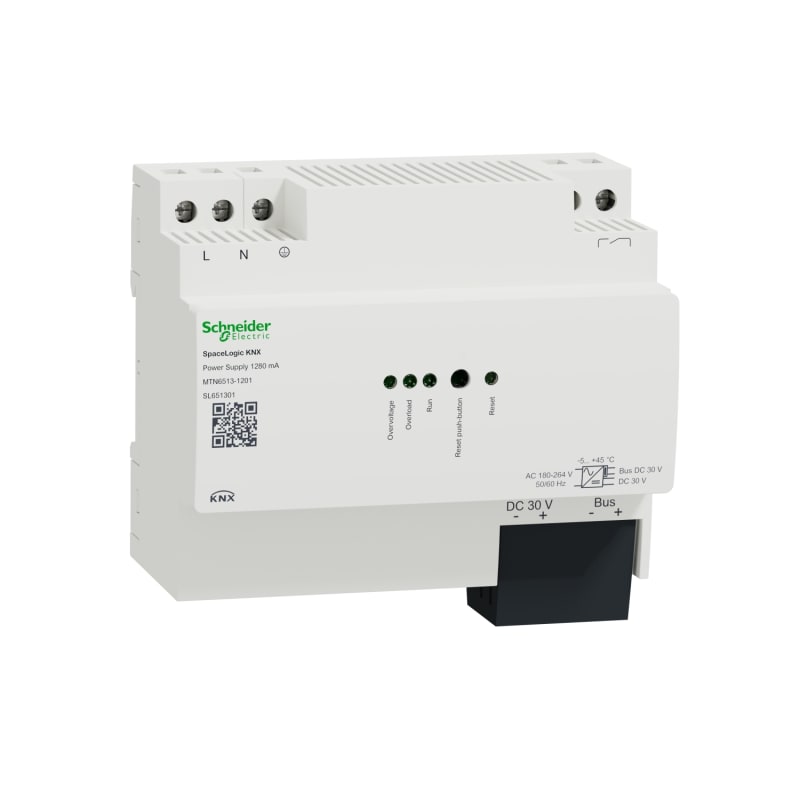

Schneider Electric Power supply, SpaceLogic KNX, 1280 mA, white MTN6513-1201
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6513-1201 — Power supply, SpaceLogic KNX, 1280 mA, white.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6513-1201
- EAN / GTIN
- 3606481902818
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Power supply
- Bus type
- KNX
- Provided equipment
- Line choke
- Topology
- TP256
- Colour tint
- White
- Number of bus terminals module
- 256
- Rated voltage
- 220…240 V AC 50...60 Hz
- Power consumption in W
- 6.4 W
- Maximum short-circuit current
- 3 A
- Maximum output current
- 1280 mA
- Output voltage
- 30 V DC
- Power supply type
- SELV
- Local signalling
- LED
- Connections - terminals
- 0.5...4 mm² screw terminal for solid cable; 0.5...4 mm² screw terminal for stranded cable; 0.5...2.5 mm² screw terminal for stranded with sleeve cable
- Mounting support
- DIN rail
- total number of 18 mm modules
- 6
- Height
- 90 mm
- Width
- 108 mm
- Depth
- 65 mm
- Operating altitude
- 2000 m
- Relative humidity
- 93 % non-condensing
- Ambient air temperature for operation
- -5…45 °C
- Ambient air temperature for storage
- -25…70 °C
- Directives
- 89/336/EEC - electromagnetic compatibility
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.000 cm
- Package 1 Width
- 12.700 cm
- Package 1 Length
- 15.800 cm
- Package 1 Weight
- 505.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 22
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 12.004 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Power consumption
- 6.4 W
- Number of integrated choke coils
- 1
- Number of lines to feed
- 1
- Max. output current
- 1280 mA
- Secondary voltage
- 30 V
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Bus voltage stockable
- No
- Width in number of modular spacings
- 6
- Other bus systems
- None
- Bus system LON
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481902818
- SAP 1200481064
- Code 82562757
