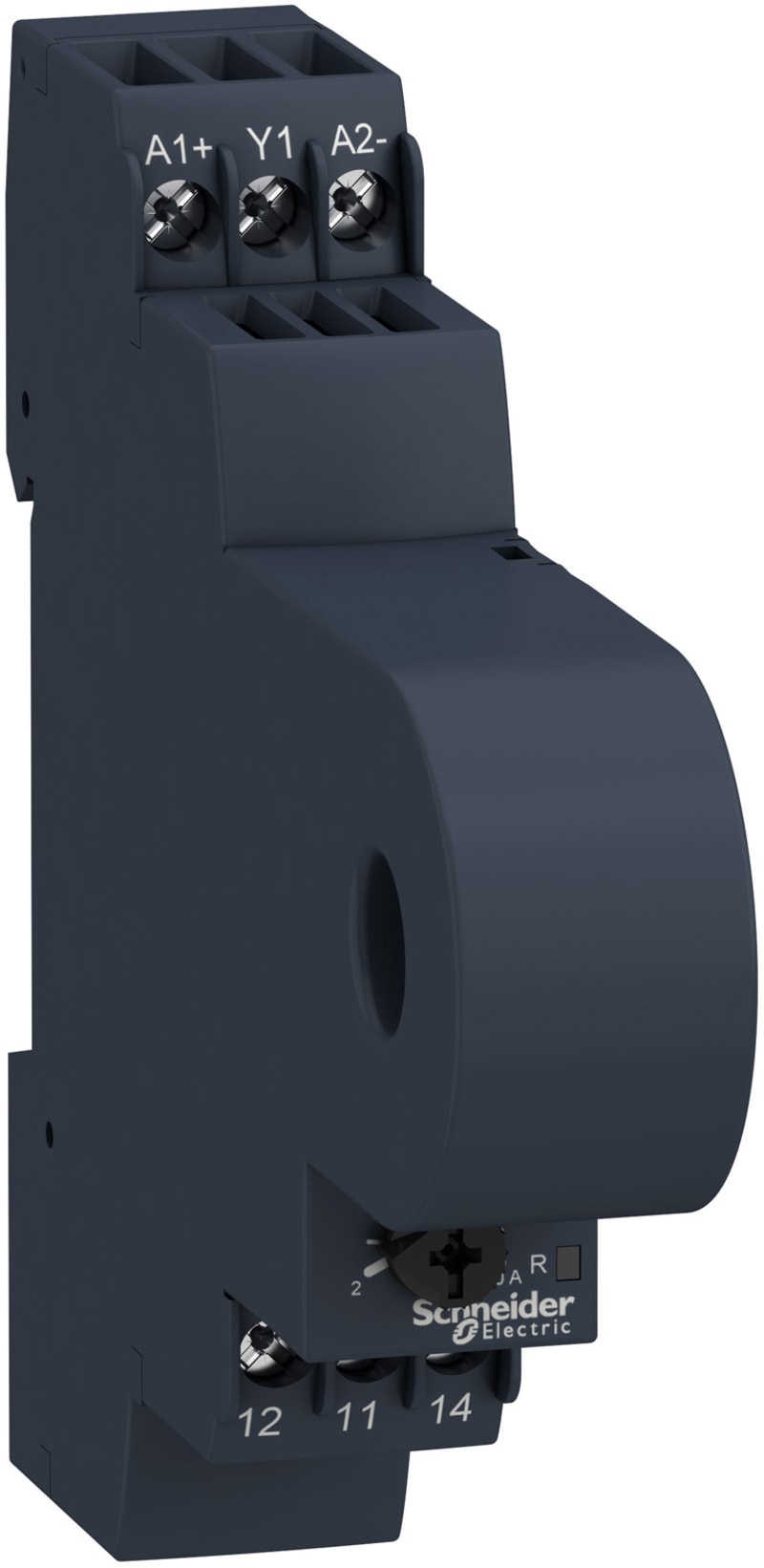

Schneider Electric Modular current control relay, 8 A, 1 CO, overcurrent function, 250 V AC/DC RM17JC00MW

Schneider Electric RM17JC00MW — Modular current control relay, 8 A, 1 CO, overcurrent function, 250 V AC/DC.

Manufacturer part number (MPN)

RM17JC00MW EAN / GTIN: 3389119405034 Sales unit: pcs Package quantity: 32 pcs Range of product: Harmony Control Relays Relay type: Current control relay Product or component type: Current control relay Relay name: RM17JC Relay monitored parameters: Overcurrent detection Time delay type: Without Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum power consumption in VA: 3 VA Measurement range: 2...20 A AC Utilisation category: AC-12 conforming to IEC 60947-5-1; AC-13 conforming to IEC 60947-5-1; AC-14 conforming to IEC 60947-5-1; AC-15 conforming to IEC 60947-5-1; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1; DC-14 conforming to IEC 60947-5-1 Contacts type and composition: 1 C/O Maximum switching voltage: 250 V AC/DC [Us] rated supply voltage: AC/DC Supply voltage limits: 20.4…264 V AC/DC operating voltage tolerance: - 15 % + 10 % Un Maximum power consumption in W: 1 W Control circuit frequency: 40...70 Hz sinusoidal Output contacts: 1 C/O nominal output current: 5 A Maximum measuring cycle: 30 ms measurement cycle as true rms value Hysteresis: 15 % fixed of threshold setting delay at power up: 0.5 s Measurement accuracy: +/- 10 % of the full scale value Repeat accuracy: +/- 0.5 % for input and measurement circuit Measurement error: +/- 0.05 %/°C with temperature variation; < 1 % over the whole range with voltage variation Response time: < 200 ms (in the event of a fault) Polarity: Yes DC Threshold setting: 10...100 % Input current: 100000 mA permanent at 25 °C; 300000 mA non repetitive < 3 s at 25 °C Marking: CE : 73/23/EEC; CE : EMC 89/336/EEC Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5; > 500 MOhm at 500 V DC conforming to IEC 60664-1 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 Insulation: Between supply and measurement Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Operating rate: <= 360 operations/hour full load Contacts material: Cadmium free Width: 17.5 mm Control type: Without test button Product weight: 0.13 kg Immunity to microbreaks: 10 ms Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: GL; C-Tick; GOST; UL; CSA Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 Vibration resistance: 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6; 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 Shock resistance: 15 gn for 11 ms conforming to IEC 60255-21-1 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Dielectric test voltage: 2 kV AC 50 Hz Non-dissipating shock wave: 4 kV Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 2.800 cm Package 1 Width: 9.700 cm Package 1 Length: 10.400 cm Package 1 Weight: 117.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 32 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 4.200 kg Country of origin: ID Warranty (in months): 18 Voltage type (supply voltage): AC/DC Type of electric connection: Screw connection With detachable clamps: No Single-phase under current possible: No Three-phase under current possible: No Single-phase overcurrent possible: Yes Three-phase overcurrent possible: No Single-phase hysteresis possible: No Three-phase hysteresis possible: No Contains function DC-voltage under current: No Contains function DC-voltage overcurrent: No Function DC-current hysteresis: No Rated control supply voltage AC 50 Hz: 24–240 V Rated control supply voltage AC 60 Hz: 24–240 V Rated control supply voltage DC: 24–240 V Voltage type for actuating: AC/DC Current measuring range: 2–20 A Min. adjustable delay-on energization time: 0 s Max. permitted delay-on energization time: 0.5 s Min. adjustable off-delay time: 0 s Number of contacts as change-over contact: 1 External current transformer: No Height: 90 mm Depth: 72 mm

HS Code

8536.49

• EAN 3389119405034
• SAP 1000257645
• Code 81144356
