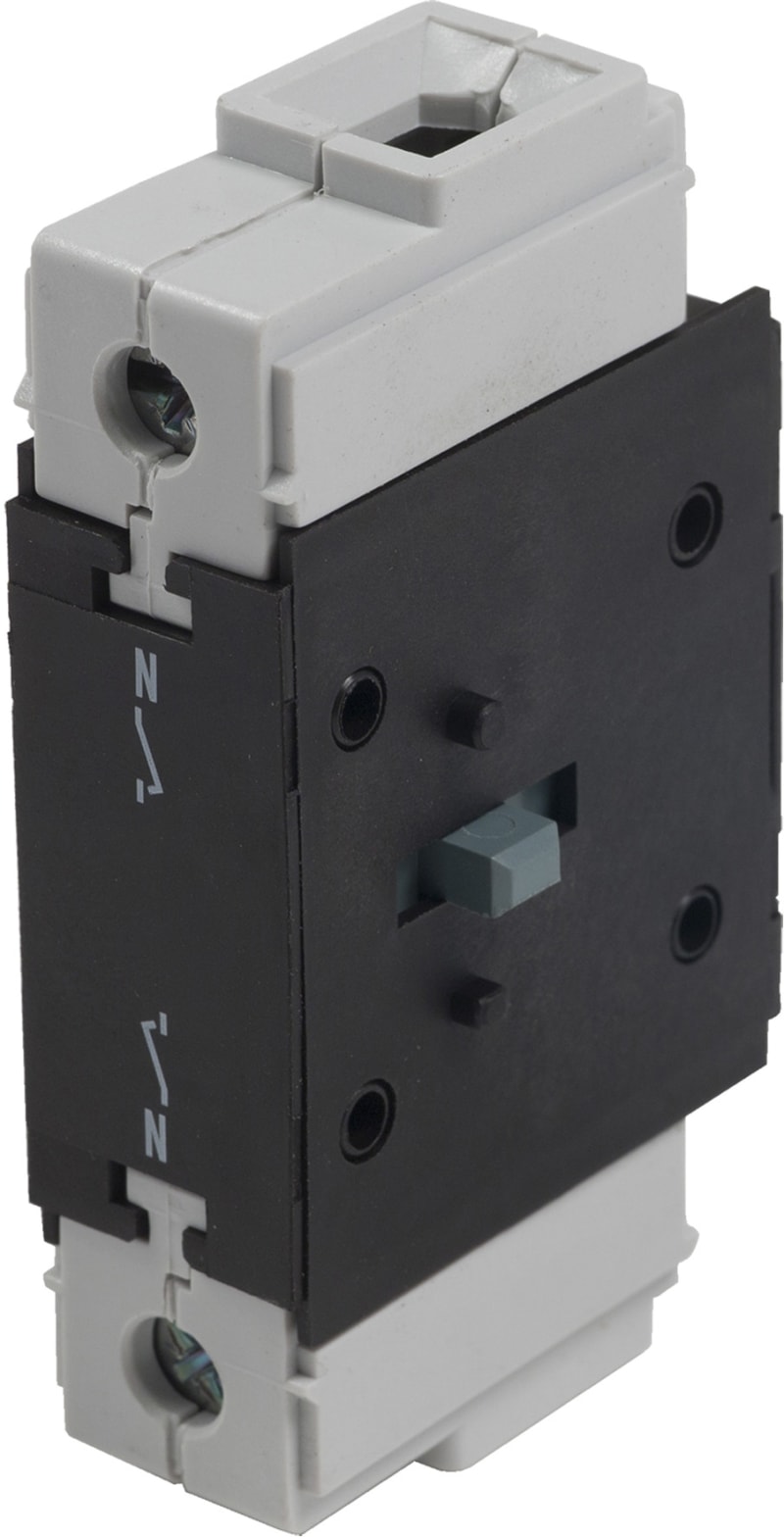

Neutral pole 63/80A (VZ12)

Schneider Electric VZ12 — TeSys VARIO - additional neutral block - 80 A - for V3 / V4.

Manufacturer part number (MPN)

VZ12

EAN / GTIN

3389110551914

Sales unit

pcs

Package quantity

69 pcs

Range

TeSys

Device short name

VZ

Product or component type

Additional neutral block

Performance level

High performance

Poles description

1N

Contacts type and composition

1 NO

Contact operation

Early make, late break

Product compatibility

V3; V4

Range compatibility

TeSys TeSys VARIO switch disconnector

Network type

AC; DC

Network frequency

50/60 Hz

Mounting location

Left; Right

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

[Ith] conventional free air thermal current

80 A

Mechanical durability

30000 cycles

Electrical durability

30000 cycles DC-1...5; 30000 cycles AC-21

Connections - terminals

Screw clamp terminals16 mm² - flexible - with cable end; Screw clamp terminals25 mm² - solid

Tightening torque

4 N.m - on screw clamp terminals

Height

83 mm

Width

20 mm

Depth

46 mm

Product weight

0.1 kg

Standards

IEC 60947-3

Product certifications

GL; UL; CSA; UKCA

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.59 cm

Package 1 Width

3.81 cm

Package 1 Length

8.89 cm

Package 1 Weight

0.09 kg

Unit Type of Package 2

S02

Number of Units in Package 2

69

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

6.28 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8538.90
