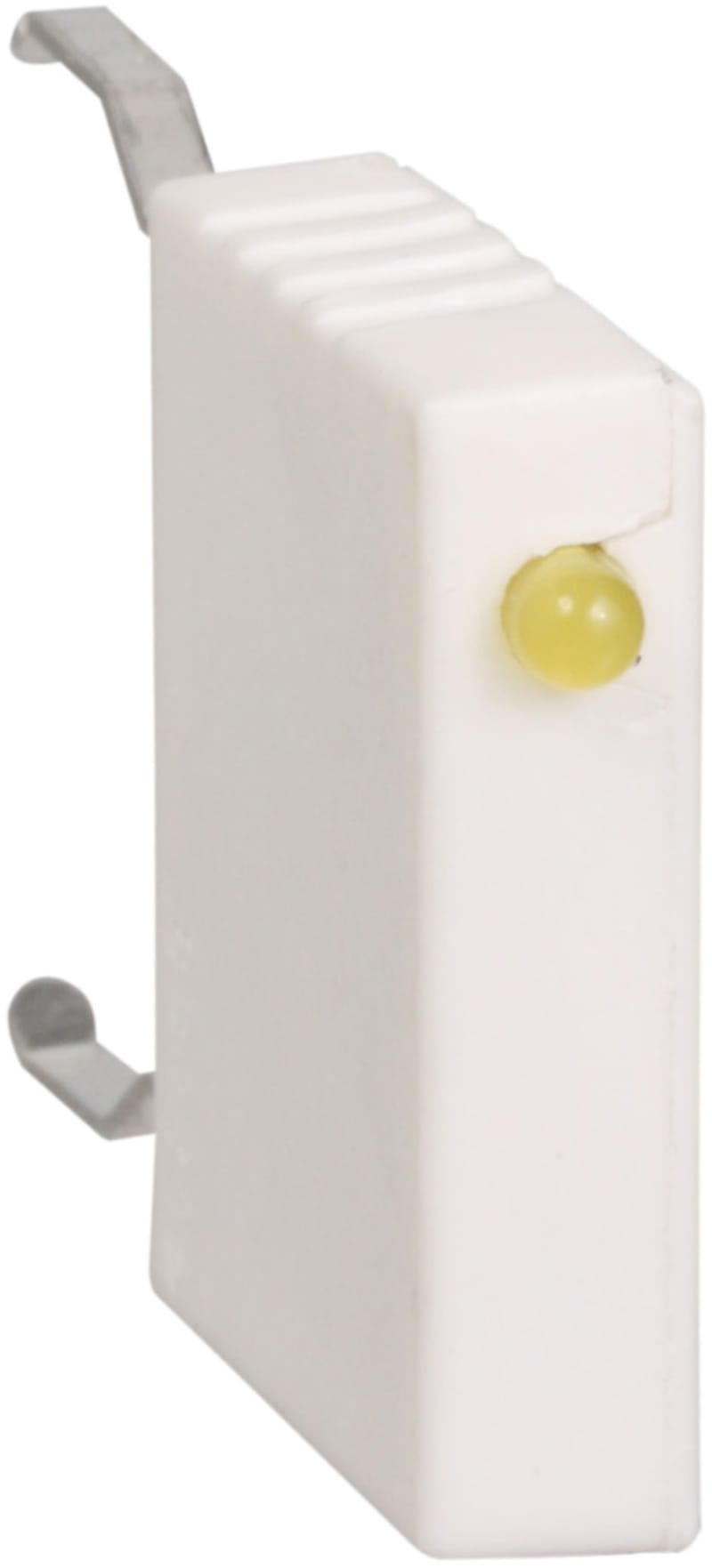

Schneider Electric TeSys K - Suppressor module - varistor - 50...129 V LA4KE1FC

Schneider Electric LA4KE1FC Accessories for Tesys K mini contactors.

Manufacturer part number (MPN)

LA4KE1FC

EAN / GTIN

3389110536959

Sales unit

pcs

Package quantity

5 pcs

Range

TeSys

Device short name

LA4K

Product or component type

Suppressor module

Product compatibility

LC1K; LP1K; LP4K; CA2K; CA3K

Mounting location

Front side

mounting mode

Clip-on

Suppressor technology

Varistor (peak limiting)

[Uc] control circuit voltage

50...129 V AC; 50...129 V DC

Maximum peak voltage

2 Uc

Local signalling

LED

Quantity per set

Set of 5

Height

26 mm

Width

6 mm

Depth

22 mm

Product weight

0.01 kg

Standards

UL 60947-5-1; CSA C22.2 No 60947-5-1; EN/IEC 60947-5-1

Product certifications

UL; CSA; CE; UKCA

IP degree of protection

IP2X conforming to IEC 60529

Protective treatment

TC conforming to IEC 60068; TC conforming to DIN 50016

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-50…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

420

Country of origin

ID

Warranty (in months)

18

Function

Varistor (voltage-sensitive resistor)

Rated control supply voltage AC 50 Hz

50–129 V

Rated control supply voltage AC 60 Hz

50–129 V

Rated control supply voltage DC

50–129 V

Voltage type (operating voltage)

AC/DC

With LED indication

Yes

Operating voltage AC 50 Hz

50–129 V

Operating voltage AC 60 Hz

50–129 V

Operating voltage DC

50–129 V

Voltage type for actuating

AC/DC

HS Code

8536.30

• EAN 3389110536959
• SAP 1000254501
• Code 81143013
