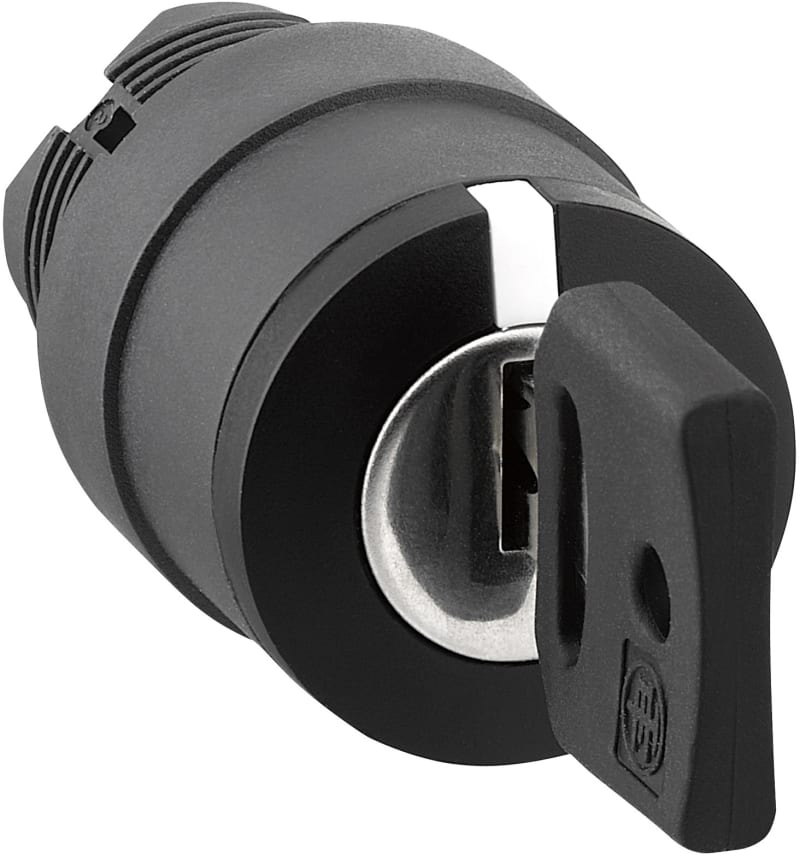

Key selector head N04
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB5AG09 loose key selectors in plastic for use on the XB5 series.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AG09
- EAN / GTIN
- 3389110905786
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for key selector switch
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- stay put
- Operator profile
- Black key switch
- Operator position information
- 3 positions +/- 45°
- Type of keylock
- Key 455
- Key withdrawal position
- Right
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 72 mm
- Product weight
- 0.057 kg
- Mechanical durability
- 1000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110905786
- SAP 1000471494
- Code 8799448
Product Documentation
