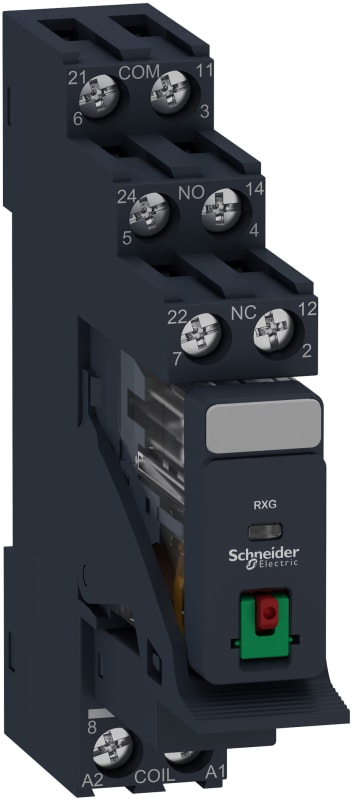

Schneider Electric Harmony, Interface plug-in relay pre-assembled, 5 A, 2 CO, with lockable test button, with protection circuit, 24 V AC RXG21B7PV

Schneider Electric RXG21B7PV Zelio RXG plug-in relay in plinth with test button - 2C/O 5A 24VAC supply.

Manufacturer part number (MPN)

RXG21B7PV EAN / GTIN: 3606489562861 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Voltage: 24 V AC Rated current: 5 A Range of product: Harmony Electromechanical Relays Series name: RXG series Product or component type: Pre-assembled plug-in relay with socket Relay type: Interface relay Contacts type and composition: 2 C/O [Uc] control circuit voltage: 24 V AC [Ithe] conventional enclosed thermal current: 5 A status LED: Without Electrical durability: 100000 cycles for NO resistive load at 55 °C; 100000 cycles for NC resistive load at 55 °C [Ui] rated insulation voltage: 250 V conforming to IEC Removable legend: With Maximum switching voltage: 250 V Drop-out voltage threshold: >= 0.3 Uc AC [Ie] rated operational current: 10 A at 30 V (DC) conforming to UL; 10 A at 30 V (DC) conforming to IEC; 10 A at 250 V (AC) conforming to UL; 10 A at 250 V (AC) conforming to IEC Load current: 5 A minimum switching capacity: 50 mW at 10 mA, 5 V DC Maximum switching capacity: 1250 VA AC; 150 W DC Control type: Lockable test button Average resistance: 260 Ohm at 23 °C +/- 10 % Contact resistance: 100 mOhm Insulation resistance: 1000 MOhm at 500 V DC Electrical insulation class: Class F Mechanical durability: 10000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % Operating time: 20 ms Reset time: 20 ms Contact terminal arrangement: Separate Connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end Dielectric strength: 1000 V AC between contacts with micro disconnection; 1300 V between terminals and base with basic insulation; 3000 V between terminals and LTB area with basic insulation; 3000 V AC between poles with basic insulation; 5000 V AC between coil and contact with reinforced insulation [Uimp] rated impulse withstand voltage: 1200 V AC between contacts with micro disconnection; 6000 V between coil and contact with reinforced insulation; 1500 V between terminals and case with basic insulation Overvoltage category: III Protection category: RT I Pollution degree: 2 Test levels: Level A group mounting Device presentation: Complete product Contacts material: Silver alloy (AgSnO2In2O3) Shape of pin: Flat (faston type) Product weight: 0.065 kg Standards: IEC 61810-1; CSA C22.2 No 14; UL 508; IEC 61984 Product certifications: EAC; CSA; UL; CE; DNV Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: -40…70 °C IP degree of protection: IP20 Relative humidity: 10…85 % Vibration resistance: 3 gn, amplitude = +/- 1.5 mm (f = 10…150 Hz)in operation; 5 gn, amplitude = +/- 1.5 mm (f = 10…150 Hz)not in operation Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3606489562861
• SAP 1200271539
• Code 82235706
