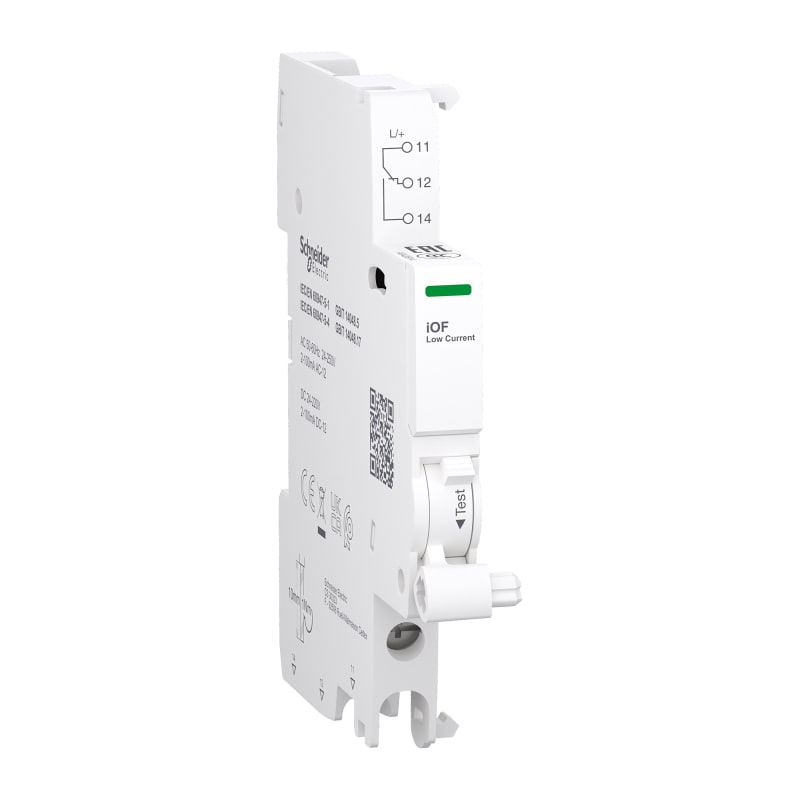

Schneider Electric A9A26914 Auxiliary contact, ACTI9 A9A, iOF, 1 C/O, 2MA to 100MA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

Schneider Electric A9A26914 Auxiliary contact, ACTI9 A9A, iOF, 1 C/O, 2MA to 100MA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 12 pcs; range of product: Acti9; Product or component type: OC contact; Device short name: iOF; Signal contacts composition: 1 C/O.

Manufacturer part number (MPN)

A9A26914

EAN / GTIN

3606482129139

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product or component type

OC contact

Device short name

iOF

Signal contacts composition

1 C/O

[In] rated current

2…100 mA at 24...240 V, AC 50/60 Hz; 2…100 mA at 24 V, DC; 2…100 mA at 48 V, DC; 2…100 mA at 60 V, DC; 2…100 mA at 130 V, DC; 2…100 mA at 220 V, DC

9 mm pitches

1

Standards

EN/IEC 60947-5-1; EN/IEC 60947-5-4; GB/T 14048.5; GB/T 14048.17

Product certifications

CE; UKCA

Quality labels

EAC; CCC

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iSW; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Operating mode

Daisy chain up to 100 devices

[Ui] rated insulation voltage

500 V

[Uimp] rated impulse withstand voltage

4 kV

mounting mode

Clip-on

Mounting location

Left side of circuit-breaker

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Height

86 mm

Width

9 mm

Depth

73 mm

Product weight

32 g

Colour

White

Connections - terminals

Screw clamp terminal (bottom): 1 cable(s) 1…4 mm² - rigid; Screw clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² - flexible; Screw clamp terminal (bottom): 2 cable(s) 2.5 mm² - rigid; Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule

Wire stripping length

10 mm

Tightening torque

1 N.m bottom

IP degree of protection

IP20

Pollution degree

3

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.100 cm

Package 1 Width

8.000 cm

Package 1 Length

9.400 cm

Package 1 Weight

40.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

8.500 cm

Package 2 Width

10.000 cm

Package 2 Length

27.000 cm

Package 2 Weight

561.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

120

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

6.255 kg

Country of origin

IN

Warranty (in months)

18

Function

Auxiliary switch

Voltage type

AC/DC

Rated voltage

240 V

Installed at the factory

Yes

Width in number of modular spacings

0.5

Rated switch current

0.002 A

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)

Additional equipment

Auxiliary switch

Voltage type for actuating

AC/DC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8536.50
