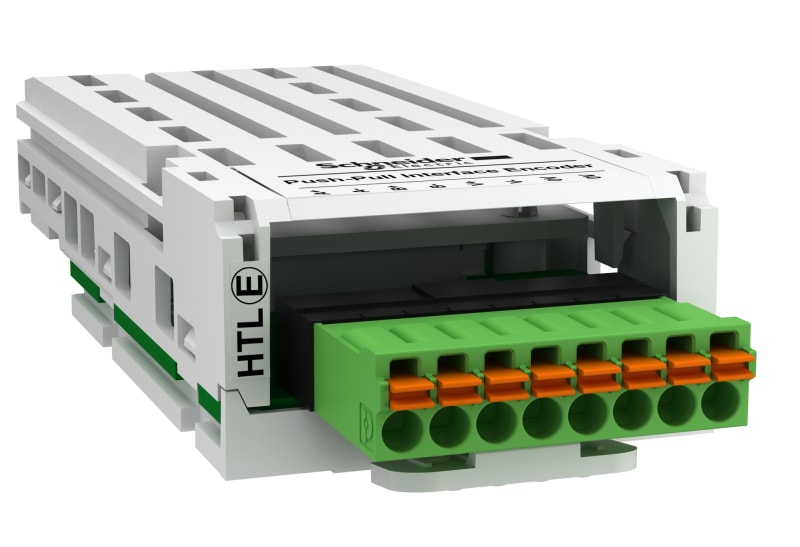

Schneider Electric HTL encoder interface module VW3A3424

Schneider Electric VW3A3424 Giverkort Push Pull for ATV900.

Manufacturer part number (MPN)

VW3A3424

EAN / GTIN

3606481211491

Sales unit

pcs

Package quantity

16 pcs

Range of product

Altivar

Product or component type

Encoder interface module

Range compatibility

Altivar Process ATV900; Altivar Process Modular; Altivar Machine ATV340

Encoder type

High threshold logic (HTL)

[Us] rated supply voltage

12 V DC; 15 V DC; 24 V DC

Maximum supply current

0.2 A at 12 V DC; 0.175 A at 15 V DC; 0.1 A at 24 V DC

Protection type

Short-circuit protection; Overload protection

Maximum cable distance between devices

500 m

Maximum operating frequency

300 kHz

Input signal

Push-pull differential: A/AB/B; Push-pull single ended: AB; Push-pull single ended: A; Open collector differential: A/AB/B; Open collector PNP: AB; Open collector NPN: AB; Open collector PNP: A; Open collector NPN: A

Connector type

1 removable spring connector

Product weight

0.15 kg

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

ID

Warranty (in months)

18

Type of accessory/spare part

Encoder input module

Accessory

Yes

Spare part

No

HS Code

8517.62
