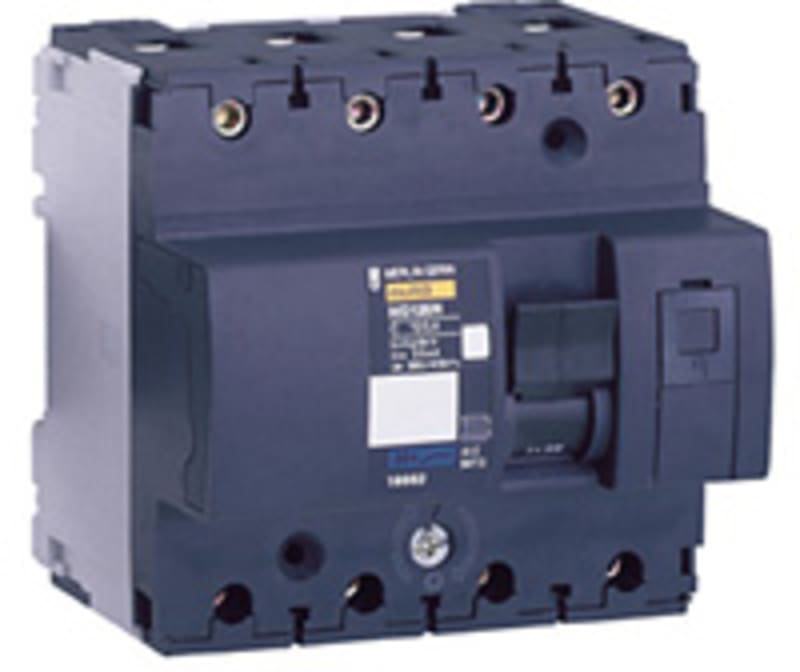

NG125L/B 80-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18776 NG125L/B 80-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18776
- EAN / GTIN
- 3303430187769
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 10–50 mm²
- Connectable conductor cross section solid-core
- 16–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187769
- SAP 1000040163
- Code 8521459
Product Documentation
More from Schneider Electric
Schneider Electric
Push-Button Head with 6 FARV Cap
ZB5AA9
Schneider Electric
RAIL 400A 1,5M 6 Outlet
KSA400ED4156
Schneider Electric

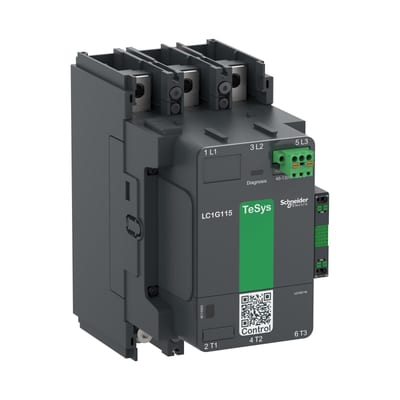

Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 150A, standard version, 48…130V wide band AC/DC coil LC1G150EHEN
Schneider Electric

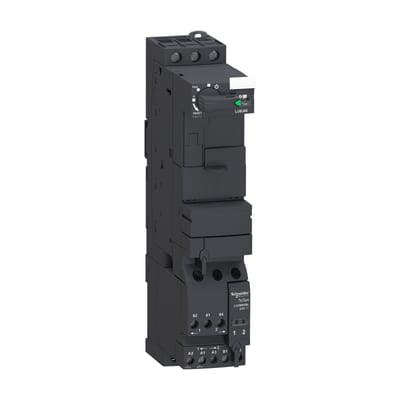

Schneider Electric Reversing power base, TeSys U, 3P, 38A/690V, coil 24V DC LU2B38BL
Schneider Electric

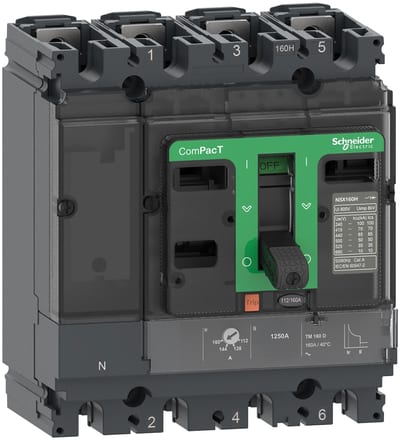

Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 4 poles 4D (neutral fully protected), TMD trip unit 63A C10V4TM063
Schneider Electric

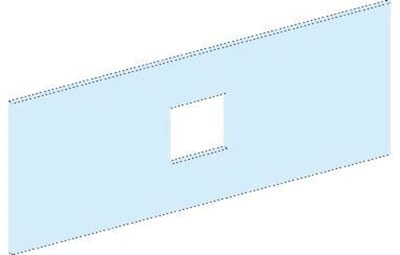

FRONTPL.NSX250 Horizontal-withdrawable Prisma P
LVS03618
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 127V AC 50/60Hz coil, snap-in terminals LC1D25AFC7
Schneider Electric

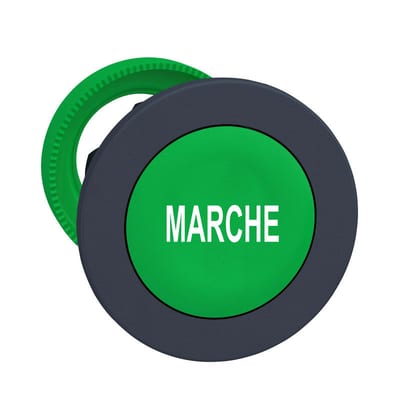

Push-button flush green with text (ZB5FA342)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18776?
- 18776 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18776.
- What is the HS code for 18776?
- The customs tariff (HS) code for 18776 is 8536.20.
- Who manufactures 18776?
- 18776 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18776?
- Yes — the 18776 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18776?
- The minimum order quantity is 1.
- Is 18776 available?
- Yes — 18776 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
