Schneider Electric

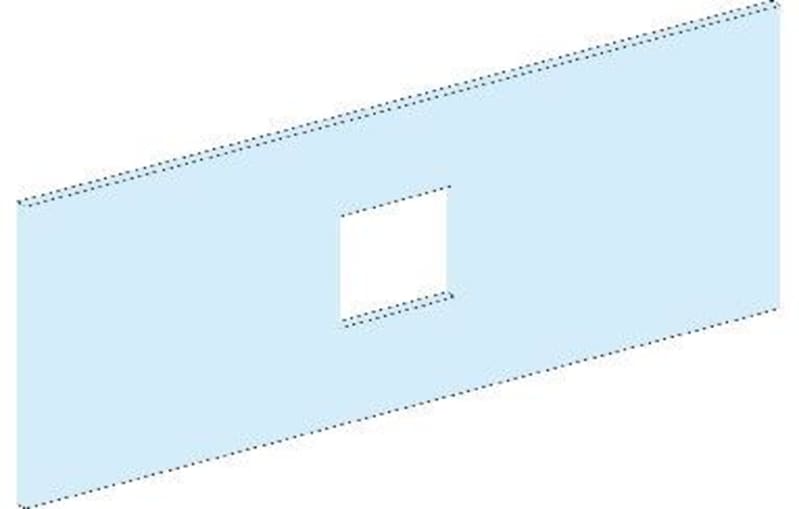

FRONTPL.NSX250 Horizontal-withdrawable Prisma P
Part numberLVS03618EAN / GTIN3606481872524HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03618 Front plate for NSX100-250-Horizontal mounting-withdrawable-PrismaSeT P-650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03618
- EAN / GTIN
- 3606481872524
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: drawout NSX100...160 without earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: drawout NSX250 without earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX250 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: drawout NSX100...160 with earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX100...160 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: drawout NSX250 with earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX250 with earth leakage protection - control: motor mechanism - horizontal installation
- Poles description
- 1 x 3P: mounting plate support: NSX100...160 horizontal installation; 1 x 4P: mounting plate support: NSX100...160 horizontal installation; 1 x 3P: mounting plate support: NSX250 horizontal installation; 1 x 4P: mounting plate support: NSX250 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 5
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 250 mm
- Product weight
- 1.04 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle horizontal 4P 1 direct 5
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 5
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872524
- SAP 1200546713
- Code 82879629
Product Documentation
Document preview: Schneider Electric LVS03618 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 127V AC 50/60Hz coil, snap-in terminals LC1D25AFC7
Schneider Electric
Push-button flush green with text (ZB5FA342)
Schneider Electric

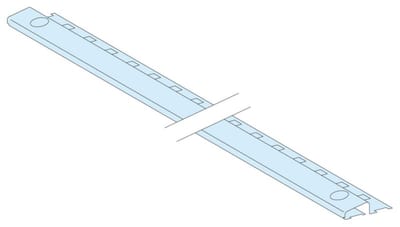

Front Plate Brackets, Vertical, 2 pcs, 18 Modules, PrismaSeT G
LVS01254
Schneider Electric

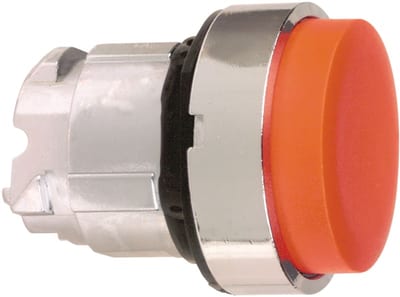

Schneider Electric Harmony XB4 Non-Illuminated Push-Push Head, Projecting, Red
ZB4BH4
Schneider Electric

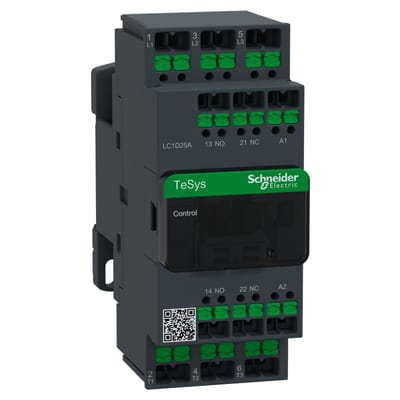

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 220V AC 50/60Hz coil, snap-in terminals LC1D25AM7
Schneider Electric

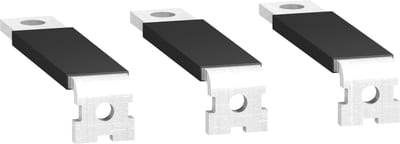

2 insulated FANEFORL. FOR BASE (LV429276)
Schneider Electric

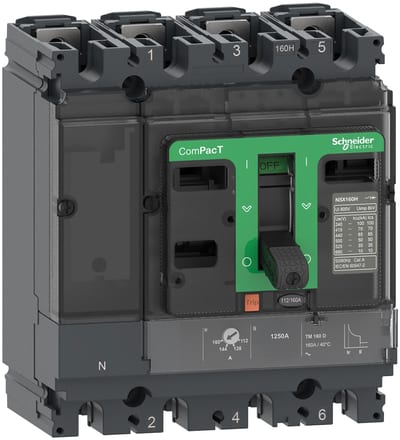

Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 4 poles 4D (neutral fully protected), TMD trip unit 40A C10V4TM040
Schneider Electric

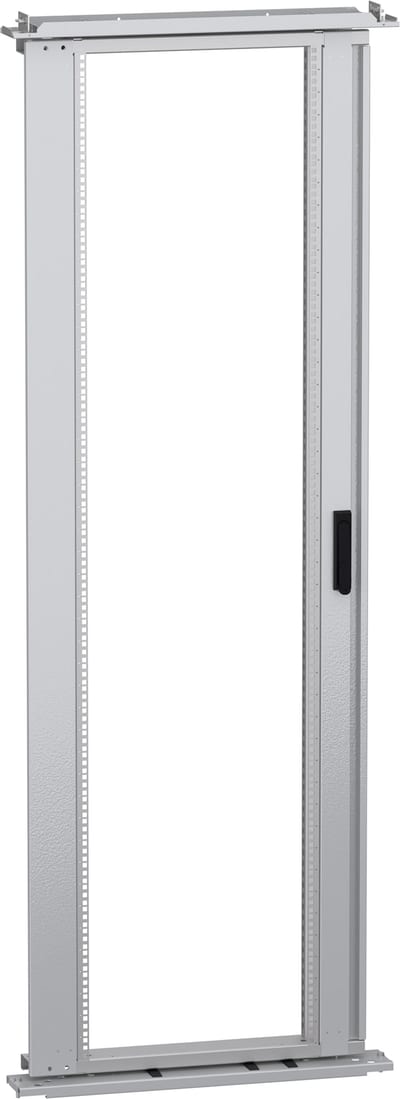

Schneider Electric PanelSeT SF 19" swing rack - 2200X800 mm - 45 modules NSYRSWC45
