Schneider Electric PanelSeT SF 19" swing rack - 2200X800 mm - 45 modules NSYRSWC45
Pricing
Request a quote
We reply within 24 hours
Product Description

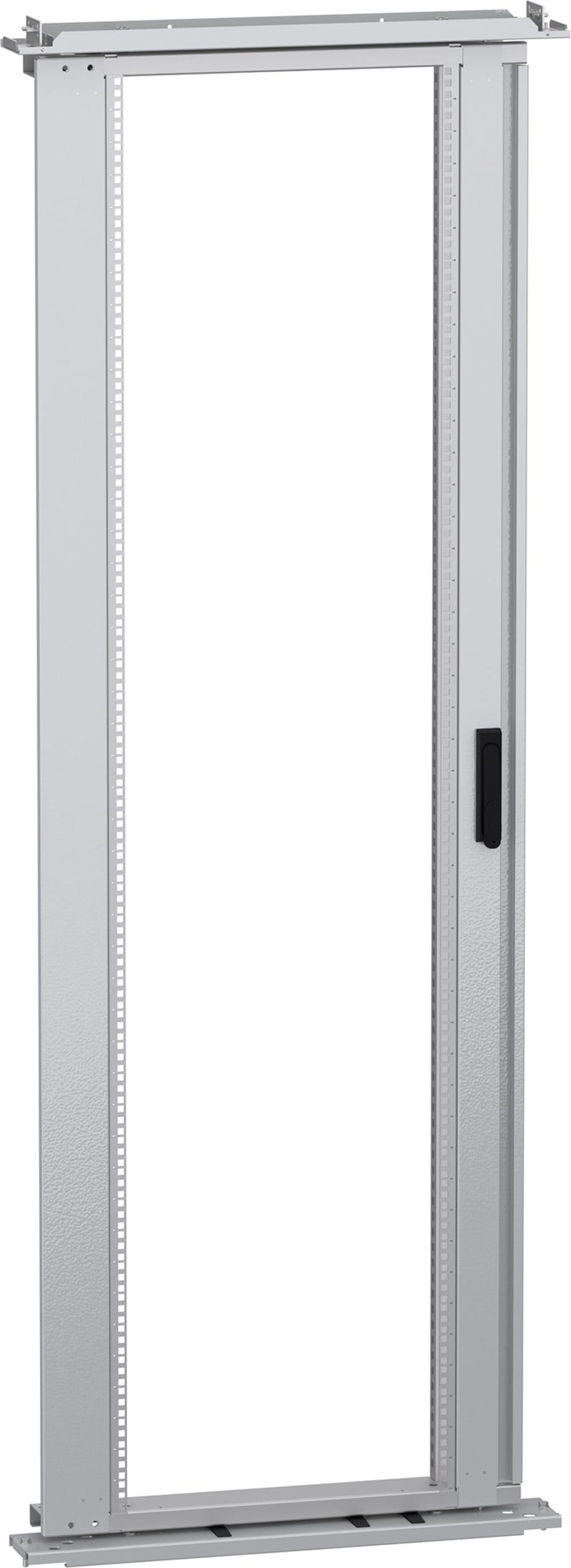

Schneider Electric NSYRSWC45 19" Swing frame 45U, 2200x800mm, Steel.
Technical Specifications
- Manufacturer part number (MPN)
- NSYRSWC45
- EAN / GTIN
- 3606480067143
- Sales unit
- pcs
- Rack units
- 45U
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application
- For enclosure nominal dimensions
- - H: 2200 mm
- Rack type
- Swing
- Mounting location
- On structure of enclosure
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- fixing elements; 2 800 mm swing rack supports; 1 19" swing rack; 2 side plates with ball-lock handle
- Quantity per set
- Set of 1
- Number of units 19"
- 45
- Rack coverage
- Complete
- Rack position
- Centered
- Material
- Steel
- Enclosure/cubicle description
- Floor-standing enclosure
- Surface finish
- Zinc coated
- Lock type
- Handle with ball lock
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth every 25 mm
- Colour
- Side plate: grey (RAL 7035)
- Permanent permissible load
- 3.75 kg per unit with a maximum of 150 kg
- Opening of the 19" racks
- Reversible 120 °
- Height
- 2200 mm
- Width
- 800 mm
- Depth
- 2101 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building height
- 2200 mm
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480067143
- SAP 1000089524
- Code 8914679
Product Documentation
