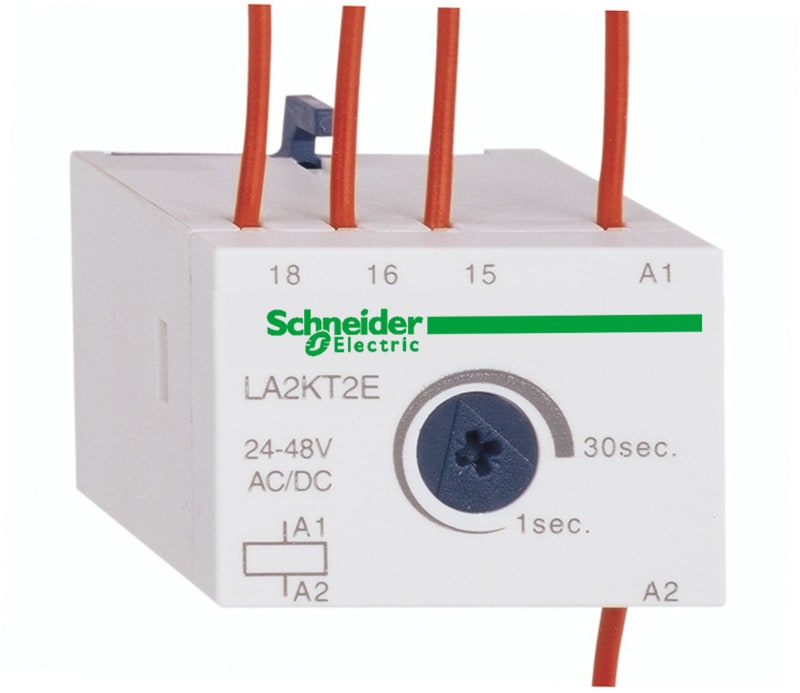

Schneider Electric TeSys K -Time delay auxiliary contact block - 1 C/O - 24...48 V - 1…30S LA2KT2E

Schneider Electric LA2KT2E Tidsblokk 1-30S 24-48VAC/DC.

Manufacturer part number (MPN)

LA2KT2E

EAN / GTIN

3389110230048

Sales unit

pcs

Range

TeSys

Product name

TeSys K

Product or component type

Time delay auxiliary contact block

Device short name

LA1

Range compatibility

TeSys K LC1K; TeSys K CA2K; TeSys K CA3K; TeSys K CA4K

Mounting location

Front

Pole contact composition

1 C/O

Contacts operation

Time delay

Timer type

On delay

Time delay range

1...30 s

[Ue] rated operational voltage

24...48 V AC/DC for control circuit; 240 V AC for signalling circuit

Rated operational voltage limits

0.85...1.1 Uc

[Ith] conventional free air thermal current

2 A for signalling circuit

Standards

EN/IEC 60947-5-1

Product certifications

CE; UKCA

Insulation resistance

> 10 MOhm

Connections - terminals

Slip-on terminals

Reset time

1.5 s during time delay; 0.5 s after time delay

Height

27 mm

Width

38 mm

Depth

38 mm

Product weight

0.04 kg

Environmental characteristic

Normal environment

IP degree of protection

IP20 conforming to IEC 60529

Protective treatment

TC conforming to IEC 60068

Ambient air temperature for operation

-10…60 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.000 cm

Package 1 Width

4.800 cm

Package 1 Length

4.800 cm

Package 1 Weight

40.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

70

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.110 kg

Country of origin

TN

Warranty (in months)

18

Switching function

Operating delayed

Setting time

1–30 s

Number of contacts as change-over contact

1

Operating principle

Electronic

HS Code

8536.90
