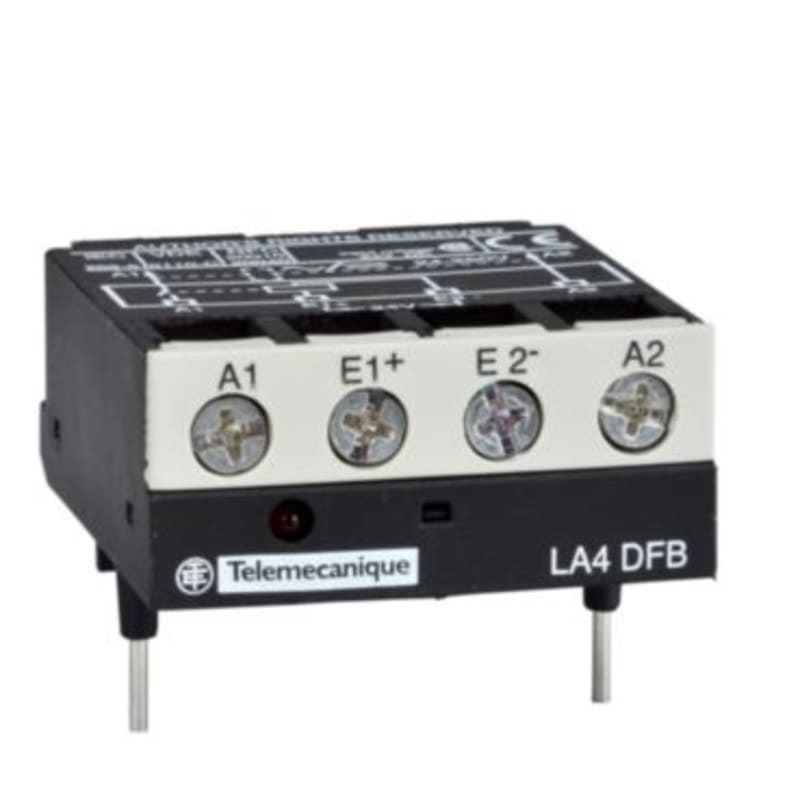

Schneider Electric LA4DFB TeSys D - interface amplifier module - relay - 24 V DC / 250 V AC

Schneider Electric LA4DFB TeSys D - interface amplifier module - relay - 24 V DC / 250 V AC is listed under Control & Automation / Relays & Timers. Sales unit: pcs; Package quantity: 105 pcs; Range: TeSys; Device short name: LA4D; Poles description: 3P; Product or component type: Interface module.

Manufacturer part number (MPN)

LA4DFB

EAN / GTIN

3389110236378

Sales unit

pcs

Package quantity

105 pcs

Range

TeSys

Device short name

LA4D

Poles description

3P

Product or component type

Interface module

Product compatibility

LC1D09...D150

mounting mode

Top mounted

Technology type

Electromechanical

[Us] rated supply voltage

24 V DC

Control circuit voltage limits

17...30 V at 20 °C DC

[Ui] rated insulation voltage

250 V - for control circuit conforming to IEC 60947-5-1

Connections - terminals

Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²solid with cable end; Control circuit: connector 1 cable(s) 1…2.5 mm²solid without cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²solid with cable end; Control circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end

[Ue] rated operational voltage

Control circuit: 24...250 V AC

Current consumption

25 mA 20 °C

Current state 0 guaranteed

<= 2 mA

Voltage state 0 guaranteed

< 2.4 V

Voltage state 1 guaranteed

17 V

Electrical durability

10 Mcycles at 240 V

Local signalling

LED indicator

Height

12 mm

Product weight

0.05 kg

Standards

IEC 60255-5

Product certifications

UL; CSA

[Ith] conventional free air thermal current

8 A 50 °C

Protection type

Built-in by diode

IP degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25…55 °C

Permissible ambient air temperature around the device

-25…70 °C

Ambient air temperature for storage

-40…80 °C

Heat dissipation

0.6 W for control circuit

Immunity to microbreaks

4 ms

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.000 cm

Package 1 Width

5.000 cm

Package 1 Length

5.000 cm

Package 1 Weight

49.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

70

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.767 kg

Country of origin

TN

Warranty (in months)

18

With integrated suppressor

No

Rated control supply voltage DC

24 V

Voltage type (operating voltage)

DC

Operating voltage AC 50 Hz

24–250 V

Operating voltage AC 60 Hz

24–250 V

Type of set-up

Direct attachment

Voltage type for actuating

DC

HS Code

8536.49
