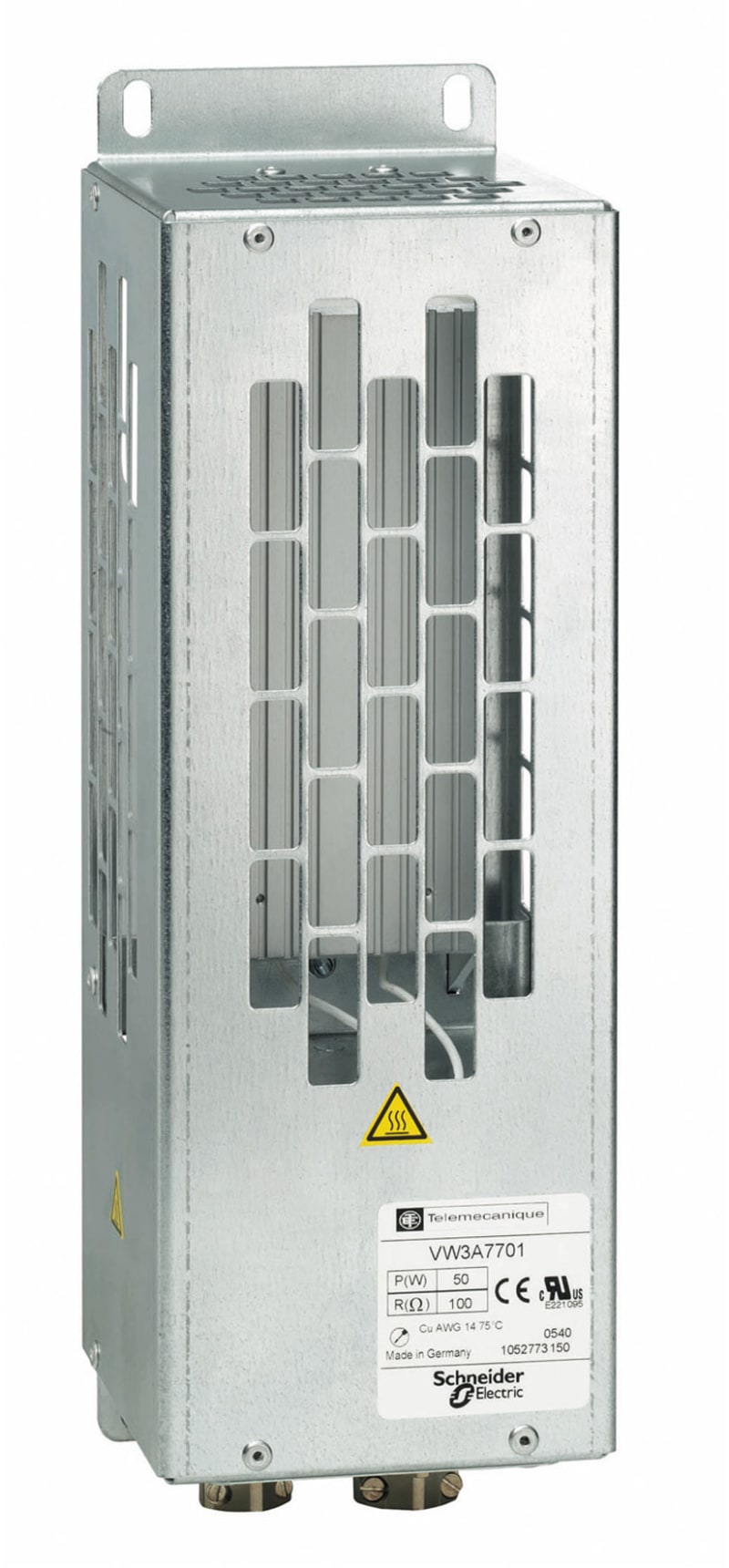

Schneider Electric braking resistor - IP 20 - 15 Ohm - 1000 W VW3A7704
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7704 Braking resistor 15 ohm 1000W.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7704
- EAN / GTIN
- 3389118065765
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 1000 W
- Range of product
- Altivar
- Range compatibility
- Altivar 312 Solar; Lexium 32; Altivar 61; Lexium 32i; Altivar 312; Lexium 52
- Product compatibility
- ATV312HU55M3; ATV312HU75M3; ATV61HD18N4; ATV61HD22N4; ATV61HD30N4; ATV61HD30Y; ATV61HD37Y; ATV61HD45Y; ATV61HU55M3; ATV61HU75M3; ATV61WD22N4; ATV61WD22N4C; ATV61WD30N4; ATV61WD30N4C; ATV61WD37N4; ATV61WD37N4C; ATV71HD18N4; ATV71HD22N4; ATV71HD22Y; ATV71HD30N4; ATV71HD30Y; ATV71HD37Y; ATV71HU55M3; ATV71HU75M3; ATV71WD18N4; ATV71WD22N4; ATV71WD30N4; LXM32MC10N4; LXM32MD85N4
- Product or component type
- Braking resistor
- Ohmic value
- 15 Ohm
- Accessory / separate part category
- Protection accessories
- [Ue] rated operational voltage
- 24 V DC at 0.1 A; 250 V AC at 1 A
- Average power available
- 1 kW at 50 °C; 1.154 kW at 40 °C
- Continuous power
- 1000 W
- Electrical connection
- M6 bar wire for drive; terminal, connection capacity: <= 2.5 mm² / 14 AWG for temperature control switch
- temperature controlled switch contact resistance
- 60 µOhm
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 240 mm
- Height
- 484 mm
- Depth
- 301 mm
- Product weight
- 11 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3389118065765
- SAP 1000254555
- Code 81143848
Product Documentation
