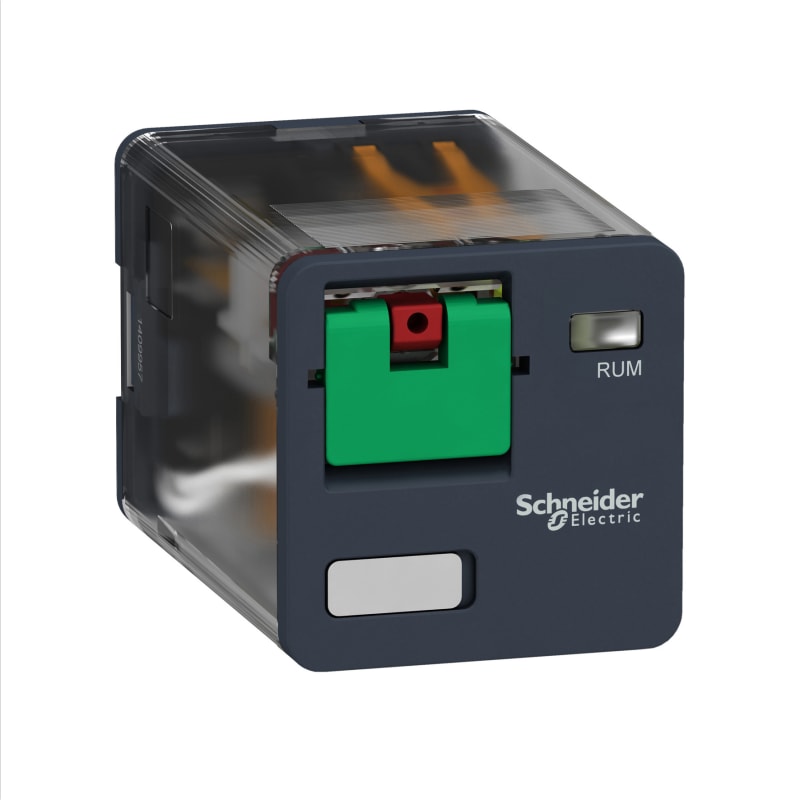

Schneider Electric universal plug-in relay - Harmony RUM - 3 C/O - 48 V AC - 10 A RUMC31E7

Schneider Electric RUMC31E7 Zelio RUM Plug-In Relay, 3 C/O contacts, 10 A Round pin 48VAC.

Manufacturer part number (MPN)

RUMC31E7 EAN / GTIN: 3606480626838 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 48 V AC Rated current: 10 A Range of product: Harmony Electromechanical Relays Series name: RUM series Product or component type: Plug-in relay Relay type: Universal relay Contacts type and composition: 3 C/O status LED: Without Control type: Lockable test button [Uc] control circuit voltage: 48 V AC 50/60 Hz [Ithe] conventional enclosed thermal current: 10 A at -40…55 °C [Uimp] rated impulse withstand voltage: 4 kV (1.2/50 µs) minimum switching capacity: 170 mW at 10 mA, 17 V Electrical durability: 100000 cycles for resistive load Average coil consumption in VA: 3 at 60 Hz Operating time: 20 ms at nominal voltage Rated operational voltage limits: 38.4...52.8 V AC [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL Reset time: 20 ms at nominal voltage Maximum switching voltage: 250 V conforming to IEC Drop-out voltage threshold: >= 0.15 Uc AC [Ie] rated operational current: 10 A at 277 V AC conforming to UL; 10 A at 30 V DC conforming to UL; 10 A at 277 V AC (same polarity) conforming to CSA; 10 A at 30 V DC conforming to CSA; 5 A at 250 V AC (NC) conforming to IEC; 5 A at 28 V DC (NC) conforming to IEC; 10 A at 250 V AC (NO) conforming to IEC; 10 A at 28 V DC (NO) conforming to IEC Average resistance: 290 Ohm at 20 °C +/- 15 % Maximum switching capacity: 2500 VA/280 W Mechanical durability: 5000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 18000 cycles/hour no-load; <= 1200 cycles/hour under load Utilisation coefficient: 20 % Compatibility code: RUM Dielectric strength: 1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic Protection category: RT I Pollution degree: 2 Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Contacts material: AgNi Shape of pin: Cylindrical Product weight: 0.086 kg Load current: 10 A at 250 V AC; 10 A at 28 V DC Ambient air temperature for operation: -40…55 °C IP degree of protection: IP40 Standards: IEC 61810-1; CSA C22.2 No 14; UL 508 Product certifications: UL; CSA; EAC Ambient air temperature for storage: -40…85 °C Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation; 4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating Shock resistance: 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27; 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3606480626838
• SAP 1000680673
• Code 8715066
