Sinus output filter IP00 300A

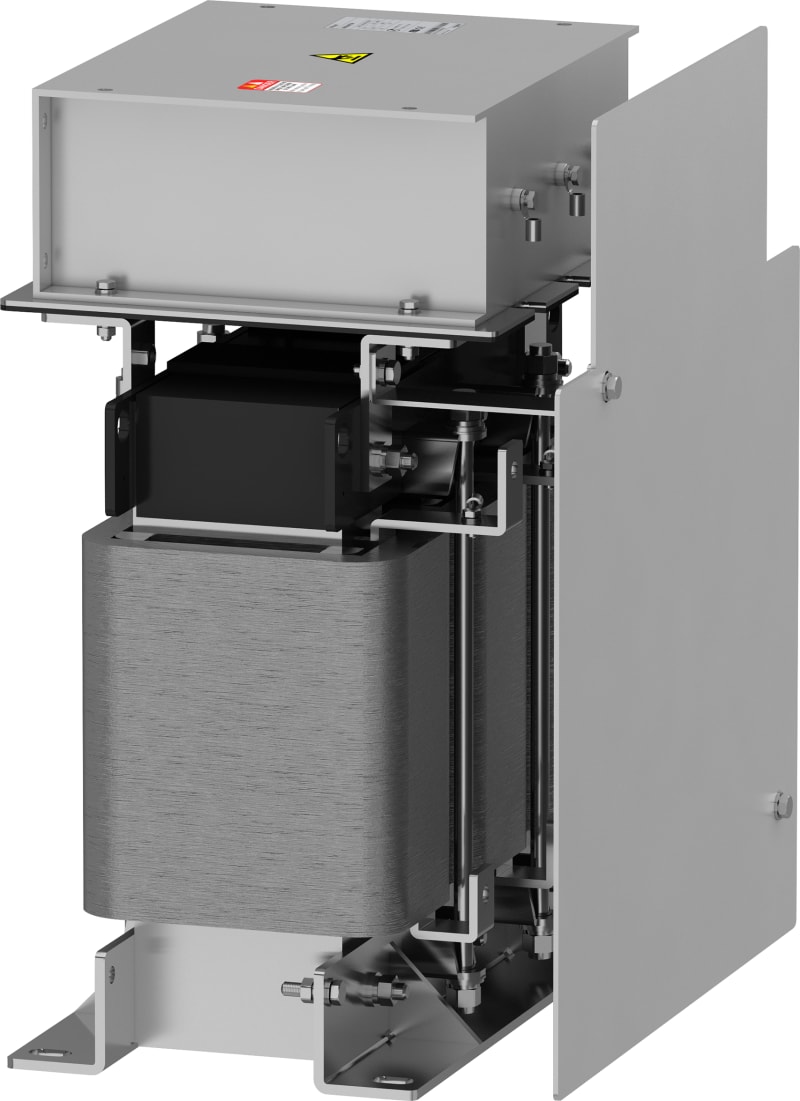

Schneider Electric VW3A5407 Sinus output filter IP00 300A.

Manufacturer part number (MPN)

VW3A5407

EAN / GTIN

3606480736865

Sales unit

pcs

IP rating

IP00

Product or component type

Sinus filter

Range compatibility

Altivar Process ATV900; Altivar Process ATV600

Product specific application

Output filter

Maximum motor cable length

1000 m unshielded cable; 500 m shielded cable

[In] rated current

305 A

Thermal losses

676 W at 4 kHz

Product compatibility

Variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 110 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 132 kW, 200...240 V; Variable speed drive ATV630 wall mount, motor: 160 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 110 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 132 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 160 kW, 380...480 V

Electrical connection

M10 copper bar, connection capacity: 300 mm² / 500 kcmil

Operating altitude

<= 1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m

Switching frequency

2.5...6 kHz

Maximum output frequency

100 Hz

Maximum voltage drop at rated load

8 %

Permissible voltage

480 V AC

Max current

1.20 x nominal current (duration = 60 s)

Width

460 mm

Height

370 mm

Depth

565 mm

Product weight

131 kg

IP degree of protection

IP00

Environmental characteristic

Biological pollution resistance class 3B1 conforming to IEC 60721-3-3; Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3; Dust pollution resistance class 3S3 conforming to IEC 60721-3-3

Pollution degree

3 conforming to IEC 61800-5-1

Relative humidity

5…95 % without condensation

Ambient air temperature for operation

50…60 °C (with current derating 1.5 % per °C); -15…50 °C (without current derating)

Ambient air temperature for storage

-40…70 °C

Mechanical robustness

Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3

Number of Units in Package 1

1

Country of origin

CN

Warranty (in months)

18

Suitable as sinus filter

Yes

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

6 kHz

Rated operating frequency

50–60 Hz

Max. rated operation voltage Ue

480 V

Rated current AC

305 A

Degree of protection (IP)

IP00

HS Code

8548.90
