Output Filter dv/dt IP00 300A
Pricing
Request a quote
We reply within 24 hours
Product Description

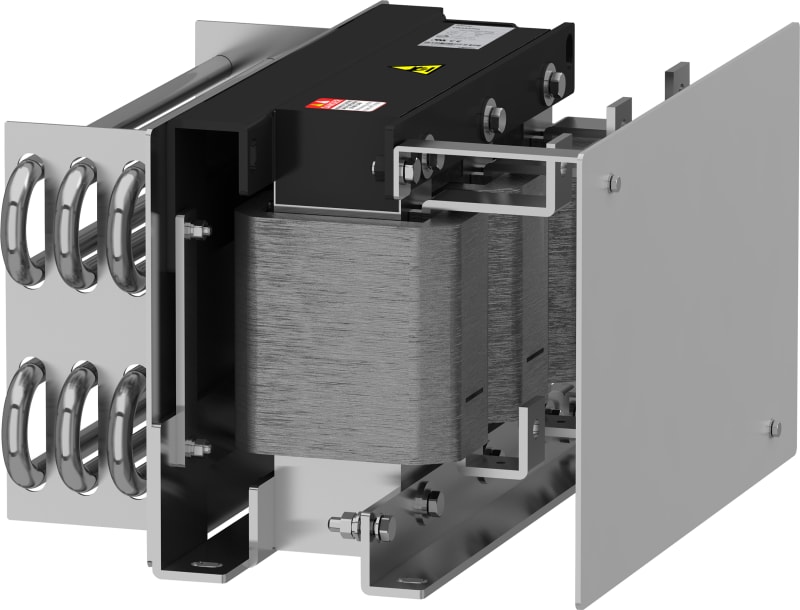

Schneider Electric VW3A5307 Output Filter dv/dt IP00 300A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5307
- EAN / GTIN
- 3606480736742
- Sales unit
- pcs
- IP rating
- IP00
- Product or component type
- Dv/dt filter
- Range compatibility
- Easy Altivar 610; Altivar Process ATV900; Altivar Process ATV600
- Product specific application
- Output filter
- [In] rated current
- 305 A
- Product compatibility
- ATV630 variable speed drive wall mount - 110 kW, 380...480 V; ATV630 variable speed drive wall mount - 132 kW, 380...480 V; ATV630 variable speed drive wall mount - 160 kW, 380...480 V; ATV630 variable speed drive wall mount - 55 kW, 200...240 V; ATV630 variable speed drive wall mount - 75 kW, 200...240 V; ATV610 variable speed drive - 110 kW, 380...415 V; ATV610 variable speed drive - 132 kW, 380...415 V; ATV610 variable speed drive - 160 kW, 380...415 V; ATV930 variable speed drive wall mount - 110 kW, 380...480 V; ATV930 variable speed drive wall mount - 132 kW, 380...480 V; ATV930 variable speed drive wall mount - 160 kW, 380...480 V; ATV930 variable speed drive wall mount - 55 kW, 200...240 V; ATV930 variable speed drive wall mount - 75 kW, 200...240 V
- nedded quantity
- 1
- Electrical connection
- Copper bar M10, connection capacity: 300 mm² / 500 kcmil
- Maximum motor cable length
- 500 m unshielded cable; 300 m shielded cable
- dv/dt
- 6000 V/µs max at 200...240 V; 6000 V/µs max at 380...480 V
- Thermal losses
- 287 W at 4 kHz
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Width
- 420 mm
- Height
- 360 mm
- Depth
- 270 mm
- Product weight
- 40 kg
- IP degree of protection
- IP00
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736742
- SAP 1000708090
- Code 8667348
Product Documentation
More from Schneider Electric
Schneider Electric
WALL-Mount Cabinet S3D without PL 3X3X1.5
NSYS3D3315
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W400MM, 3 rows, set of 2 NSYSUCR9040
Schneider Electric

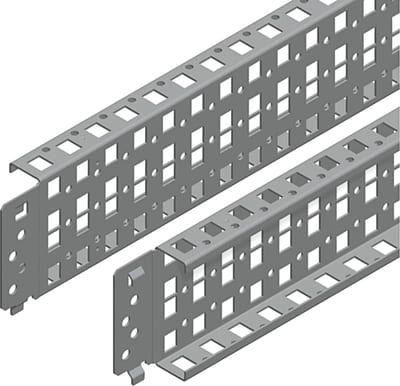

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W400MM, 3 rows, set of 2 NSYSQCR9040
Schneider Electric

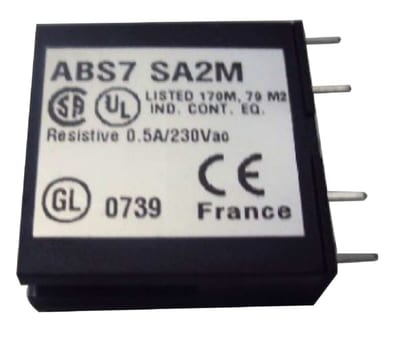

Schneider Electric plug-in solid state relay - 10 mm - output - 24..240 V AC - 0.5 A ABS7SA2M
Schneider Electric

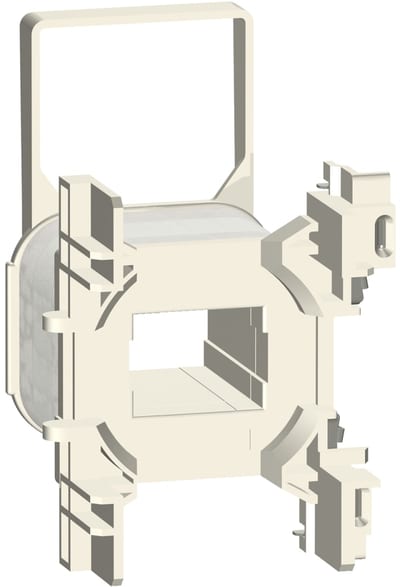

Coil D-Contactor 48V 50/60Hz
LXD3E7
Schneider Electric

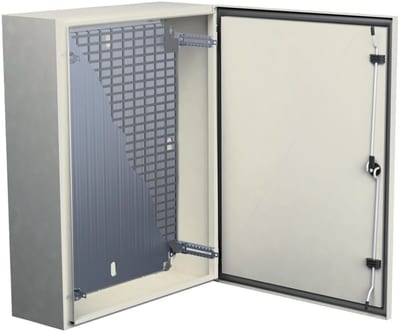

WALL-Mount Cabinet S3D without PL 8X6X3
NSYS3D8630
Schneider Electric
36cm side for PLS (NSYUM27360)
Schneider Electric

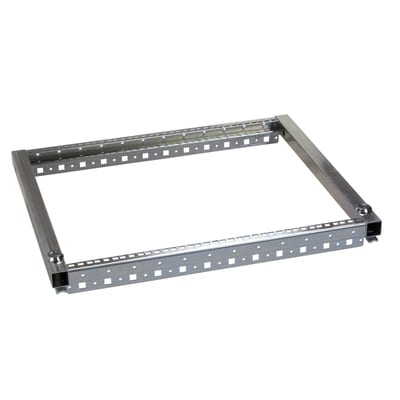

Schneider Electric PanelSeT SF/SM partial 19" swing rack - 355 mm NSYRSWP6
