EMC Additional Filter IP20 100A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A4706 EMC additional filter IP20 100A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4706
- EAN / GTIN
- 3606480736551
- Sales unit
- pcs
- IP rating
- IP20
- Rated current
- 100 A
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar Machine ATV340; Altivar Process ATV600; Altivar Process ATV900
- Product compatibility
- Variable speed drive ATV630 wall mount, motor: 37 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 45 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 18.5 kW, 200...240 V; Variable speed drive ATV630 wall mount, motor: 22 kW, 200...240 V; Variable speed drive ATV650 wall mount, motor: 37 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 45 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 37 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 45 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 18.5 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 22 kW, 200...240 V; Variable speed drive ATV950 wall mount, motor: 37 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 45 kW, 380...480 V; Variable speed drive ATV340 motor: 30 kW, 380...480 V; Variable speed drive ATV340 motor: 37 kW, 380...480 V
- Product specific application
- Radio interference input filter

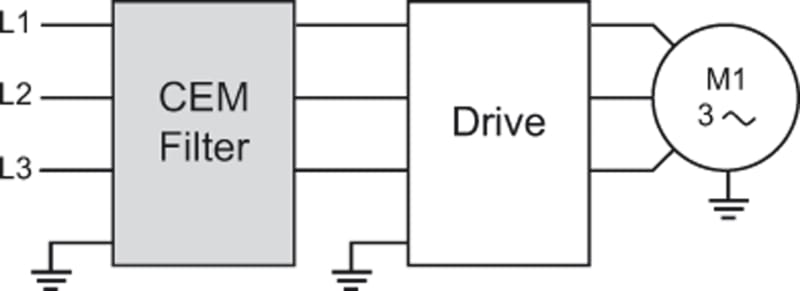

- Mounting location
- At variable speed drive side
- [In] rated current
- 100 A
- Thermal losses
- 12.4 W
- Network number of phases
- Three phase
- Electrical connection
- Terminal 50 mm² 1/0 AWG
- Maximum motor cable length
- 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V; 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V
- maximum earth leakage current
- 13.9 mA at 400 V 50 Hz TN; 13.9 mA at 400 V 50 Hz TT
- power supply voltage
- 380…480 V; 200…240 V
- Tolerance
- 10 %
- Mechanical robustness
- Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3
- Width
- 120 mm
- Height
- 340 mm
- Depth
- 180 mm
- Product weight
- 6.5 kg
- IP degree of protection
- IP20mounting side by side; IP21with kit VW3A47906
- Relative humidity
- 5…95 % without condensation conforming to IEC 61800-5-1
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Standards
- IEC 61800-3
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736551
- SAP 1000659360
- Code 8351722
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric IEC long time rating plug, MicroLogic trip units, OFF plug (no long time protection)
33545
Schneider Electric
Connectionsforlengels 3P G115-225
LA9G3601
Schneider Electric

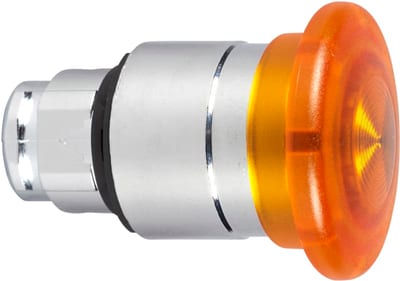

Illuminated mushroom pushbutton impulse yellow
ZB4BW453
Schneider Electric

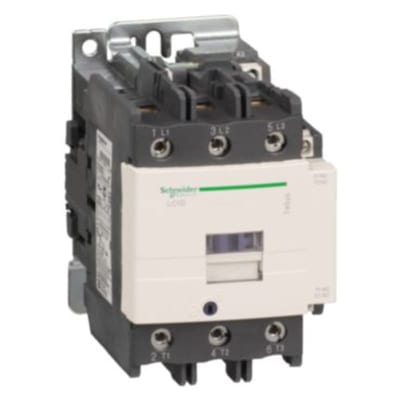

Schneider Electric TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 48 V AC 50/60 Hz coil LC1D95E7
Schneider Electric

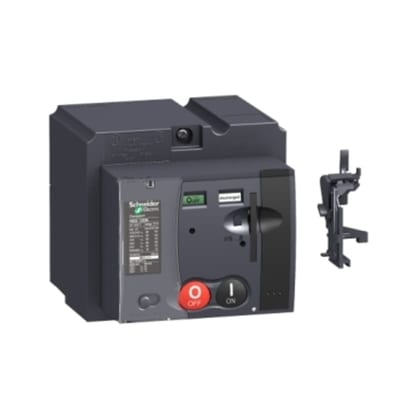

Schneider Electric standard motor mechanism module MT100/160, ComPact NSX100/160, 48/60 VAC 50/60 Hz LV429440
Schneider Electric

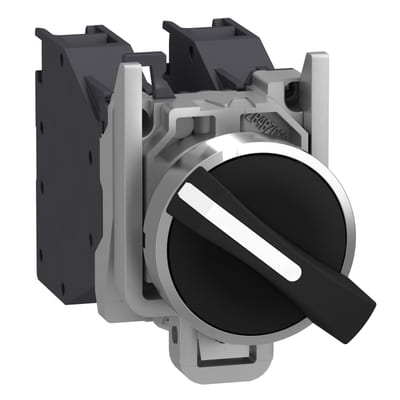

Schneider Electric Selector switch, Harmony XB4 - ATEX D, metal, 22mm, 3 positions, black standard handle, stay put, screw clamp terminals, 2NO XB4BD33GEX
Schneider Electric

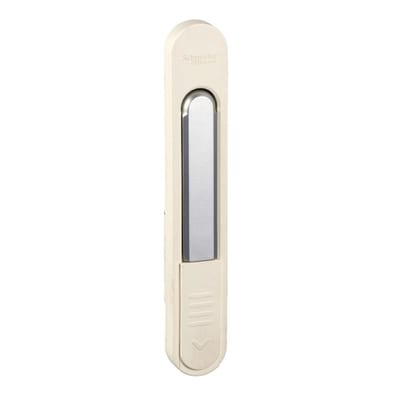

Schneider Electric Retrofit handle, PrismaSeT P, Rotary Handle Spare Parts with Rod LVS01219
Schneider Electric

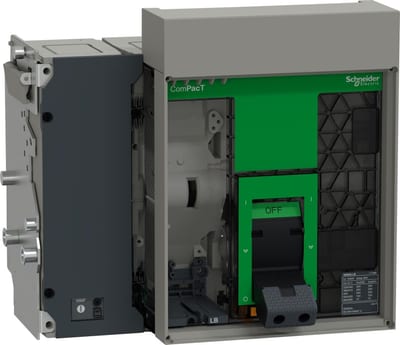

Schneider Electric Circuit breaker frame, ComPacT NS800LB, 200KA at 415VAC, 800A, 4P, drawout, manually operated, without control unit C080B4WM
