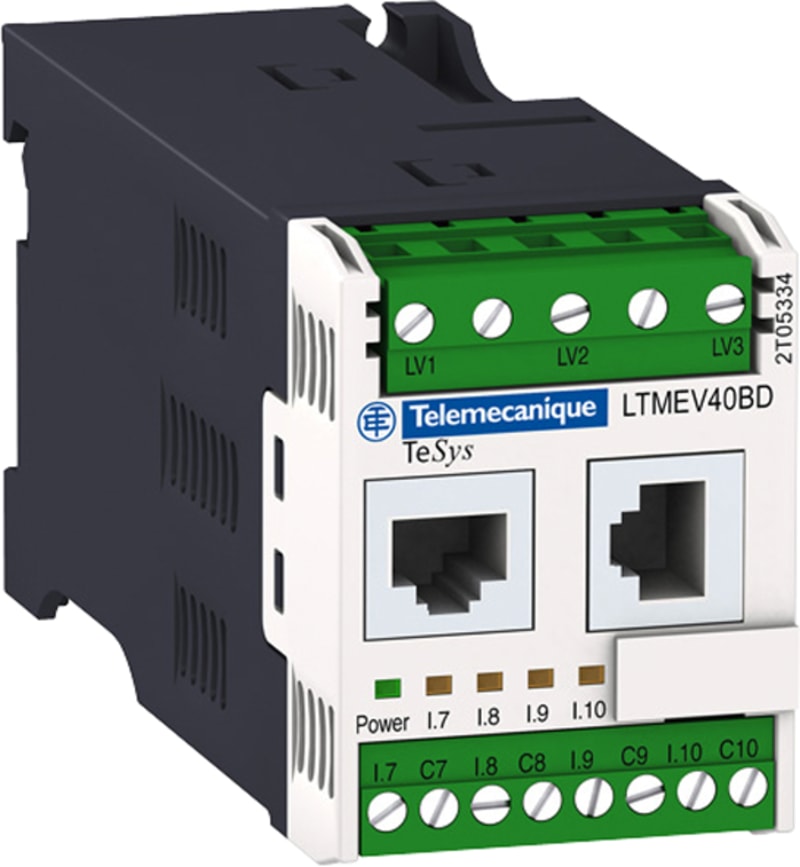

Tesys T Expansion Module 24VDC

Schneider Electric LTMEV40BD TeSys T Expansion Module 24VDC.

Manufacturer part number (MPN)

LTMEV40BD

EAN / GTIN

3389119404921

Sales unit

pcs

Package quantity

20 pcs

Voltage

24 V DC

Range

TeSys

Product name

TeSys T

Device short name

LTME

Product or component type

Extension module

Device application

Equipment monitoring and control

Range compatibility

TeSys TeSys T LTMR motor controller

Supply

Via the controller

[Ui] rated insulation voltage

690 V conforming to EN/IEC 60947-1; 690 V conforming to CSA C22.2 No 14; 690 V conforming to UL 508

[Uimp] rated impulse withstand voltage

6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1; 0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1

Logic input number

4

Input current

7 mA

Current state 0 guaranteed

Logic input: < 5 V and <= 15 mA for 5 ms

Current state 1 guaranteed

Logic input: < 15 V and 2...15 mA for 15 ms

maximum output switching frequency

2 Hz

maximum operating rate

1800 cyc/h

Contacts type and composition

Without

Metering type

Voltage U21, U32, U13, V1, V2, V3; Imbalance voltage; Frequency; Calculated active and reactive energy (+/- W.h, +/- VAR.h); Reactive power Q, Q1, Q2, Q3; Power factor; Active power P, P1, P2, P3

Measurement accuracy

1 % voltage (100...830 V); 3 % power factor; 5 % active and reactive power

Overvoltage category

III

Connection pitch

5.08 mm

Connections - terminals

Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible with cable end; Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) solid without cable end; Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) flexible with cable end; Control circuit: connector 2 cable(s) 0.2…1.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 2 cable(s) 0.5…1.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) solid without cable end

Tightening torque

Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm

Pollution degree

3

Electromagnetic compatibility

Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4; Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4; Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6; Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5; Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5; Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5; Voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5; Voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5

Width

45 mm

Height

61 mm

Depth

120.7 mm

Product weight

0.21 kg

Compatibility code

LTME

Standards

IEC 60947-4-1; UL 508; EN 60947-4-1; IACS E10; CSA C22.2 No 14

Product certifications

UL; NOM; ATEX; BV; CSA; EAC; RINA; LROS (Lloyds register of shipping); DNV; ABS; GL; KERI; RMRoS; C-Tick; CCC

IP degree of protection

IP20

Protective treatment

12 x 24 hour cycles conforming to EN/IEC 60068-2-30; 48 h conforming to EN/IEC 60070-2-11; TH conforming to EN/IEC 60068

Fire resistance

650 °C conforming to EN/IEC 60695-2-12; 960 °C conforming to UL 94

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…80 °C

Operating altitude

<= 2000 m without derating

Mechanical robustness

Shocks half its wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27; Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6; Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6

Number of Units in Package 1

1

Number of Units in Package 2

20

Country of origin

CN

Warranty (in months)

18

Model

Digital module

Rated control supply voltage DC

24 V

Voltage type for actuating

DC

Number of digital inputs

4

Input for thermistor connection

No

Input for earth fault detection

No

Input for analogue temperature sensor

No

Degree of protection (IP)

IP20

HS Code

8537.10
