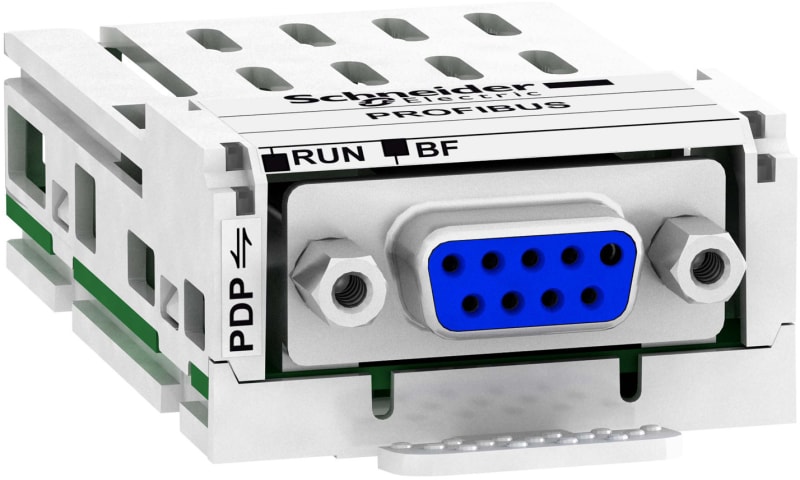

Schneider Electric Profibus DP communication module VW3A3607

Schneider Electric VW3A3607 — Profibus DP communication module.

Manufacturer part number (MPN)

VW3A3607

EAN / GTIN

3606480177583

Sales unit

pcs

Package quantity

208 pcs

Range of product

Altivar

Product or component type

Communication module

Accessory / separate part category

Communication accessories

Product compatibility

Lexium 32M

Range compatibility

Altivar 32; Altivar Machine ATV340 except Sercos drives; Altivar Easy 610; Lexium 32; Altivar Process ATV900; Altivar Process ATV600; Altivar Machine ATV320; Altivar Process Modular

Communication port protocol

Profibus DP V1

Electrical connection

1 female connector SUB-D 9

Transmission rate

9.6 kbps...12 Mbps

Addressing

1...126 configurable by graphic terminal/SoMove software; Configuration settings

Communication service

4 configurable telegrams; Mapping of the process data from the master; Parameters management compliant with PROFIdrive V4.1; Several DP V1 messaging modes; Drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402)

Display type

1 LED for RUN; 1 LED for bus fault (BF)

diagnostic function

Diagnostic data with VSD status; Host drive handled from two masters (MS0 and MS1); Standard identification and maintenance requests

Bus profile

PROFIdrive; CiA 402

Standards

IEC 61800-7-201 (CiA 402)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.700 cm

Package 1 Width

6.100 cm

Package 1 Length

9.000 cm

Package 1 Weight

65.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

100

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.643 kg

Country of origin

CN

Warranty (in months)

18

Type of accessory/spare part

Communication module

Accessory

Yes

Spare part

No

HS Code

8504.40

• EAN 3606480177583
• SAP 1000473379
• Code 8583184
