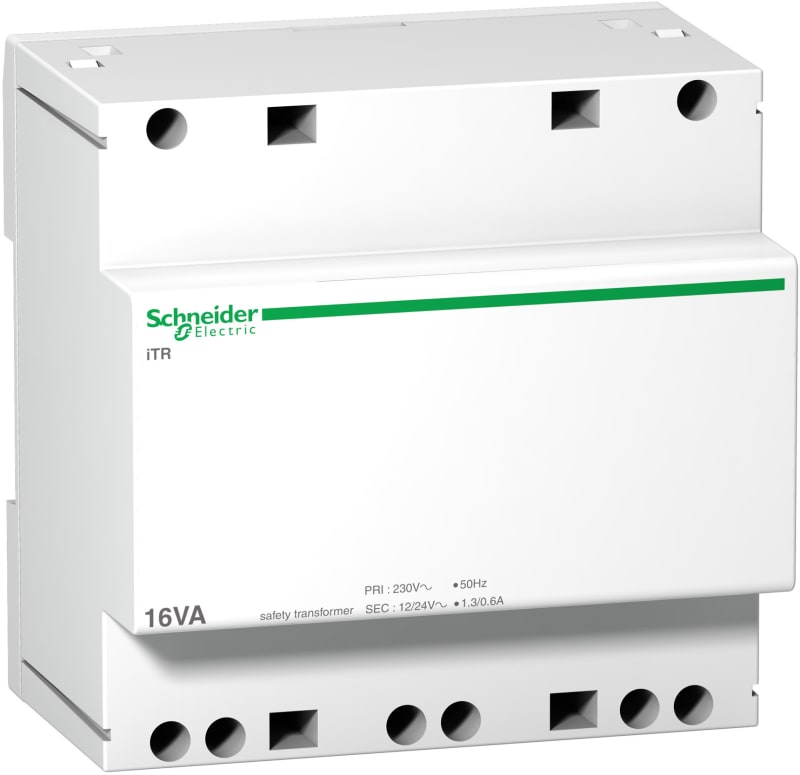

Schneider Electric A9A15218 modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 16 VA
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric A9A15218 modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 16 VA is listed under Electrical Components / Modular Devices. Sales unit: pcs; Package quantity: 14 pcs; Transformer type: Safety transformer; Range: Acti9; Range of product: Acti9; Product name: Acti9 iTR.
Technical Specifications
- Manufacturer part number (MPN)
- A9A15218
- EAN / GTIN
- 3606480097805
- Sales unit
- pcs
- Package quantity
- 14 pcs
- Transformer type
- Safety transformer
- Range
- Acti9
- Range of product
- Acti9
- Product name
- Acti9 iTR
- Product or component type
- Transformer
- Device short name
- iTR
- [Ue] rated operational voltage
- 230 V AC 50 Hz
- Output voltage
- 12/24 V: +/-5 % on load; 14/28 V: off load
- Output short-circuit protection
- Built-in
- rated power in VA
- 16 VA
- Temperature derating table
- 16 VA 35 °C; 15.2 VA 40 °C; 12.8 VA 50 °C; 9.6 VA 55 °C; 7.2 VA 60 °C
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 10
- Height
- 89 mm
- Width
- 90 mm
- Depth
- 60 mm
- Colour
- White
- Auxiliary connection terminal
- Tunnel type terminals 4 mm²
- Wire stripping length
- 5 mm
- Tightening torque
- 0.5 N.m
- Standards
- EN 61558-2-6; EN 60742; IEC 61558-2-6
- Product certifications
- NF
- Overvoltage category
- Class II with terminal shields in option
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -25…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 9.500 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 1.080 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 8
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 9.055 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of transformer
- Safety transformer
- With on/off switch
- No
- Length
- 60 mm
- Width in number of modular spacings
- 5
- Surface mounting
- No
- Short-circuit protected
- Yes
- Primary voltage
- 230 V
- Secondary voltage 1
- 12 V
- Secondary voltage 2
- 24 V
- Secondary amperage 1
- 1.33 A
- Secondary amperage 2
- 0.66 A
- Temperature protection
- Yes
- Max. power loss
- 3.5 W
- Flush-mounted installation
- No
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480097805
- SAP 1000343039
- Code 81002652
Product Documentation
More from Schneider Electric
Schneider Electric
Link set ROTARY, 40A-65A VERT
LAD9R3
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX160S DC, 100KA/750VDC, 3 poles, 160A frame rating, without trip unit C16S3D
Schneider Electric
Schneider Electric Thermoelectric valve drive, KNX, 230V, IP54, polar white MTN639125
Schneider Electric
Partition Wall for 2-Module Wall Box
IMT80312
Schneider Electric
Schneider Electric A9F07170 ACTI9 IC60H Miniature Circuit Breaker 1P 0.5 A, Curve C
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1000X400MM, 2 doors, IP55 NSYSFN2010402D
Schneider Electric
Schneider Electric spreaders 45 mm to 70 mm pitch, ComPact NSX 400/630, 4 poles, set of 4 parts LV432493
Schneider Electric

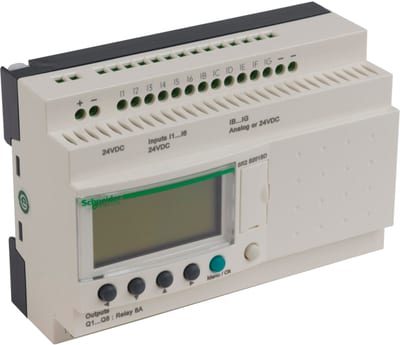

Schneider Electric compact smart relay Zelio Logic - 20 I O - 24 V DC - clock - display SR2B201BD
