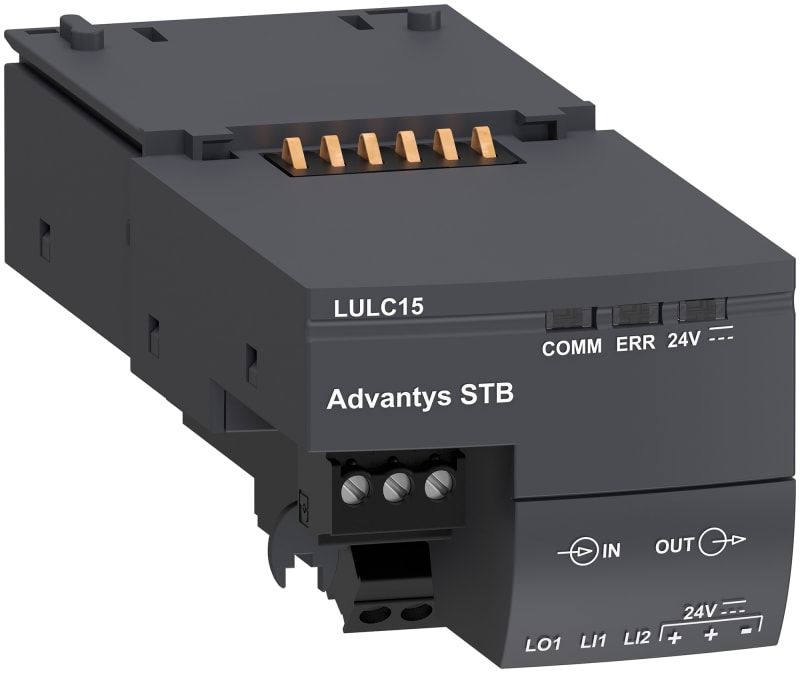

Schneider Electric LULC15 Communication Module for TeSys U, Advantys STB.

Manufacturer part number (MPN)

LULC15

EAN / GTIN

3389118212916

Sales unit

pcs

Package quantity

35 pcs

Range

TeSys

Device short name

LUL

Product or component type

Communication module

Product compatibility

LUCC; LUCA; LUCL; LUCM; LUCB; LUCD

Device application

Communication

Range compatibility

TeSys TeSys U LUB non reversing power base; TeSys TeSys U LU2B reversing power base

main function available

Communication module

mounting mode

Plug-in

Mounting location

Front side

Physical interface

CAN

Bus type

Advantys STB

Cable connector type

Fire wire

Communication port protocol

CAN2.B; CAN2.0A

Addressing

Self-addressing

Transmission rate

800 kbit/s

Current consumption

1.5 mA at 24 V DC 20...28 V

Logic input

Positive at 24 V DC - 7 mA

Response time

10 ms +/- 30 % change to state 0; 10 ms +/- 30 % change to state 1

Input type

Resistive

Number of outputs

2 dedicated to starter-controller coil operation; 1

[Us] rated supply voltage

24 V DC

Output current

<= 500 mA

Switching current capacity

0.5 mA at 24 V

Local signalling

3 LEDs front panel

Connection pitch

3.81 mm

Connections - terminals

Screw clamp terminals 1 cable(s) 0.14…1 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.14…1 mm²rigid without cable end; Screw clamp terminals 1 cable(s) 0.25…0.5 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 0.25…1 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.14…0.5 mm²rigid without cable end; Screw clamp terminals 2 cable(s) 0.14…0.75 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.25…0.34 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end

Associated cable type

AWG 26...AWG 16

Tightening torque

0.2…0.25 N.m2.5 mm

Ambient air temperature for operation

-25…55 °C

IP degree of protection

IP20 conforming to IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

35

Country of origin

FR

Warranty (in months)

18

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

With potential separation

Yes

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

45 mm

Height

45 mm

Depth

110 mm

HS Code

8517.62
