V.RAIL BRACKET 3200A 800 115mm
Pricing
Request a quote
We reply within 24 hours
Product Description

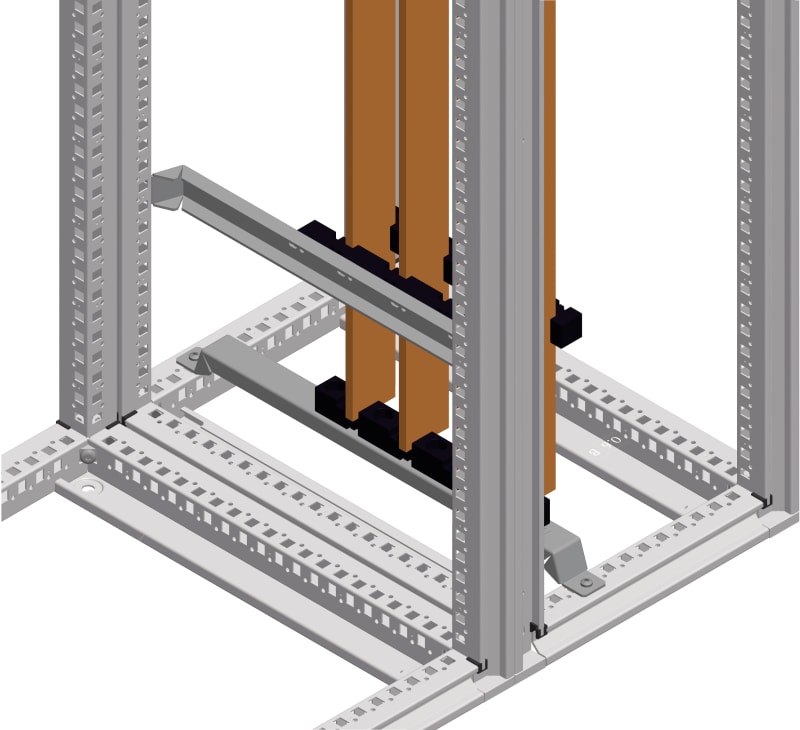

Schneider Electric NSYBVS800L 2 vertical rail brackets - 3200A 10 mm - Distanse 115mm - for 800mm vidde.
Technical Specifications
- Manufacturer part number (MPN)
- NSYBVS800L
- EAN / GTIN
- 3606480211461
- Sales unit
- pcs
- Rated current
- 3200 A
- Range
- PanelSeT
- Accessory / separate part category
- Busbar accessory
- Product or component type
- Busbar support
- Anwendung
- Multi-purpose; Prisma application
- Enclosure nominal dimensions
- -
- Mounting location
- On structure of enclosure
- Busbar position
- Vertical
- Range compatibility
- Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma POLAR WHITE
- Cubicle-device connection
- Linergy LGYE lateral busbar - fixed; Linergy BS lateral busbar - fixed
- Device composition
- fixing elements; 1 metal support; 2 insulating bar support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element
- Width
- Fixing centers: 750 mm; Nominal: 800 mm
- Depth
- 39 mm
- [In] rated current
- 3200 A
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 115 mm
- Max. rated current
- 3200 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480211461
- SAP 1200496796
- Code 82641059
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Pilot light, Harmony XB4, metal, white, 22mm, universal LED, plain lens, 24V AC DC, compact push in terminals XB4BVB15
Schneider Electric
Schneider Electric Complete selector switch, Harmony XB4, Explosive atmosphere, 455 Key swith 2 positions free at left/right XB4BG41GEX
Schneider Electric
M340 Cable FTB 20 LED, 5M
BMXFTW501
Schneider Electric
Emergency stop sign with LED 230V SP
ZBY9W2M430
Schneider Electric
FDP221 battery enclosure 4X12AH
FFS00704620
Schneider Electric
Sign flush in plastic with text (ZBYFP2103)
Schneider Electric
Current Transformer 1500/5 Rail 38X102
METSECT5DH150
Schneider Electric
Modular Blank Plate with Hinges (NSYMPCH156)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYBVS800L?
- NSYBVS800L can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYBVS800L.
- What is the HS code for NSYBVS800L?
- The customs tariff (HS) code for NSYBVS800L is 7326.90.
- Who manufactures NSYBVS800L?
- NSYBVS800L is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for NSYBVS800L?
- Yes — the NSYBVS800L datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYBVS800L?
- The minimum order quantity is 1.
- Is NSYBVS800L available?
- Yes — NSYBVS800L is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
