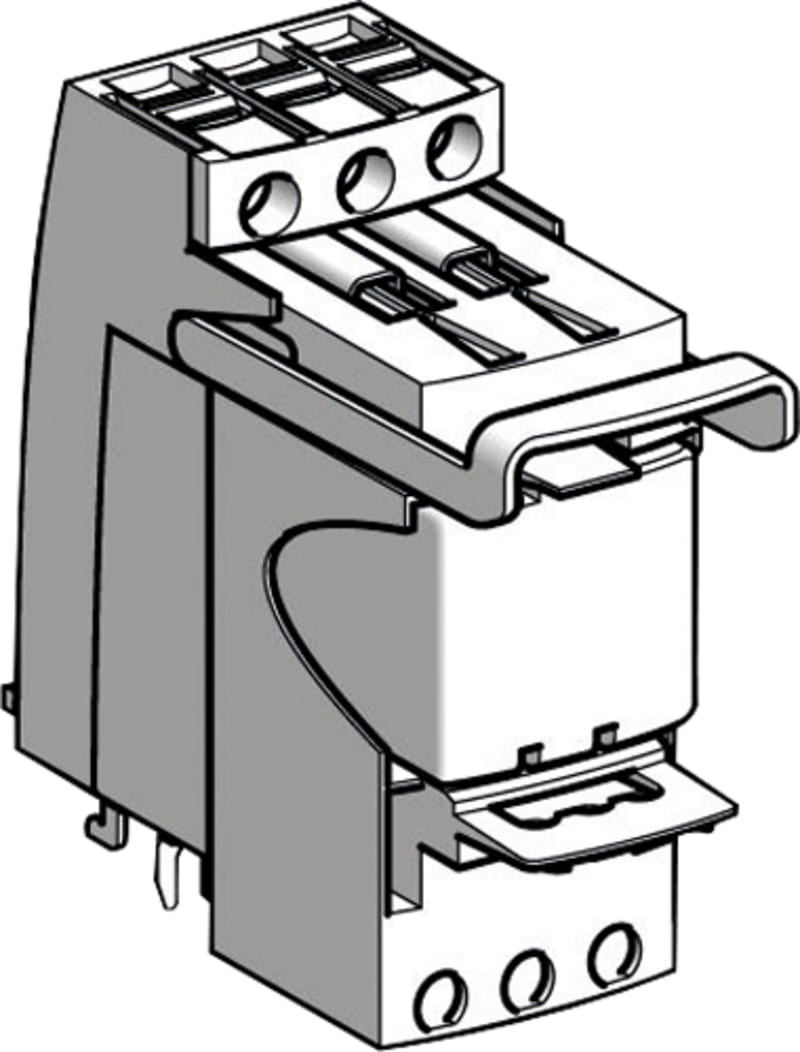

Schneider Electric LUALB1 TeSys Ultra Limiter Disconnector 32 A, 130 kA at 440 V

Schneider Electric LUALB1 is a short-circuit limiter disconnector from the TeSys Ultra range, rated 32 A conventional thermal current with a 130 kA conditioned short-circuit current at 440 V and a 50 kA activation threshold. The unit mounts directly on TeSys LUB or LU2B power bases and terminates flexible or solid conductors up to 10 mm² by screw connection. Typical use is protecting a TeSys Ultra motor starter against high-energy faults.

Manufacturer part number (MPN)

LUALB1

EAN / GTIN

3389110366945

Sales unit

pcs

Package quantity

5 pcs

Breaking capacity

130 kA

Range

TeSys

Range of product

TeSys Ultra

Device short name

LUA

Product or component type

Limiter disconnector

Product compatibility

LUB; LU2B

[Ith] conventional free air thermal current

32 A

Activation threshold

50 kA

[Ui] rated insulation voltage

690 V conforming to EN 60947-1; 690 V conforming to IEC 60947-1

mounting mode

Direct

Connections - terminals

Connector 1 x 1…10 mm² flexible without cable end; Connector 1 x 1…6 mm² flexible with cable end; Connector 2 x 1…6 mm² flexible with cable end; Connector 2 x 1…6 mm² flexible without cable end; Connector 1 x 1.5…10 mm² solid; Connector 2 x 1.5…6 mm² solid

Tightening torque

1.9…2.5 N.m flat Ø 6 mm; 1.9…2.5 N.m Philips No 2

Product weight

0.31 kg

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

Mounting method

Direct attachment

Rated permanent current Iu

32 A

Conditioned rated short-circuit current Iq

130 kA

Short-circuit current limiter

Yes

Max. apparent power

35000 VA

Country of origin

United States

HS Code

8531.80

• EAN 3389110366945
• SAP 1000017643
• Code 8146026
