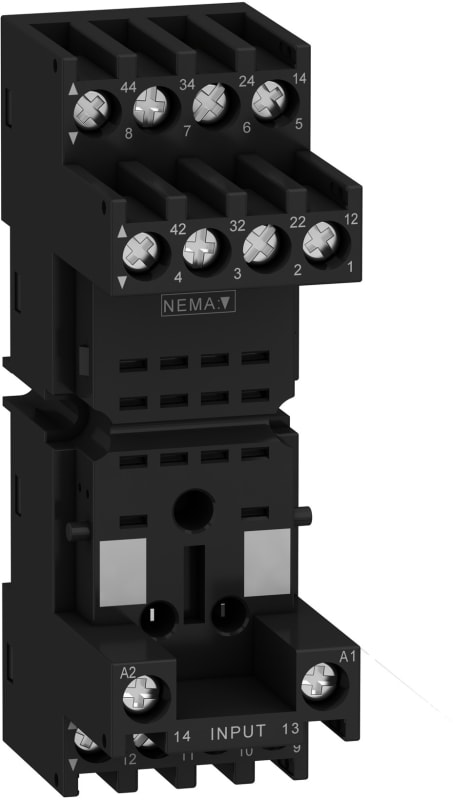

Schneider Electric Socket, mixed contact, relay type RXM2 RXM4, connector connection, 250 V AC RXZE2M114M
Pricing
Request a quote
We reply within 24 hours
Product Description
Base with mixed terminals, 4CO, compatible with plug-in relays RPM, RXM, RXM and RXM.
Technical Specifications
- Manufacturer part number (MPN)
- RXZE2M114M
- EAN / GTIN
- 3389119404259
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony Electromechanical Relays; Harmony Timer Relays
- Product compatibility
- Plug-in relay RXM with 2 C/O contact; Plug-in relay RXM with 4 C/O contact; Plug-in relay REXL with 2 C/O contact; Plug-in relay REXL with 4 C/O contact; Plug-in relay 782H with 4 C/O contact
- Device short name
- RXZ
- [Ith] conventional free air thermal current
- 10 A
- Product or component type
- Socket
- Contacts type and composition
- 4 C/O
- [Ue] rated operational voltage
- < 250 V conforming to IEC; < 300 V conforming to UL
- Connections - terminals
- Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end
- Shape of pin
- Flat
- Tightening torque
- < 1 N.m for M3 screw(s)
- Fixing mode
- By screw (panel); Clip-on (35 mm symmetrical DIN rail)
- Wire stripping length
- 8 mm
- Contact terminal arrangement
- Mixed
- [Uimp] rated impulse withstand voltage
- 4 kV
- Overvoltage category
- III
- Pollution degree
- 3
- Sale per indivisible quantity
- 10
- Width
- 27 mm
- Product weight
- 0.055 kg
- IP degree of protection
- IP20 conforming to IEC 60529
- Dielectric strength
- 2500 V
- Standards
- IEC 61984
- Product certifications
- UL; CSA; Lloyd's
- Marking
- CE
- Ambient air temperature for storage
- -40…85 °C
- Ambient air temperature for operation
- -40…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 230
- Country of origin
- CN
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389119404259
- SAP 1000073446
- Code 8739188
Product Documentation
