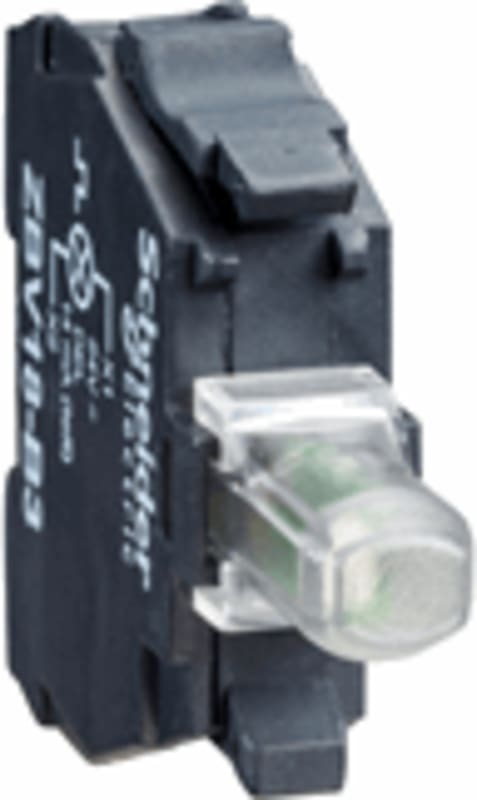

LAMPEH. M/ LED 230 VAC, White

Schneider Electric ZBVM1 Signallamp holder White 220V LED.

Manufacturer part number (MPN)

ZBVM1

EAN / GTIN

3389110090031

Sales unit

pcs

Package quantity

5 pcs

Voltage

230 V AC

Range of product

Harmony XB4; Harmony XB5

Product or component type

Light block

Device short name

ZBV

Sale per indivisible quantity

5

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Signalling type

Steady

Light source

Universal LED

Bulb base

Integral LED

Light block supply

Direct

Light source colour

White

[Us] rated supply voltage

230...240 V AC at 50/60 Hz

Product weight

0.017 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Supply voltage limits

195…264 V AC

Current consumption

19 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Mounting of block

Front mounting

Electrical composition code

M1; M2; M3; M4; M5; M6; M10; MF1; P1; P2; PF1

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

UL 508; IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-5; JIS C8201-1

Product certifications

CSA; UL listed

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Supply voltage

230...240 V

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

800

Country of origin

FR

Warranty (in months)

18

Lamp holder

None

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

230 V

Rated voltage Ue at AC 60 Hz

230 V

Voltage type for actuating

AC

HS Code

8531.80

• EAN 3389110090031
• SAP 1000042287
• Code 8762481
