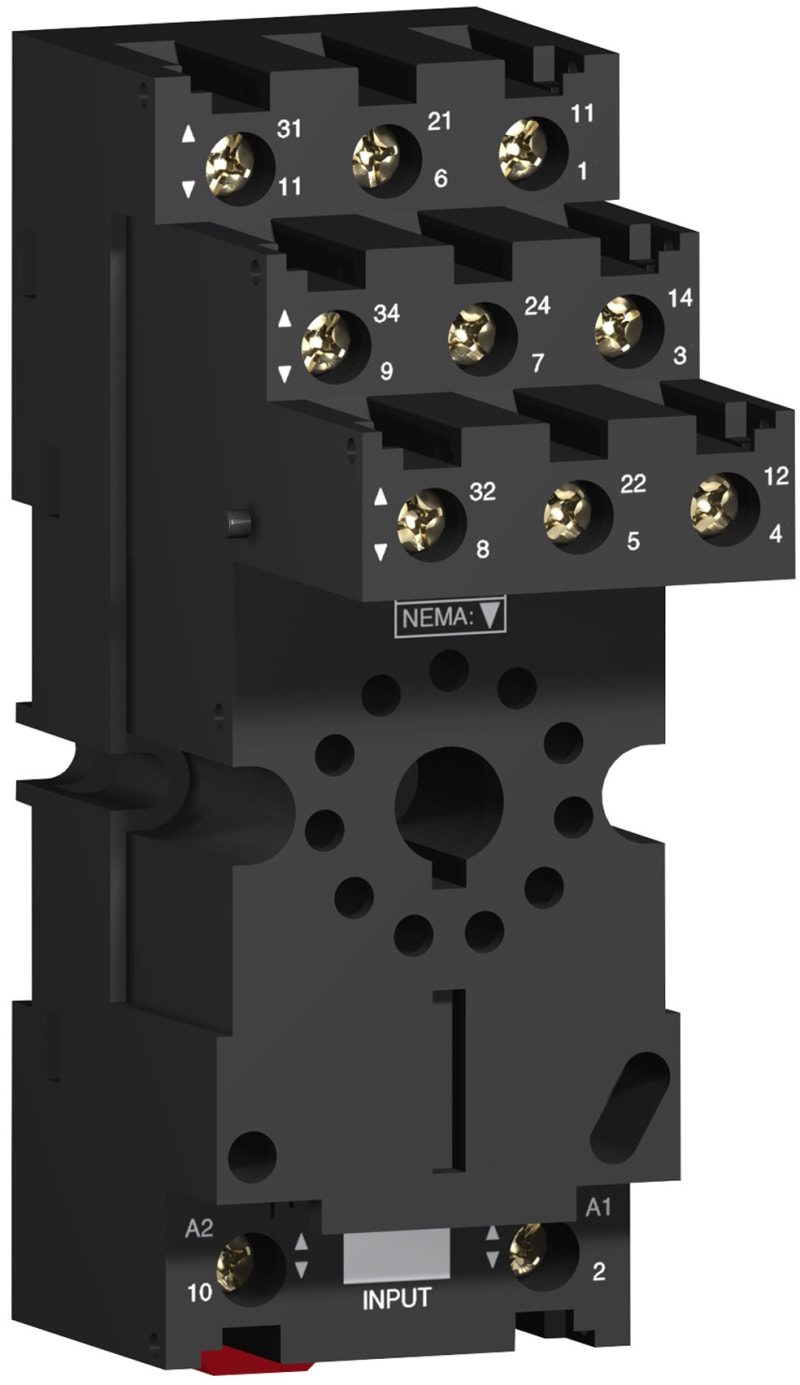

Plinth Flatst with SEP. TERM. 3CO

Schneider Electric RUZSC3M Plinth rundtst with sep. term. 3C.

Manufacturer part number (MPN)

RUZSC3M

EAN / GTIN

3389119403238

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RUZ

Product or component type

Socket

Product compatibility

Plug-in relay RUM with 3 C/O contact

[Ith] conventional free air thermal current

12 A

[Ue] rated operational voltage

< 250 V

Contacts type and composition

3 C/O

Connections - terminals

Connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Cylindrical

Tightening torque

< 1 N.m for M3.5 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

Contact terminal arrangement

Separate

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

36 mm

Product weight

0.1 kg

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

CSA; UL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

80

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Height

105 mm

Depth

96 mm

With detachable clamps

No

Function extension possible

No

Number of pins

11

HS Code

8536.69

• EAN 3389119403238
• SAP 1000051799
• Code 8535062
