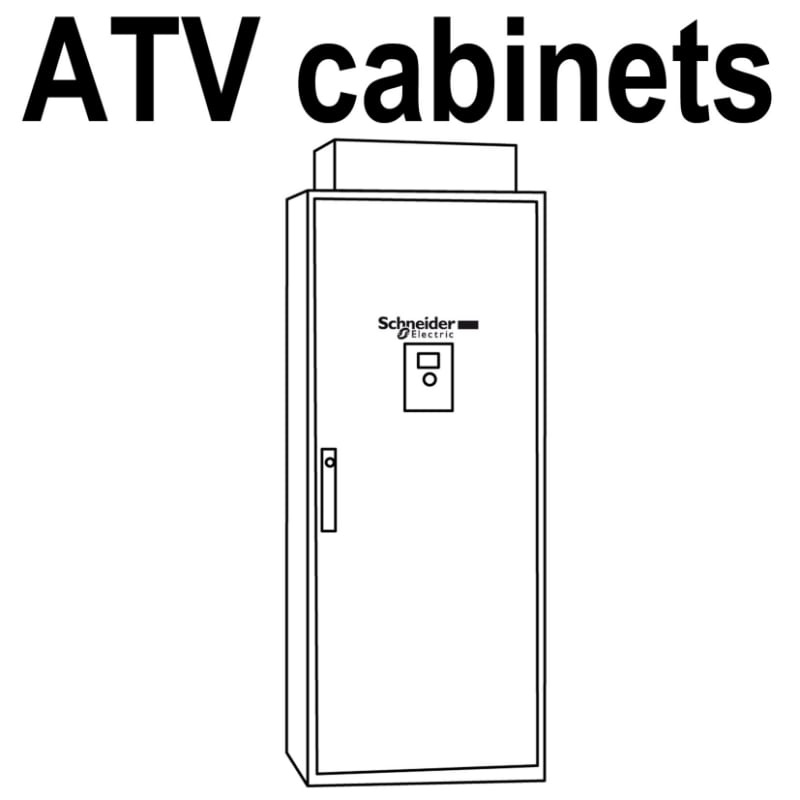

Brake unit 200kW 300hp
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7101 resistance braking unit - 200 kW - 400 V - for variable speed drive.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7101 EAN / GTIN: 3389119201636 HS code: 8504.40 Sales unit: pcs Power: 200 kW Range compatibility: Altivar 61Q; Altivar 71Q; Altivar 71; Altivar 61; Altivar Process ATV900 Product compatibility: ATV61HC25N4; ATV61HC31N4; ATV61QC20N4; ATV61QC25N4; ATV61QC31N4; ATV71HC20N4; ATV71HC25N4; ATV71HC28N4; ATV71QC16N4; ATV71QC20N4; ATV71QC25N4; Variable speed drive ATV930 without braking chopper 250 kW 380...480 V; Variable speed drive ATV930 without braking chopper 315 kW 380...480 V Thermal losses: 550 W minimum resistor value to associate: 1.05 Ohm Protection type: Integrated thermal protection by thermal probe Maximum braking power: 420 kW Permanent braking power: 200 kW at 400 V (at constant power and at engage threshold) Load factor: 0.05 for 420 kW at constant power and at engage threshold; 0.15 for 320 kW at constant power and at engage threshold; 0.5 for 250 kW at constant power and at engage threshold Activation threshold: 785 V DC +/- 1 % Maximum DC bus voltage: 850 V Product weight: 30 kg Volume of cooling air: 100 m3/h Operating position: Vertical IP degree of protection: IP20 Operating altitude: 2000 m Ambient air temperature for operation: -10…50 °C Ambient air temperature for storage: -25…70 °C Pollution degree: 2 conforming to EN 50178 vibration resistance: 0.2 gn Country of origin: CN Warranty (in months): 18
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3389119201636
- SAP 1200269868
- Code 82237832
Product Documentation
