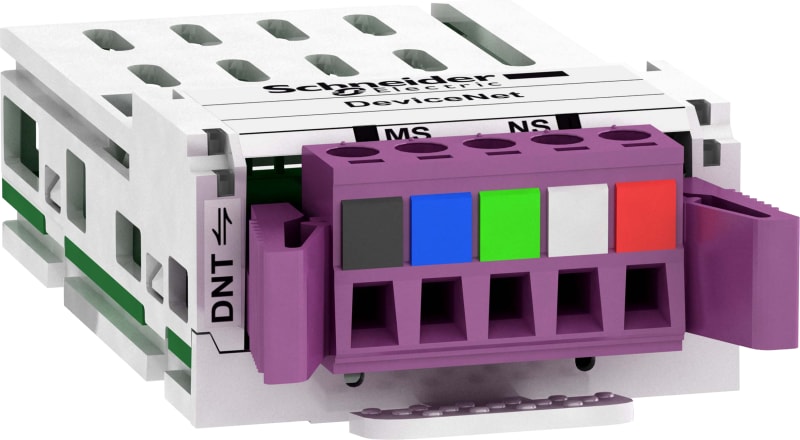

Schneider Electric Devicenet communication module VW3A3609
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3609 DeviceNet module.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3609
- EAN / GTIN
- 3606480198991
- Sales unit
- pcs
- Package quantity
- 48 pcs
- Range of product
- Altivar
- Product or component type
- Communication module
- Range compatibility
- Altivar Process Modular; Altivar 32; Altivar Process ATV600; Altivar Machine ATV340 except Sercos drives; Altivar Process ATV900; Altivar Machine ATV320
- Communication port protocol
- DeviceNet
- Electrical connection
- 1 connector 1 removable 5-way screw connector
- Transmission rate
- 125 kbps, 250 kbps and 500 kbps configurable
- Maximum cable distance between devices
- 100 m for 500 kbps; 500 m for 125 kbps
- Addressing
- 1...63 configurable by graphic terminal/SoMove software
- Communication service
- Inputs : polled, change of state, cyclic; Outputs : polled; ODVA AC drive and CiA 402 profile; Auto device replacement; Communication monitoring time out adjustable by DeviceNet configurator
- Display type
- 1 LED for MS (Module Status); 1 LED for NS (Network Status)
- diagnostic function
- Control mode received by graphic terminal; Received instruction by graphic terminal
- Bus profile
- CIP AC Drive; CiA 402
- Product weight
- 0.3 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- SE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Communication module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606480198991
- SAP 1000473338
- Code 8133645
