WALL-Mount Cabinet S3D without PL 3X4X1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D3415 Wall-mount cabinet S3D Without Pl 3X4X1.5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D3415
- EAN / GTIN
- 3606480159695
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 300 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV; GL; BV; UL; cUL
- Product weight
- 4.878 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.500 cm
- Package 1 Width
- 31.000 cm
- Package 1 Length
- 41.500 cm
- Package 1 Weight
- 4.878 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 28
- Package 2 Height
- 97.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 147.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 400 mm
- Height
- 300 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159695
- SAP 1000089580
- Code 8883079
Product Documentation
More from Schneider Electric
Schneider Electric
RC-Module 110-240V (RUW241P7)
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, advanced version, 24…48V wide band AC/DC coil LC1G265BEEA
Schneider Electric
Mounting plate f/ LR9G500 (LA9G3652)
Schneider Electric

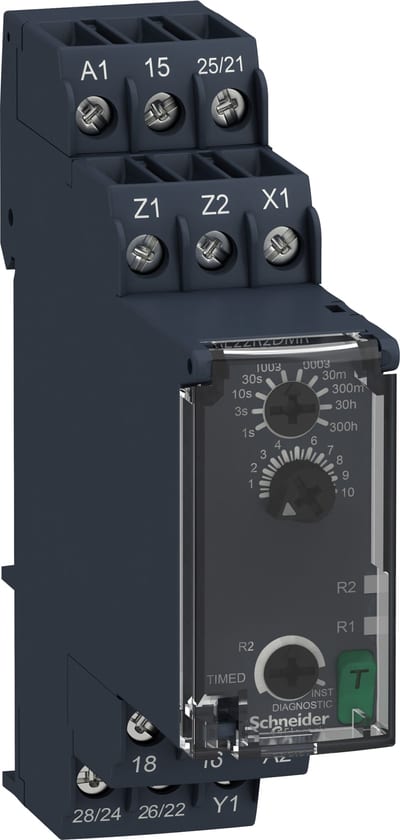

Schneider Electric Interval Timing Relay - 0.05S…300H - 24…240V AC/DC - 2C/O RE22R2MWMR
Schneider Electric

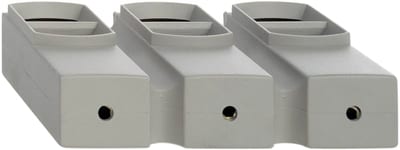

Schneider Electric Terminal block - Tesys F, D - set of 2 LA9F103
Schneider Electric

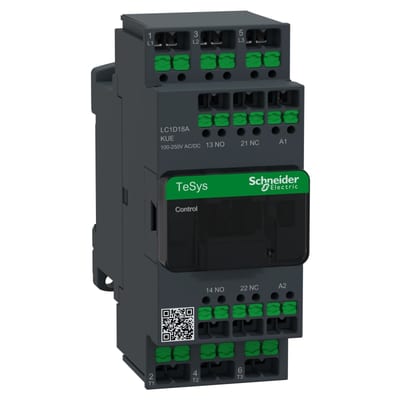

Schneider Electric Contactor, TeSys Deca Advanced, 3P(3NO), AC-3/3E, <=440V, 18A, 100...250V AC/DC coil, snap-in terminals LC1D18AKUE
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 48V AC standard coil, snap-in terminals CAD50AE7
Schneider Electric

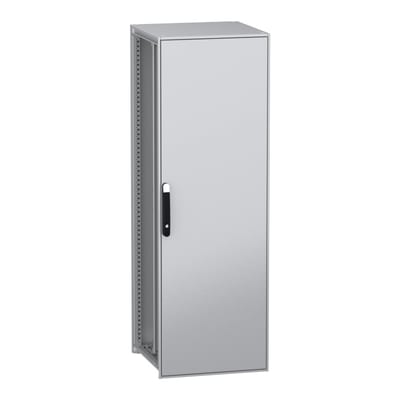

Floor-standing cabinet SFN m/m.pl 1800X600X600
