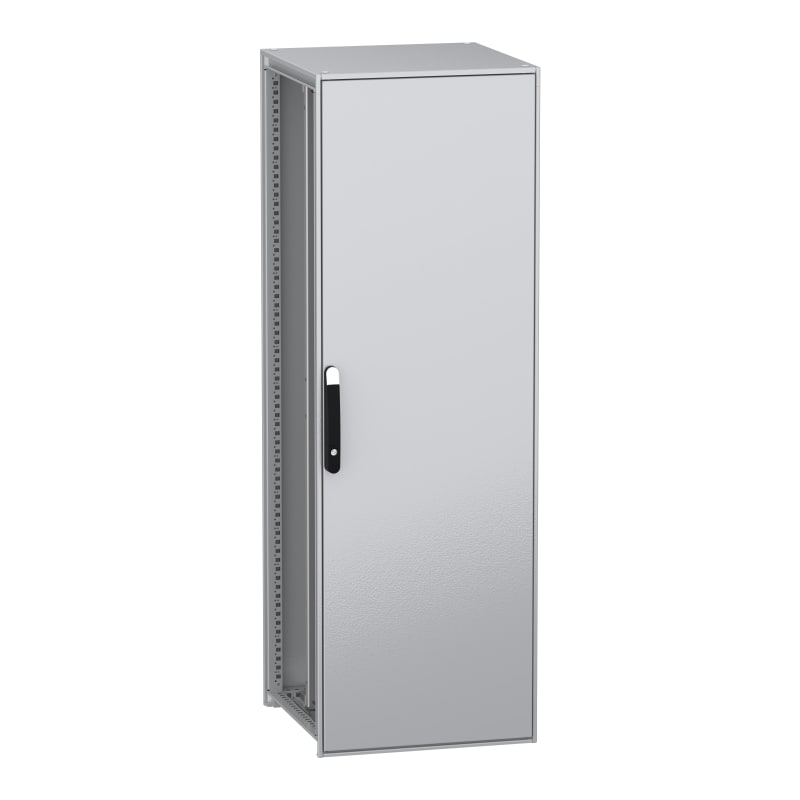

Floor-standing cabinet SFN m/m.pl 1800X600X600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN18660P Floor-standing cabinet byggbart, PanelSeT SFN, with mounting plate, IP55, 1800x600x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN18660P
- EAN / GTIN
- 3606486102770
- Sales unit
- pcs
- Dimensions
- 1800×600×600
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 1800 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 600 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 1 mounting plate
- Structure type
- Vertical uprights joined with top and bottom frames; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure; Formed from a single section
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Plain
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Rear; Front; Sides of enclosure
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 85.7 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 1800 mm
- Depth
- 600 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486102770
- SAP 1200727701
- Code 83866775
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W500MM, 3 rows, set of 2 NSYSUCR9050
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MicroLogic 2.2 trip unit 40A C10V32D040
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS630BN, 50KA at 415VAC, 630A, 3P, withdrawable, manually operated, without control unit C063N3WM
Schneider Electric

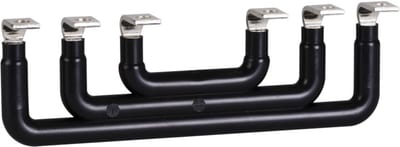

Y/D Connection 132kW
LA9D15017
Schneider Electric

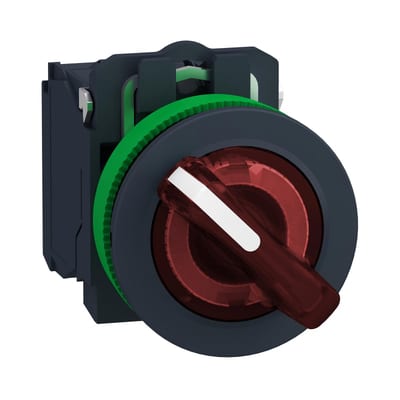

Schneider Electric Illuminated selector switch, Harmony XB5, grey plastic, red handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 110...120V AC XB5FK124G5
Schneider Electric

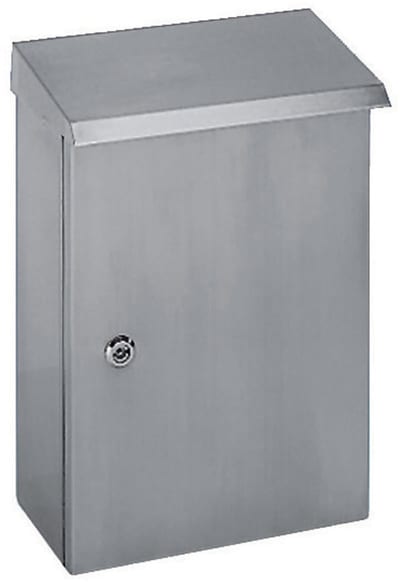

Rain hood Stainless (NSYTX8030)
Schneider Electric

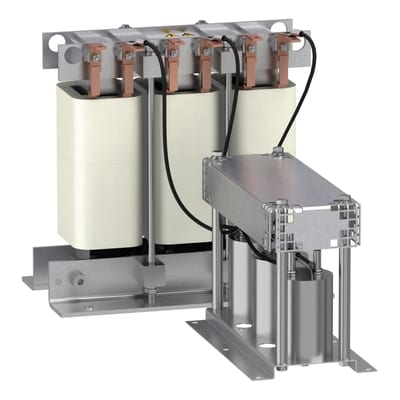

Sinusfilter 75A 690V 45-55kW IP20
VW3A5218
Schneider Electric

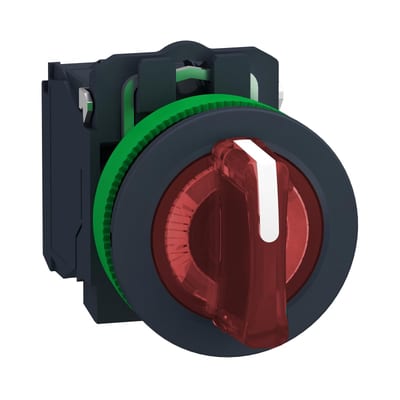

Schneider Electric Illuminated selector switch, Harmony XB5, grey plastic, red handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 110...120V AC XB5FK134G5
