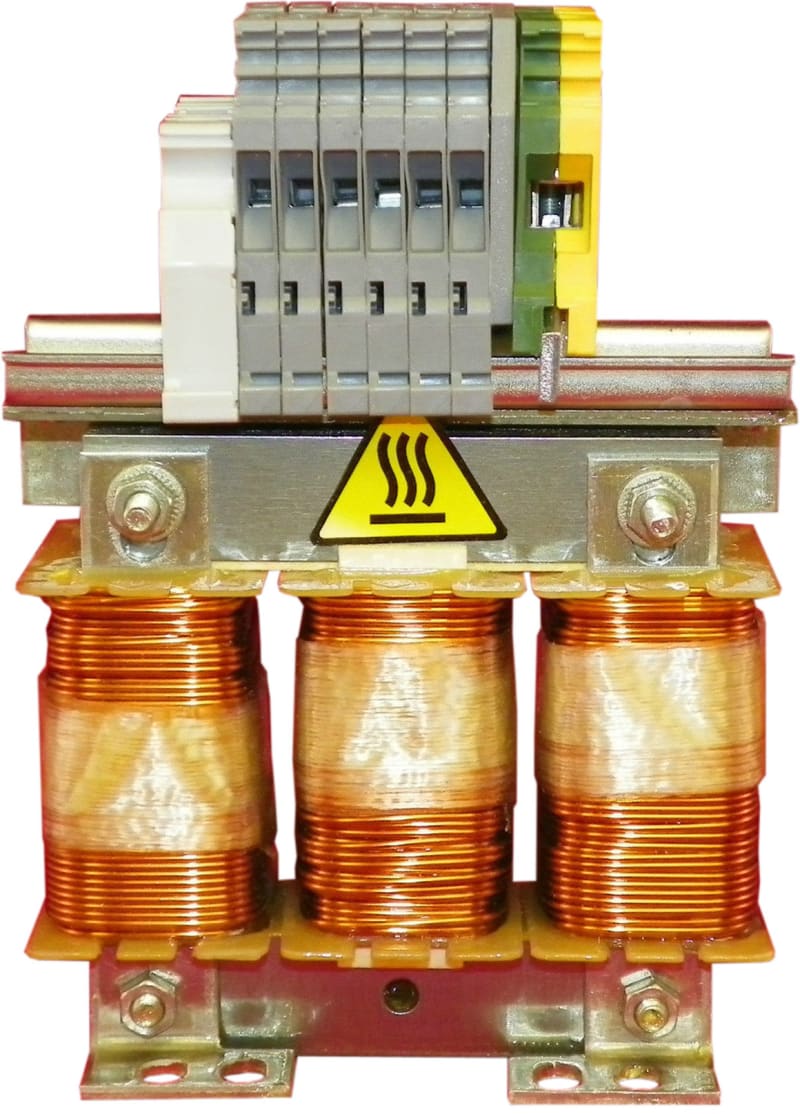

AC Nettdrossel 0,5MH 60A

Schneider Electric VW3A4555 AC nettdrossel 0,5MH 60A.

Manufacturer part number (MPN)

VW3A4555 EAN / GTIN: 3389118065949 Sales unit: pcs Range of product: Altivar Product or component type: Line/motor choke Product compatibility: LXM32MD85N4 - line choke - 1 per drive; LXM32MC10N4 - line choke - 1 per drive; Variable speed drive ATV340 motor: 15 kW 380...480 V - line choke - 1 per drive; ATV61CD15N4 - motor choke - 1 per drive; ATV61HD11M3X - line choke - 1 per drive; ATV61HD15N4 - motor choke - 1 per drive; ATV61HD18N4 - line choke - 1 per drive; ATV61HD22N4 - line choke - 1 per drive; ATV61HD30Y - line choke - 1 per drive; ATV61HD37Y - line choke - 1 per drive; ATV61HD45Y - line choke - 1 per drive; ATV61HU75M3 - line choke - 1 per drive; ATV61KD15N4 - motor choke - 1 per drive; ATV61WD18N4 - line choke - 1 per drive; ATV61WD18N4C - line choke - 1 per drive; ATV61WD22N4 - line choke - 1 per drive; ATV61WD22N4C - line choke - 1 per drive; ATV71HD11M3X - line choke - 1 per drive; ATV71HD18N4 - line choke - 1 per drive; ATV71HD22N4 - line choke - 1 per drive; ATV71HD30Y - line choke - 1 per drive; ATV71HD37Y - line choke - 1 per drive; ATV71HD45Y - line choke - 1 per drive; ATV71HU75M3 - line choke - 1 per drive; ATV71WD18N4 - line choke - 1 per drive; ATV71WD22N4 - line choke - 1 per drive; ATV312HD11M3 - line choke - 1 per drive; ATV312HD15M3 - line choke - 1 per drive; ATV32HD15N4 - motor choke - 1 per drive; Variable speed drive ATV340 motor: 18 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV340 motor: 22 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV320 motor: 15 kW 380...500 V - three phase - motor choke - 1 per drive; Variable speed drive ATV320 motor: 11 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 15 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 30 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 37 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 45 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 30 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 37 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 45 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 40 hp - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 50 hp - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 60 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 40 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 50 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 60 hp - 1 per drive number of phases: Three phase Range compatibility: Altivar 32; Altivar Machine ATV340; Lexium 62; Altivar 71; Altivar Machine ATV320; Altivar 312; Altivar Process ATV900; Altivar Process ATV600; Altivar 61; Lexium 32; Easy Altivar 310 Device application: Reduction of overvoltages at motor terminals; Reduction of current harmonics Value of inductance: 0.5 mH [In] rated current: 60 A Thermal losses: 94 W Electrical connection: Terminal 35 mm² / 0 AWG, 2.5…3 N.m power supply frequency: 50...60 Hz Max current: 1.65 x nominal current (duration = 60 s) Maximum voltage drop at rated load: 5 % Electrical insulation class: Class F minimum clearance distance: 5.5 mm IEC 60664 Leakage distance: 11.5 mm conforming to IEC 60664 Product weight: 11 kg Width: 180 mm Height: 210 mm Depth: 165 mm Standards: EN 50178; IEC 60076 (with HD398); VDE 0160 level 1 IP degree of protection: Choke: IP00; Terminals: IP10 Environmental characteristic: 3B1 conforming to IEC 721-3-3; 3C2 conforming to IEC 721-3-3; 3S1 conforming to IEC 721-3-3 Pollution degree: 2 conforming to EN 50178 Vibration resistance: 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 0…95 % Ambient air temperature for operation: 45…55 °C (with current derating of 2 % per °C); 0…45 °C (without current derating) Ambient air temperature for storage: -25…70 °C Operating altitude: <= 1000 m without current derating; <= 1000 m without derating Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 25.000 cm Package 1 Width: 29.500 cm Package 1 Length: 31.000 cm Package 1 Weight: 11.594 kg Unit Type of Package 2: S06 Number of Units in Package 2: 4 Package 2 Height: 75.000 cm Package 2 Width: 60.000 cm Package 2 Length: 80.000 cm Package 2 Weight: 59.500 kg Country of origin: CZ Warranty (in months): 18 Suitable as interference suppression reactance coil: No Suitable as net reactance coil: Yes Suitable as commutation reactance coil: No Suitable as ripple filter choke: No Suitable as output reactance coil: No Number of poles, primary side: 3 Rated operating frequency: 50–60 Hz Max. rated operation voltage Ue: 690 V Rated current AC: 60 A Rated inductance: 0.5 mH Degree of protection (IP): IP00 Relative short circuit voltage: 0 %

HS Code

8504.50

• EAN 3389118065949
• SAP 1000016618
• Code 8143362
