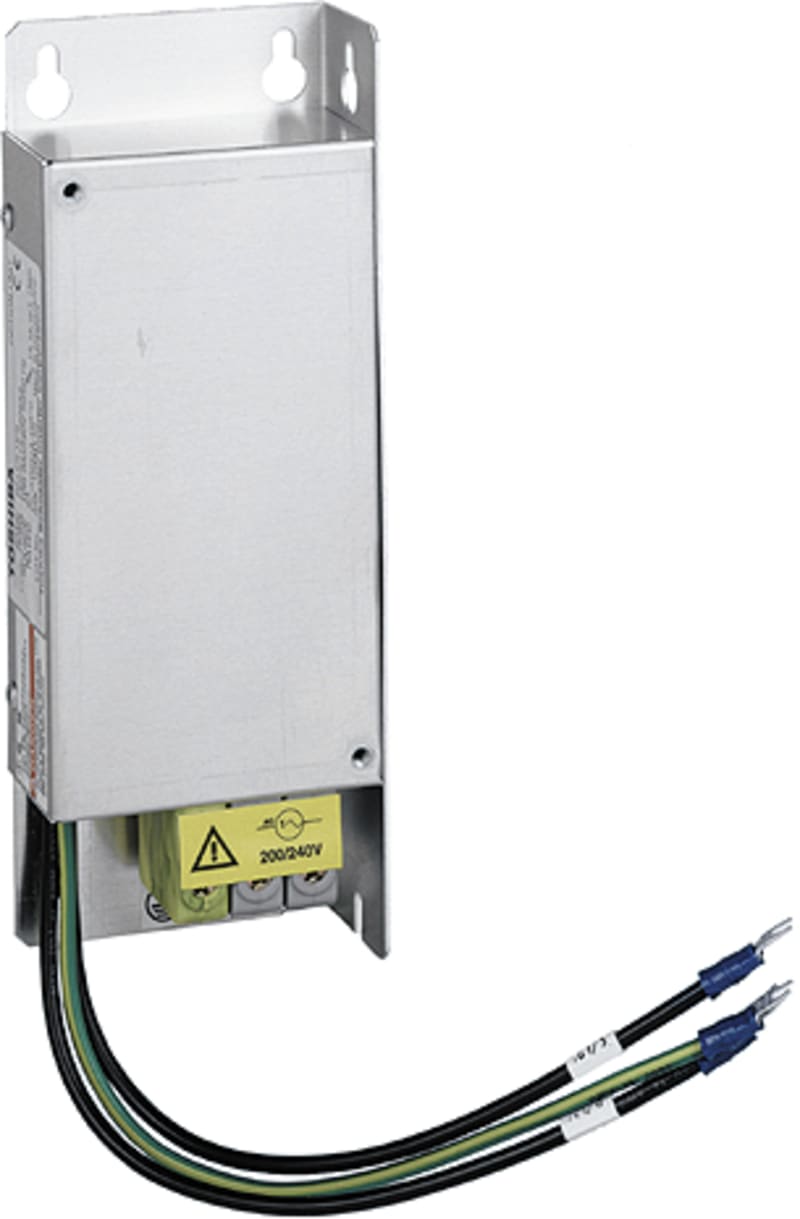

Schneider Electric additionnal EMC input filter - 3-Phase supply - 83 A VW3A31408

Schneider Electric VW3A31408 EMC filter ATV31, 3 X 230V, 83A.

Manufacturer part number (MPN)

VW3A31408

EAN / GTIN

3389110690774

Sales unit

pcs

Voltage

230 V

Range of product

Altivar

Product or component type

EMC input filter

Range compatibility

Altivar 312; Altivar Machine ATV320; Altivar 212

Product compatibility

ATV212HD11M3X; ATV212HD15M3X; ATV212HD18M3X; ATV312HD11M3; ATV312HD15M3; Variable speed drive ATV320...C motor: 11 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 15 kW, 200...240 V three phase

Product specific application

Radio interference input filter

[In] rated current

83 A

Thermal losses

16 W for ATV21HD15M3X; 23.1 W for ATV21HD18M3X; 35.2 W for ATV31HD11M3X; 9.1 W for ATV21HD11M3X

Network number of phases

Three phase

Electrical connection

Terminal 25 mm² 2 AWG

Tightening torque

4.5 N.m

maximum earth leakage current

14.5 mA at 480 V 60 Hz

power supply voltage

200…240 V

Tolerance

10 %

Product weight

5.3 kg

IP degree of protection

IP20; IP41 (upper part)

Relative humidity

0…93 % conforming to IEC 68-2-3

Ambient air temperature for operation

-10…50 °C

Ambient air temperature for storage

-25…70 °C

Operating altitude

<= 1000 m without current derating; <= 1000 m without derating; 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Standards

IEC 61800-3

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

TH

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

8548.90
