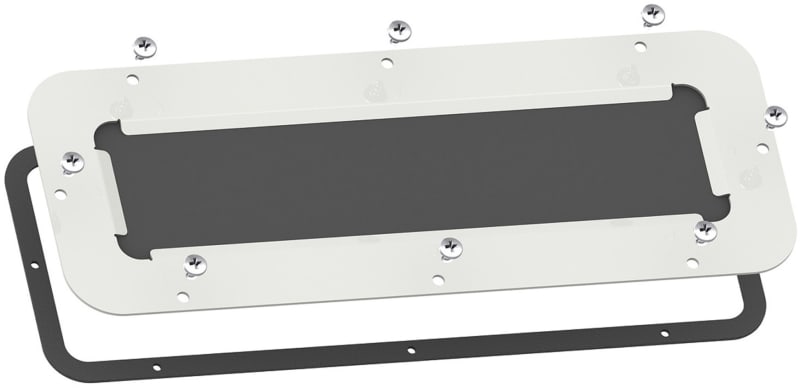

Flexicable flange 245X130
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTLCME Flexicable flange 245x130.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTLCME
- EAN / GTIN
- 3606480467639
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Flexicable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SF; PanelSeT S3D
- Mounting location
- Enclosure bottom
- Cable gland type
- Pierceable by screwdriver
- Type of gland plate
- Membrane
- Cable outer diameter
- 10…26 mm
- Cable entry
- Without
- Device composition
- 1 plate; membrane
- Quantity per set
- Set of 1
- Material
- Plate: steel; Membrane: HCE (heat curable elastomer)
- Colour
- Plate: grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Height
- 30 mm
- Width
- 245 mm; Real: 260 mm
- Depth
- 130 mm
- Product weight
- 0.536 kg
- thickness
- 1.5 mm
- Number of cut-out
- Undrilled
- Cut-out dimensions
- 178 x 63 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 13.500 cm
- Package 1 Length
- 26.000 cm
- Package 1 Weight
- 574.000 g
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 100
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 68.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cable screw gland
- Surface protection
- Untreated
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480467639
- SAP 1000402077
- Code 8475143
Product Documentation
