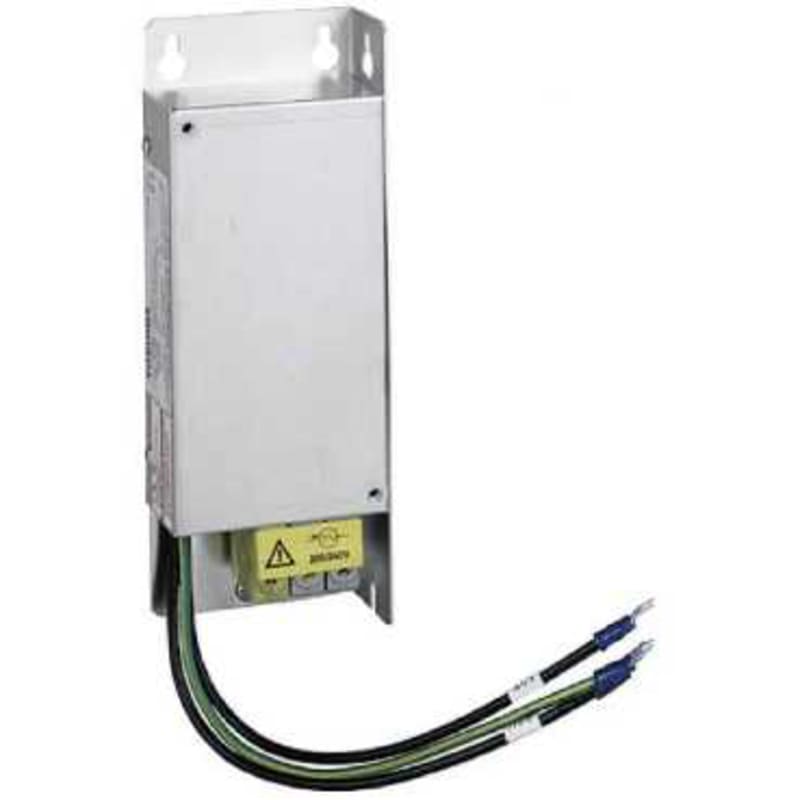

Schneider Electric additionnal EMC input filter - 3-Phase supply - 15 A VW3A31404
Part numberVW3A31404EAN / GTIN3389110689464HS code8548.90
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A31404 EMC filter ATV31, 3 X 230/400V, 15A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A31404
- EAN / GTIN
- 3389110689464
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230/400 V
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar 31C; Lexium 23 Plus; Altivar 312; Altivar 312 Solar; Altivar Machine ATV320; Lexium 05; Altivar 212
- Product compatibility
- Servo drive LXM23 motor: 0.75 kW; Servo drive LXM23 motor: 1 kW; Servo drive LXM23 motor: 1.5 kW; Servo drive LXM23 motor: 2 kW; Servo drive LXM23 motor: 3 kW; ATV212H075M3X; ATV212H075N4; ATV212HU15M3X; ATV212HU15N4; ATV212HU22M3X; ATV212HU22N4; ATV31C037N4; ATV31C055N4; ATV31C075N4; ATV31CU11N4; ATV31CU15N4; LXM05AD14N4; LXM05AD17M3X; LXM05BD14N4; LXM05BD17M3X; LXM05CD14N4; ATV312HU11M3; ATV312HU15M3; ATV312HU22M3; ATV312H037N4; ATV312H055N4; ATV312H075N4; ATV312HU11N4; ATV312HU15N4; Variable speed drive ATV320...C motor: 0.37 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 0.55 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 0.75 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 1.1 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 1.5 kW, 380...500 V three phase; Variable speed drive ATV320...C motor: 1.1 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 1.5 kW, 200...240 V three phase; Variable speed drive ATV320...C motor: 2.2 kW, 200...240 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 0.37 kW, 380...500 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 0.55 kW, 380...500 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 0.75 kW, 380...500 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 1.1 kW, 380...500 V three phase; Variable speed drive ATV320...W/ATV320...WS motor: 1.5 kW, 380...500 V three phase
- Product specific application
- Radio interference input filter
- [In] rated current
- 15 A
- Thermal losses
- 0.13 W for ATV21H075N4; 0.45 W for ATV21HU15N4; 0.47 W for ATV21H075M3X; 0.9 W for ATV21HU22N4; 1.6 W for ATV21HU15M3X; 3.3 W for ATV21HU22M3X; 9.9 W for ATV31HU11M3X
- Network number of phases
- Three phase
- Electrical connection
- Terminal 10 mm² 6 AWG
- Tightening torque
- 1.8 N.m
- maximum earth leakage current
- 15 mA at 200...480 V 50 Hz; 13.8 mA at 480 V 60 Hz; 6.7 mA at 230 V 60 Hz
- power supply voltage
- 200…240 V; 380…500 V
- Tolerance
- 10 %
- Product weight
- 1 kg
- IP degree of protection
- IP20; IP41 (upper part)
- Relative humidity
- 0…93 % conforming to IEC 68-2-3
- Ambient air temperature for operation
- -10…50 °C
- Ambient air temperature for storage
- -25…70 °C
- Operating altitude
- <= 1000 m without current derating; <= 1000 m without derating; 1000...3000 m with current derating 1 % per 100 m
- Vibration resistance
- 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Standards
- IEC 61800-3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- TH
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3389110689464
- SAP 1000257613
- Code 81148780
Product Documentation
Document preview: Schneider Electric VW3A31404 — OEM Product Page
More from Schneider Electric
Schneider Electric

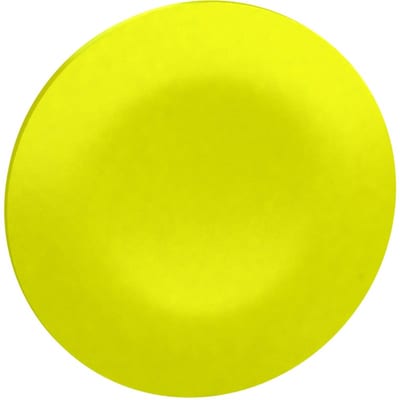

PUSH-BUTTON.CAP Unmarked Yellow
ZBA75
Schneider Electric

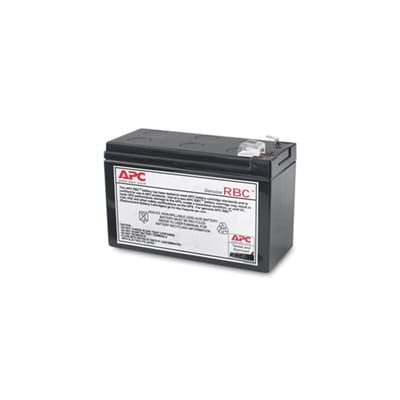

Schneider Electric APC Replacement Battery Cartridge, VRLA battery, 7AH, 12VDC, 2-Year warranty APCRBC110
Schneider Electric

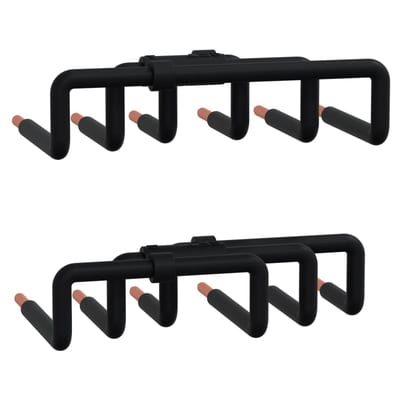

ACC reverseringsett 3P for 09-32 Snap-In
LAD9V21A
Schneider Electric

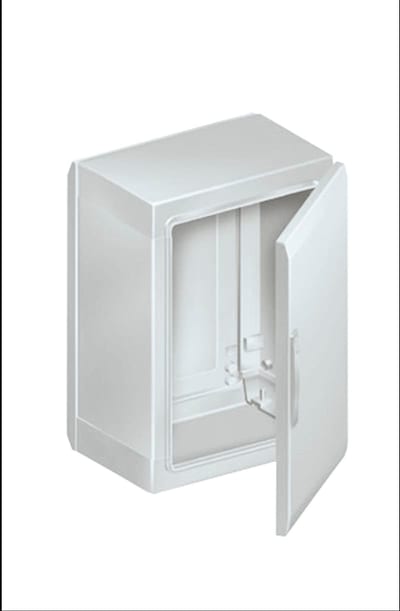

Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1250X750X420 IP65 NSYPLA1274G
Schneider Electric

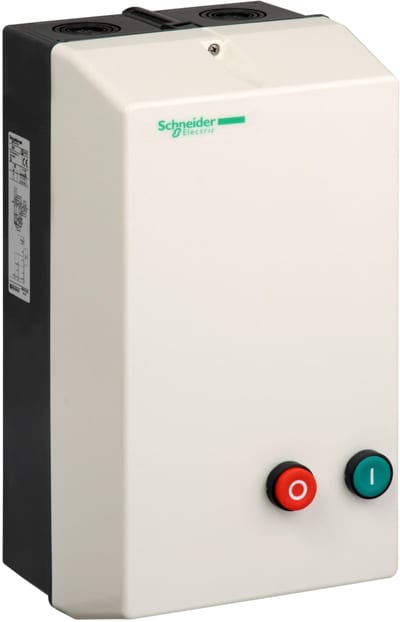

Schneider Electric TeSys LE - enclosed star-delta starter - 12 A - 230 V AC coil LE3D12P7
