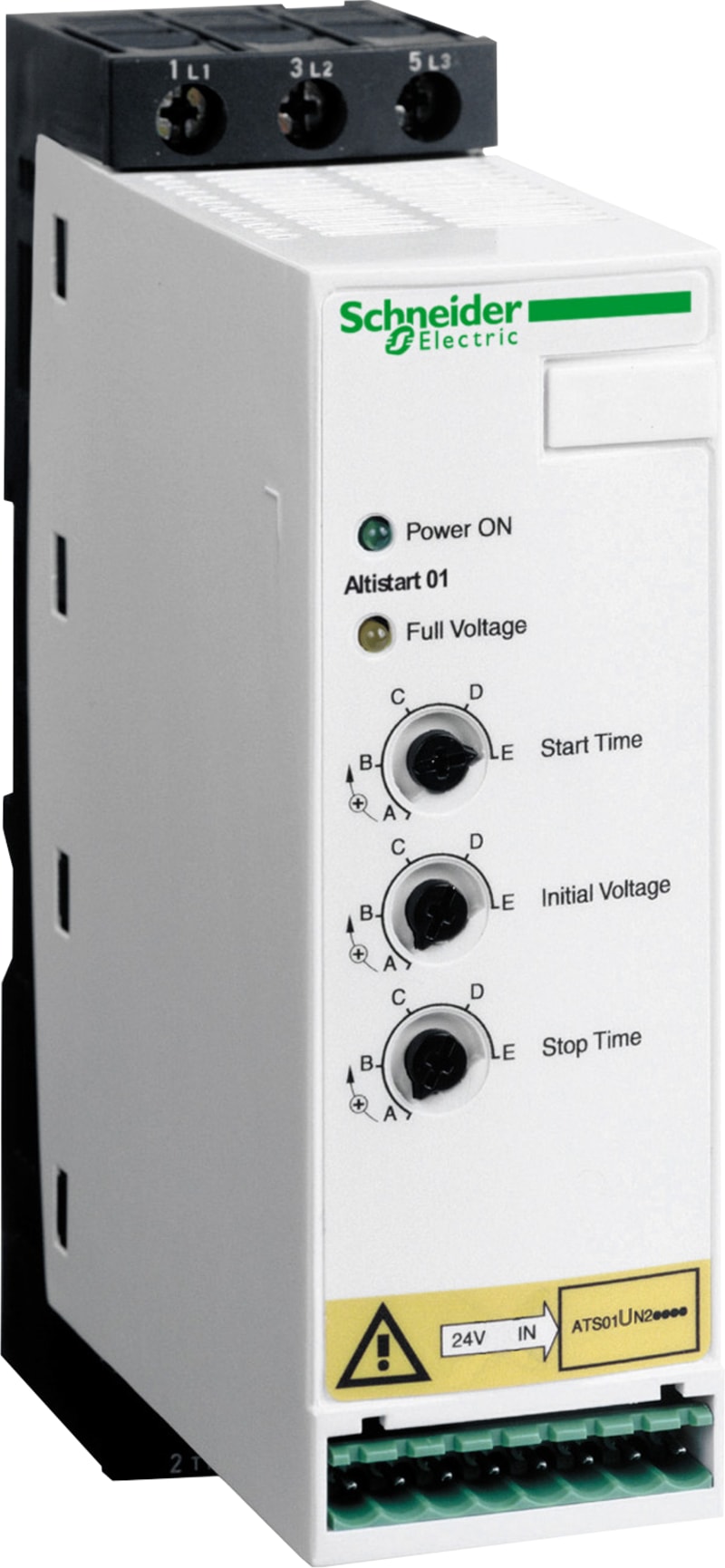

Soft start/stop 9A 440-480V

Schneider Electric ATS01N209RT Soft starter /stop 9A 440-480V.

Manufacturer part number (MPN)

ATS01N209RT EAN / GTIN: 3389110667240 Sales unit: pcs Package quantity: 14 pcs Voltage: 440-480 V Range of product: Altistart 01 Product destination: Asynchronous motors Product or component type: Soft starter Product specific application: Simple machine Device short name: ATS01 Network number of phases: 3 phases [Us] rated supply voltage: 460...480 V - 10...10 % Motor power hp: 5 hp, 3 phases at 460...480 V IcL starter rating: 9 A Utilisation category: AC-53B conforming to EN/IEC 60947-4-2 Current consumption: 45 A at nominal load Type of start: start with voltage ramp Power dissipation in W: 4 W at full load and at end of starting; 94 W in transient state Assembly style: With heat sink Function available: Integrated bypass Supply voltage limits: 414…528 V Supply frequency: 50...60 Hz - 5...5 % Network frequency: 47.5...63 Hz output voltage: <= power supply voltage [Uc] Control circuit voltage: Built into the starter Starting time: 1 s / 100; 5 s / 20; 10 s / 10; Adjustable from 1 to 10 s Deceleration time symb: Adjustable from 1 to 10 s Starting torque: 30...80 % of starting torque of motor connected directly on the line supply Discrete input type: Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm Discrete input voltage: 24...40 V Discrete input logic: Positive LI1, LI2, BOOST at State 0: 13 V, >= 0.5 mA Discrete output current: 2 A DC-13; 3 A AC-15 Discrete output type: Open collector logic LO1 end of starting signal; Relay outputs R1A, R1C NO Discrete output voltage: 24 V (voltage limits: 6...30 V) open collector logic minimum switching current: 10 mA at 6 V DC for relay outputs Maximum switching current: Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load; Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load Display type: 1 LED (green) for starter powered up; 1 LED (yellow) for nominal voltage reached Tightening torque: 1.9…2.5 N.m; 0.5 N.m Electrical connection: 4 mm screw clamp terminal - rigid 1 1...10 mm² 8 AWG power circuit; Screw connector - rigid without cable end 1 0.5...2.5 mm² 14 AWG control circuit; 4 mm screw clamp terminal - rigid 2 1...6 mm² 10 AWG power circuit; Screw connector - rigid 2 0.5...1 mm² 17 AWG control circuit; Screw connector - flexible with cable end 1 0.5...1.5 mm² 16 AWG control circuit; 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² 8 AWG power circuit; Screw connector - flexible without cable end 1 0.5...2.5 mm² 14 AWG control circuit; 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² 10 AWG power circuit; 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² 10 AWG power circuit; Screw connector - flexible without cable end 2 0.5...1.5 mm² 16 AWG control circuit Marking: CE Operating position: Vertical +/- 10 degree Height: 124 mm Width: 45 mm Depth: 131 mm Product weight: 0.42 kg Compatibility code: ATS01N2 Electromagnetic compatibility: Conducted and radiated emissions level B conforming to CISPR 11; Conducted and radiated emissions level B conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-12; Electrostatic discharge level 3 conforming to IEC 61000-4-2; EMC immunity level 3 conforming to EN 50082-1; EMC immunity level B conforming to EN 50082-2; Harmonics level 3 conforming to IEC 1000-3-2; Harmonics level 3 conforming to IEC 1000-3-4; Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11; Voltage/current impulse level 3 conforming to IEC 61000-4-5 Standards: EN/IEC 60947-4-2 Product certifications: CCC; GOST; CSA; UL; C-Tick IP degree of protection: IP20 Pollution degree: 2 conforming to EN/IEC 60947-4-2 Vibration resistance: 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to EN/IEC 60068-2-27 Relative humidity: 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 Ambient air temperature for operation: -10…40 °C (without derating); 40…50 °C (with current derating of 2 % per °C) Ambient air temperature for storage: -25…70 °C conforming to EN/IEC 60947-4-2 Operating altitude: 1000 m with current derating of 2.2 % per additional 100 m Number of Units in Package 1: 1 Number of Units in Package 2: 14 Warranty (in months): 18 Function: Single direction With display: Yes Degree of protection (IP): IP20 Rated operation current Ie at 40 °C Tu: 9 A Rated surrounding temperature without derating: 40 °C Integrated motor overload protection: No Voltage type for actuating: AC/DC Internal bypass: Yes Torque control: No Country of origin: Germany

HS Code

8537.10

• EAN 3389110667240
• SAP 1000068383
• Code 8762538
