Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 1250X1000X320 IP44 NSYPLAT12103G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLAT12103G THLSA RAIN HOOD 7035 1250X1000X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAT12103G
- EAN / GTIN
- 3606480775239
- Sales unit
- pcs
- Dimensions
- 1250×1000×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAT
- Nominal height
- 1250 mm
- Nominal width
- 1000 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 2 door; 2 rear panel; 1 canopy
- Body type
- Open top and sealed bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 2 door(s)
- Door opening side
- Right and left (120 °)
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Accessibility for operation
- Rear; Front; Top
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1250 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 1971 N
- Max. permitted load of the door(s) according to IEC 62208
- 353 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775239
- SAP 1000752493
- Code 8489448
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630HB2, 100KA/690VAC, 3 poles, MicroLogic 1.3M trip unit 500A C63W31M500
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X750X420 IP44 NSYPLAZT1074G
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1250X1250X320 IP44 NSYPLAZT12123G
Schneider Electric
Schneider Electric analogue input module X80 - 4 inputs - Safety BMXSAI0410
Schneider Electric
Schneider Electric Power plug-in relay, 15 A, 4 CO, 120 V AC RPM41F7
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles, MicroLogic 6.2E trip unit 100A C10R46E100
Schneider Electric

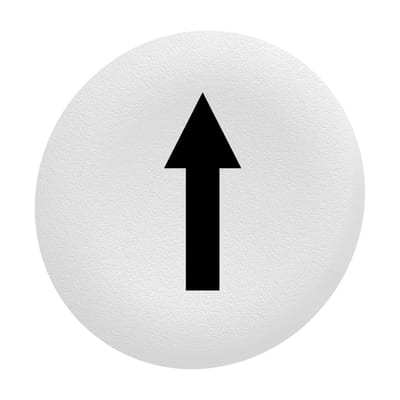

Push Button Cap flush white (ZBAF334)
Schneider Electric

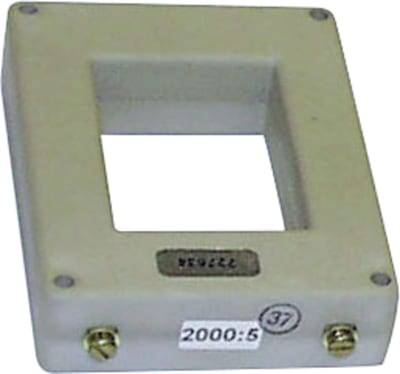

External Transformer (sgr)
