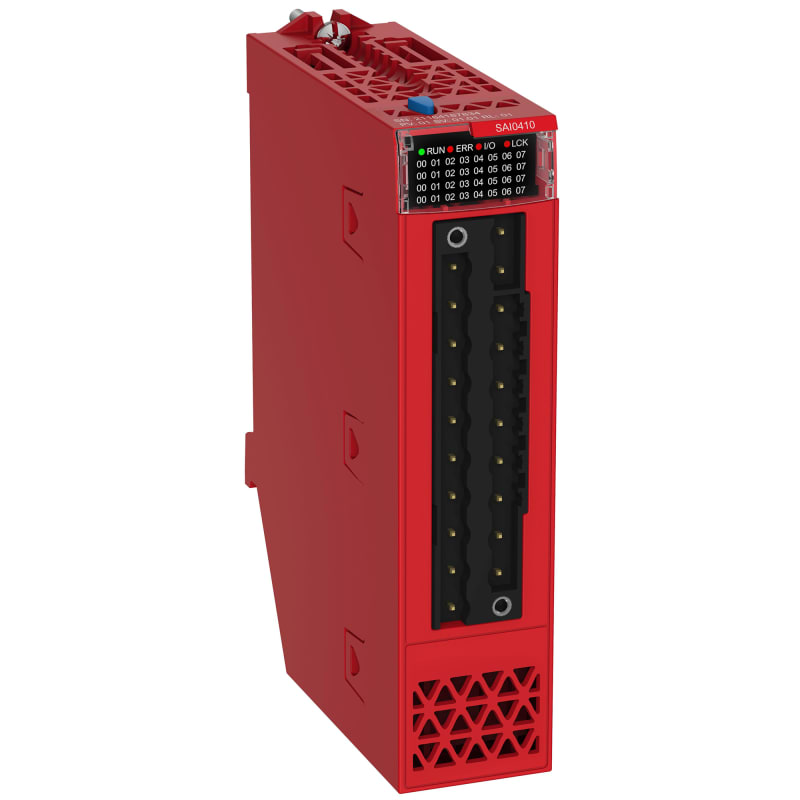

Schneider Electric analogue input module X80 - 4 inputs - Safety BMXSAI0410

Schneider Electric BMXSAI0410 Modicon X80 safety analogue input module with 4 fast isolated 0/4–20 mA inputs, SIL3 / Cat 2 / PLd.

Manufacturer part number (MPN)

BMXSAI0410 EAN / GTIN: 3606481204943 Sales unit: pcs Package quantity: 8 pcs Range of product: Modicon X80 Product or component type: analogue input module Electrical connection: 20 ways 1 connector Isolation between channels: Isolated Input level: High level Analogue input number: 4 Analogue input type: Current 4...20 mA analogue/digital conversion: 16 bits Analogue input resolution: 13 bits; 0...12500 counts Permitted overload on inputs: 25 mA 4...20 mA Input impedance: 286 Ohm Precision of internal conversion resistor: 0.1 % - 15 ppm/°C Type of filter: Second order digital filtering Nominal read cycle time: 6 ms for 4 channels Measurement error: <= 0.3 % of full scale 4...20 mA - 25...60 °C Temperature drift: 30 ppm/°C 4...20 mA Recalibration: Internal minimum crosstalk attenuation: 120 dB digital value format: +/- 32000 in user scale; +/- 10000 by default Isolation voltage: 500 V DC between channels; 1500 V DC between channels and ground; 1500 V DC between channels and bus Measurement resolution: 2 µA 4...20 mA Maximum conversion value: 0...25 mA 4...20 mA MTBF reliability: 463000 H Operating altitude: 0...2000 m; 2000...5000 m with derating factor Status LED: 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O Product weight: 0.143 kg Current consumption: 200 mA at 3.3 V DC; 115 mA at 24 V DC Vibration resistance: 3 gn Shock resistance: 15 gn Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: -25…60 °C Relative humidity: 5…95 % at 55 °C without condensation IP degree of protection: IP20 Product certifications: TÜV; CSA; EAC; RCM; UL; ATEX; Merchant Navy Standards: CSA C22.2 No 61010-2-201; IEC 61131-2; IEC 61010-2-201; UL 61010-2-201 Environmental characteristic: Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 Number of Units in Package 1: 1 Number of Units in Package 2: 8 Country of origin: FR Warranty (in months): 18 Power consumption: 1.3 W Number of analogue inputs: 4 Analogue inputs configurable: Yes Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: Yes Resolution of the analogue inputs: 16 Bit Output, current: No Output, voltage: No Output signal configurable: No Type of electric connection: Plug-in connection Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): Yes Explosion safety category for gas: ATEX gas-ex-protection, Cat. 1G Explosion safety category for dust: ATEX dust-ex-protection, Cat. 1D Width: 32 mm Height: 100 mm Depth: 160 mm

HS Code

8538.90
