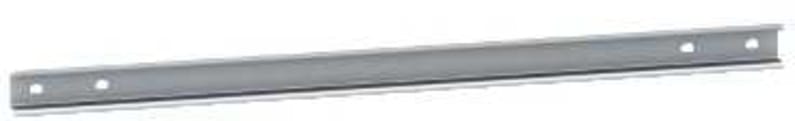

Schneider Electric One symmetric mounting rail 35X15 L800MM type A Supply: 20 NSYSDR80A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDR80A S.DIN rail15x35 WM 800mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDR80A
- EAN / GTIN
- 3606480184390
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Rail
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX; PanelSeT SD
- Device composition
- fixing elements; 1 rail
- Quantity per set
- Set of 20
- Material
- Zinc coated steel
- Surface finish
- Zinc coated
- Fixing mode
- By fixing element - structure of enclosure location
- Adjustment
- Pitch 25 mm; Continuous adjustment
- Length
- Nominal: 800 mm; Real: 750 mm
- Height
- Nominal: 15 mm
- Width
- Nominal: 35 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 200
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- DIN rail (top hat rail) 35/15 mm
- Material thickness
- 1.5 mm
- Punch shape
- Round hole
- Drill hole distance centrically
- 725 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480184390
- SAP 1000470705
- Code 8787768
Product Documentation
