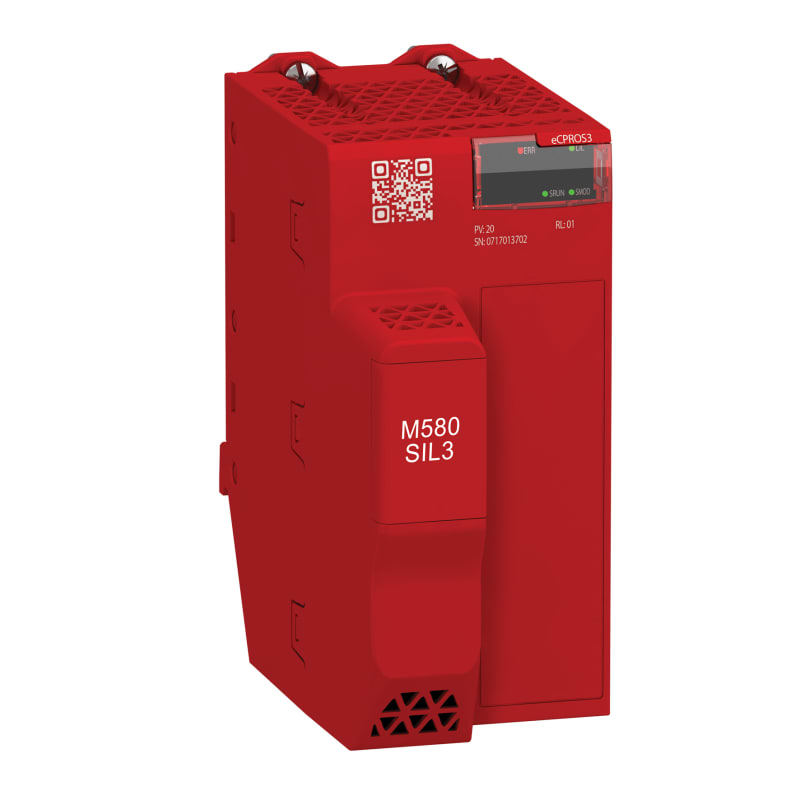

Schneider Electric Processor module, Modicon M580, CoProcessor Safety BMEP58CPROS3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMEP58CPROS3 M580 co-processeur SIL3.
Technical Specifications
- Manufacturer part number (MPN)
- BMEP58CPROS3
- EAN / GTIN
- 3606489486488
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range of product
- Modicon M580
- Product or component type
- Processor module
- Current consumption
- 295 mA at 24 V DC
- MTBF reliability
- 946000 H
- Marking
- CE
- Vibration resistance
- 3 gn
- Shock resistance
- 15 gn
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Operating altitude
- 0...2000 m; 2000...5000 m with derating factor
- Relative humidity
- 5…95 % at 55 °C without condensation
- IP degree of protection
- IP20
- Directives
- 2014/30/EU - electromagnetic compatibility; 2006/42/EC - machinery; 2014/34/EU - ATEX directive
- Product certifications
- CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22; TÜV
- Standards
- IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G; IEC 60079-0
- Environmental characteristic
- Hazardous location class I division 2; Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
- Protective treatment
- Conformal coating
- Safety level
- SIL 3; PL = e
- Supply
- Internal power supply via rack
- Status LED
- 1 LED (green) processor running (RUN); 1 LED (red) processor or system fault (ERR); 1 LED (green) download in progress (DL); 1 LED (green) processor in safety mode (SRUN); 1 LED (green) processor in maintenance mode (SMOD)
- Product weight
- 0.849 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 64.6 mm
- Model
- Modular
- Height
- 134.6 mm
- Depth
- 130.3 mm
- Number of digital inputs
- 4096
- Number of digital outputs
- 4096
- Number of analogue inputs
- 1024
- Number of analogue outputs
- 1024
- Voltage type (supply voltage)
- AC/DC
- Type of memory
- NVRAM
- Memory size
- 18000 kByte
- Processing time (1K, binary operation)
- 0.01 ms
- Max. number of addressable analogue I/O-ports
- 1024
- Max. number of addressable digital I/O-ports
- 4096
- Number of HW-interfaces industrial Ethernet
- 3
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 64
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 3D
- Performance level according to EN ISO 13849-1
- None
- Long-Term Evolution (LTE)
- No
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606489486488
- SAP 1200289477
- Code 82265180
