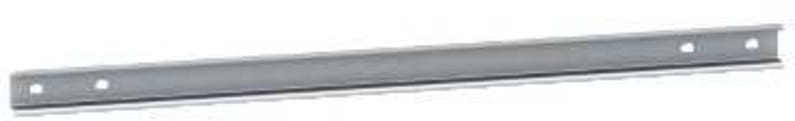

Schneider Electric One symmetric mounting rail 35X15 L1000MM type A Supply: 20 NSYSDR100A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDR100A DIN rail 15x35 WM 1000mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDR100A
- EAN / GTIN
- 3606480184307
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Rail
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Range compatibility
- PanelSeT CRN; PanelSeT S3D; PanelSeT PLM
- Device composition
- fixing elements; 1 rail
- Quantity per set
- Set of 20
- Material
- Zinc coated steel
- Surface finish
- Zinc coated
- Fixing mode
- By fixing element - structure of enclosure location
- Adjustment
- Continuous adjustment; Pitch 25 mm
- Length
- Nominal: 1000 mm; Real: 950 mm
- Height
- Nominal: 15 mm
- Width
- Nominal: 35 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 1.100 cm
- Package 1 Length
- 95.000 cm
- Package 1 Weight
- 656.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 4.000 cm
- Package 2 Width
- 11.000 cm
- Package 2 Length
- 95.000 cm
- Package 2 Weight
- 6.560 kg
- Unit Type of Package 3
- PAL
- Number of Units in Package 3
- 100
- Package 3 Height
- 29.000 cm
- Package 3 Width
- 37.500 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 65.600 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- DIN rail (top hat rail) 35/15 mm
- Material thickness
- 1.5 mm
- Punch shape
- Round hole
- Drill hole distance centrically
- 925 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480184307
- SAP 1000470706
- Code 8787781
Product Documentation
More from Schneider Electric
Schneider Electric
WALL-Mount Cabinet WITH WINDOW. 5X3X2
NSYS3D5320T
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC ATS480D88Y
Schneider Electric
Busbar Linergy BW 160A 3P L1400 G/P
LVS04116
Schneider Electric
Schneider Electric long rear connections, ComPact NSX, EasyPact CVS, 630 A, set of 2 parts LV432476
Schneider Electric
EKST. size.TRANSFORMER FOR N + GFCI
34036
Schneider Electric
Schneider Electric power relay plug-in - Harmony RPF - 2 NO - 230 V AC - 30 A RPF2AP7
Schneider Electric
Connection bolt and nut NSXm 4 pcs
LV426961
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles, MicroLogic 5.2E trip unit 40A C10R45E040
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSDR100A?
- NSYSDR100A can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSDR100A.
- What is the HS code for NSYSDR100A?
- The customs tariff (HS) code for NSYSDR100A is 7326.90.
- Who manufactures NSYSDR100A?
- NSYSDR100A is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for NSYSDR100A?
- Yes — the NSYSDR100A datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSDR100A?
- The minimum order quantity is 1.
- Is NSYSDR100A available?
- Yes — NSYSDR100A is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
