WALL-Mount Cabinet WITH WINDOW. 5X3X2
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D5320T Wall-mount cabinet With Window. 5X3X2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D5320T
- EAN / GTIN
- 3606480159466
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 500 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; DNV; UL; GL; cUL
- Product weight
- 7.68 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24.500 cm
- Package 1 Width
- 32.000 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 7.110 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 22
- Package 2 Height
- 118.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 171.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 300 mm
- Height
- 500 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159466
- SAP 1000089601
- Code 8914840
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC ATS480D88Y
Schneider Electric

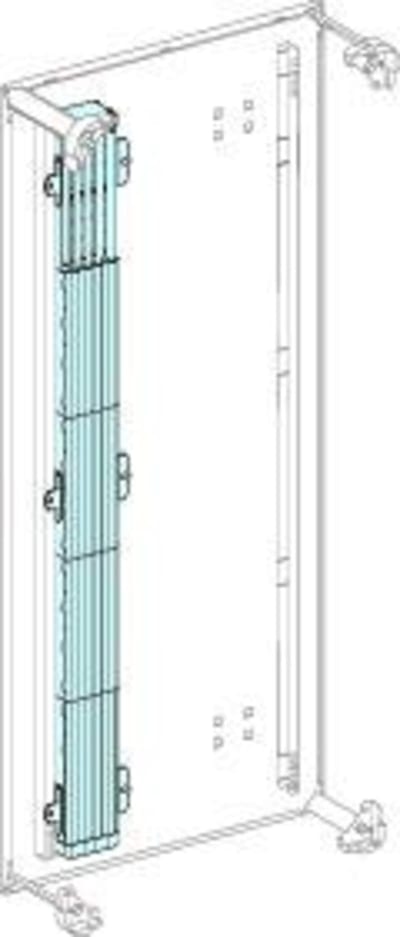

Busbar Linergy BW 160A 3P L1400 G/P
LVS04116
Schneider Electric

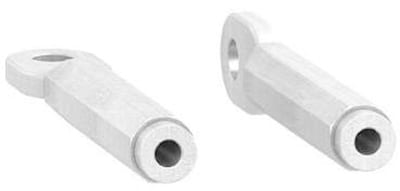

Schneider Electric long rear connections, ComPact NSX, EasyPact CVS, 630 A, set of 2 parts LV432476
Schneider Electric

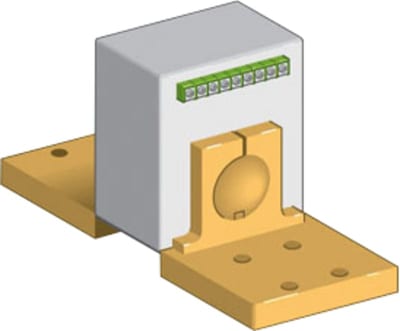

EKST. size.TRANSFORMER FOR N + GFCI
34036
Schneider Electric

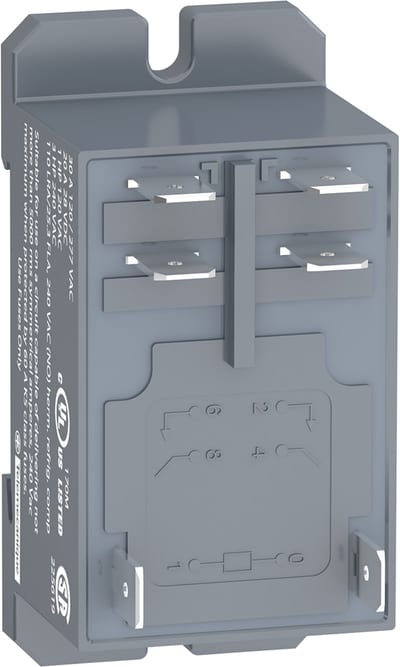

Schneider Electric power relay plug-in - Harmony RPF - 2 NO - 230 V AC - 30 A RPF2AP7
Schneider Electric
Connection bolt and nut NSXm 4 pcs
LV426961
Schneider Electric

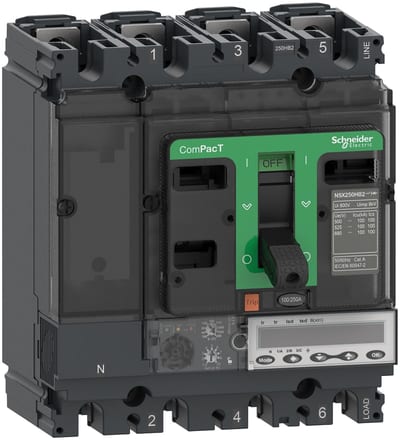

Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 4 poles, MicroLogic 5.2E trip unit 40A C10R45E040
