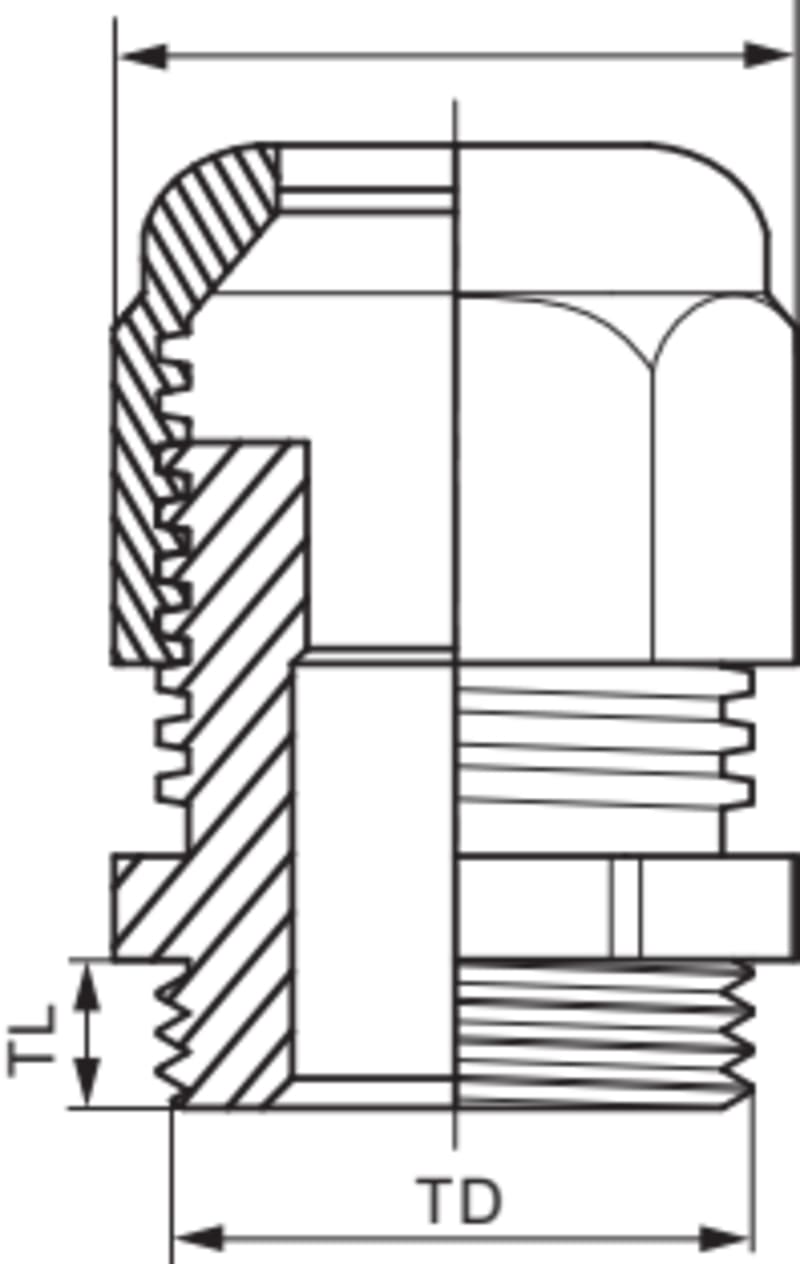

Schneider Electric Thorsman Glands - cable gland - grey - M25 - diameter 11 to 17 ISM71504
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM71504 Thorsman Nipple, M25, 11-17mm, grey.
Technical Specifications
- Manufacturer part number (MPN)
- ISM71504
- EAN / GTIN
- 3606480077210
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP68
- Thread size
- M25
- product range
- Thorsman Glands
- product type
- Cable gland
- colour
- Grey (RAL 7035)
- quantity per package
- Set of 10
- Material
- PA6
- ISO thread
- M25
- Cable outer diameter
- 11…17 mm
- IP-Class
- IP68
- operating temperature
- -30…80 °C permanently; -30…150 °C intermittently
- Warranty (in months)
- 18
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 25
- Thread length
- 9 mm
- Wrench width
- 25 mm
- Hexagon angular dimension
- 17.5 mm
- Suitable for cable diameter
- 11–17 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- Yes
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- Yes
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Membrane
- Separable screw gland
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480077210
- SAP 1000488746
- Code 8803810
Product Documentation
More from Schneider Electric
Schneider Electric
Telequick cover cable trunking, grey (AK2CD125)
Schneider Electric
Schneider Electric XPSMCMCO0000PB Profibus DP Diagnostics Expansion Module Screw Term
Schneider Electric

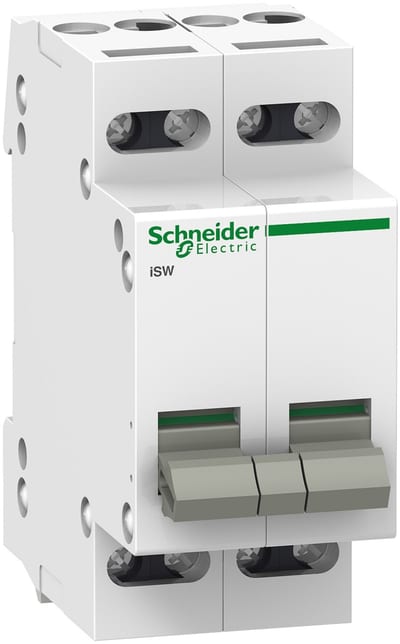

Schneider Electric switch ACTI9 iSW - 4 poles - 20 A - 415V A9S60420
